- Product Details
- {{item.text}}
Quick Details
-
Blade Length (mm):
-
150 mm
-
Backgauge Travel (mm):
-
20 - 600 mm
-
Throat Depth (mm):
-
150 mm
-
Brand Name:
-
rbqltry
-
Power (kW):
-
7.5 kW
-
Weight (KG):
-
5800 KG
-
Place of Origin:
-
Anhui, China
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
4620*1850*1700
-
Marketing Type:
-
Hot Product
-
Warranty of core components:
-
24 months
-
Rated Power:
-
7.5
-
CNC System:
-
E21S
-
Name:
-
hydraulic guillotine shears
-
Function:
-
metal hydraulic guillotine shears
-
Hydraulic System:
-
QC11Y hydraulic sheet metal guillotine
-
Cutting thickness:
-
4-25mm
-
Electrical components:
-
CHNT
-
Color:
-
White
-
Seal Ring:
-
Japan NOK
-
Ball Screw/ Liner Guide:
-
HIWIN
Quick Details
-
Max. Cutting Width (mm):
-
4000 mm
-
Max. Cutting Thickness (mm):
-
25 mm
-
Shearing Angle:
-
1.5
-
Blade Length (mm):
-
150 mm
-
Backgauge Travel (mm):
-
20 - 600 mm
-
Throat Depth (mm):
-
150 mm
-
Brand Name:
-
rbqltry
-
Power (kW):
-
7.5 kW
-
Weight (KG):
-
5800 KG
-
Place of Origin:
-
Anhui, China
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
4620*1850*1700
-
Marketing Type:
-
Hot Product
-
Warranty of core components:
-
24 months
-
Rated Power:
-
7.5
-
CNC System:
-
E21S
-
Name:
-
hydraulic guillotine shears
-
Function:
-
metal hydraulic guillotine shears
-
Hydraulic System:
-
QC11Y hydraulic sheet metal guillotine
-
Cutting thickness:
-
4-25mm
-
Electrical components:
-
CHNT
-
Color:
-
White
-
Seal Ring:
-
Japan NOK
-
Ball Screw/ Liner Guide:
-
HIWIN
Product Description

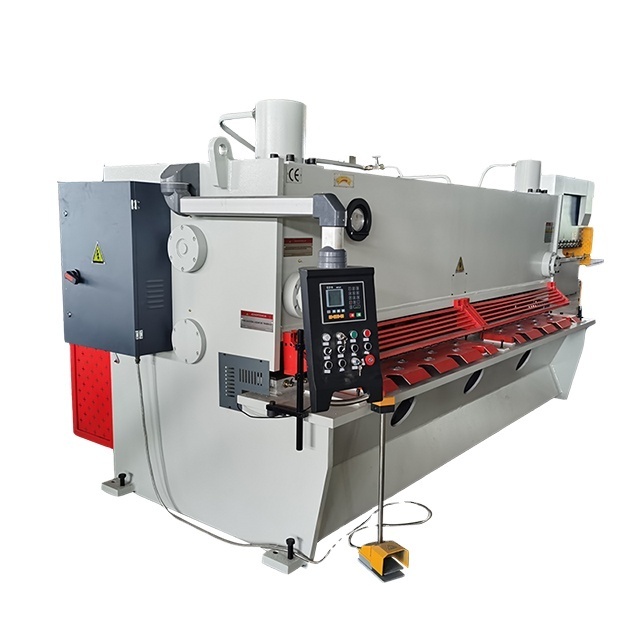

E21s cnc guillotine shearing cutting machine for sale
Guillotine Parameters
Great choice for thick plate more than 6mm
E21s system features
■ HD LCD display, with both Chinese and English language options
■ Backgauge control:Smart positioning, can also be manually adjusted by hand positioning device.
■ Cut Stroke: Built-in shearing time relay
■ Shear angle: Built-in shear angle adjustment function, eliminating the angle indicators and buttons
■ Blade gap: encoder feedback, time display blade gap size
■ Having a key parameter backup and restore function
■ All keys on the panel are micro-switches.
■ HD LCD display, with both Chinese and English language options
■ Backgauge control:Smart positioning, can also be manually adjusted by hand positioning device.
■ Cut Stroke: Built-in shearing time relay
■ Shear angle: Built-in shear angle adjustment function, eliminating the angle indicators and buttons
■ Blade gap: encoder feedback, time display blade gap size
■ Having a key parameter backup and restore function
■ All keys on the panel are micro-switches.
Detailed Images
Optional Systems
DAC360
System
E200PS System
E21S Dual Servo System
Lead time
15 to 40 days
Payment Method
30% T/T in advance, the balance paid before shipping
irrevocable L/C at sight
FAQ
Q:How to choose a shearing machine?
A:Please tell us the following information in detail:
- Material of plate:
-Max thickness:
-Max plate width:
-If possible: you can specify the model;
Q:Where is your factory? How can I get there?
A:You can fly to NanJing LuKou airport directly, we will pick you up in the airport. All our customers, both inland and abroad,
warmly welcome to visit us!
Q:How do you ensure quality in the factory?
A:Quality culture.:We always attach great importance to quality control from the beginning to the end. Our factory has obtained
ISO, CE certification.
Q:How can I pay?
A:You can pay by T/T, Western Union, MoneyGram, Paypal; 30% deposit; pay off the 70% balance before shipment.
A:Please tell us the following information in detail:
- Material of plate:
-Max thickness:
-Max plate width:
-If possible: you can specify the model;
Q:Where is your factory? How can I get there?
A:You can fly to NanJing LuKou airport directly, we will pick you up in the airport. All our customers, both inland and abroad,
warmly welcome to visit us!
Q:How do you ensure quality in the factory?
A:Quality culture.:We always attach great importance to quality control from the beginning to the end. Our factory has obtained
ISO, CE certification.
Q:How can I pay?
A:You can pay by T/T, Western Union, MoneyGram, Paypal; 30% deposit; pay off the 70% balance before shipment.
Q: How long to produce?
A: Delivery time:15-35 days.
