- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
N3K-C3232C
-
Model Number:
-
N3K-C3232C
-
Place of Origin:
-
Henan, China
-
Product Name:
-
N3K-C3232C
-
Model:
-
N3K-C3232C
-
Device Type:
-
Hardware Switch
-
Interfaces:
-
32 port 100g
-
Uplink configuration:
-
Modular uplink options
-
Dimensions (W x D x H):
-
26.53X43.94X41.4 cm
-
Payment:
-
T/T
-
Features:
-
Redundant Power System (RPS) connector
-
Warranty:
-
1year
-
type:
-
Ethernet Switch
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
6.4-Tbps
-
Brand Name:
-
N3K-C3232C
-
Model Number:
-
N3K-C3232C
-
Place of Origin:
-
Henan, China
-
Product Name:
-
N3K-C3232C
-
Model:
-
N3K-C3232C
-
Device Type:
-
Hardware Switch
-
Interfaces:
-
32 port 100g
-
Uplink configuration:
-
Modular uplink options
-
Dimensions (W x D x H):
-
26.53X43.94X41.4 cm
-
Payment:
-
T/T
-
Features:
-
Redundant Power System (RPS) connector
-
Warranty:
-
1year
-
type:
-
Ethernet Switch

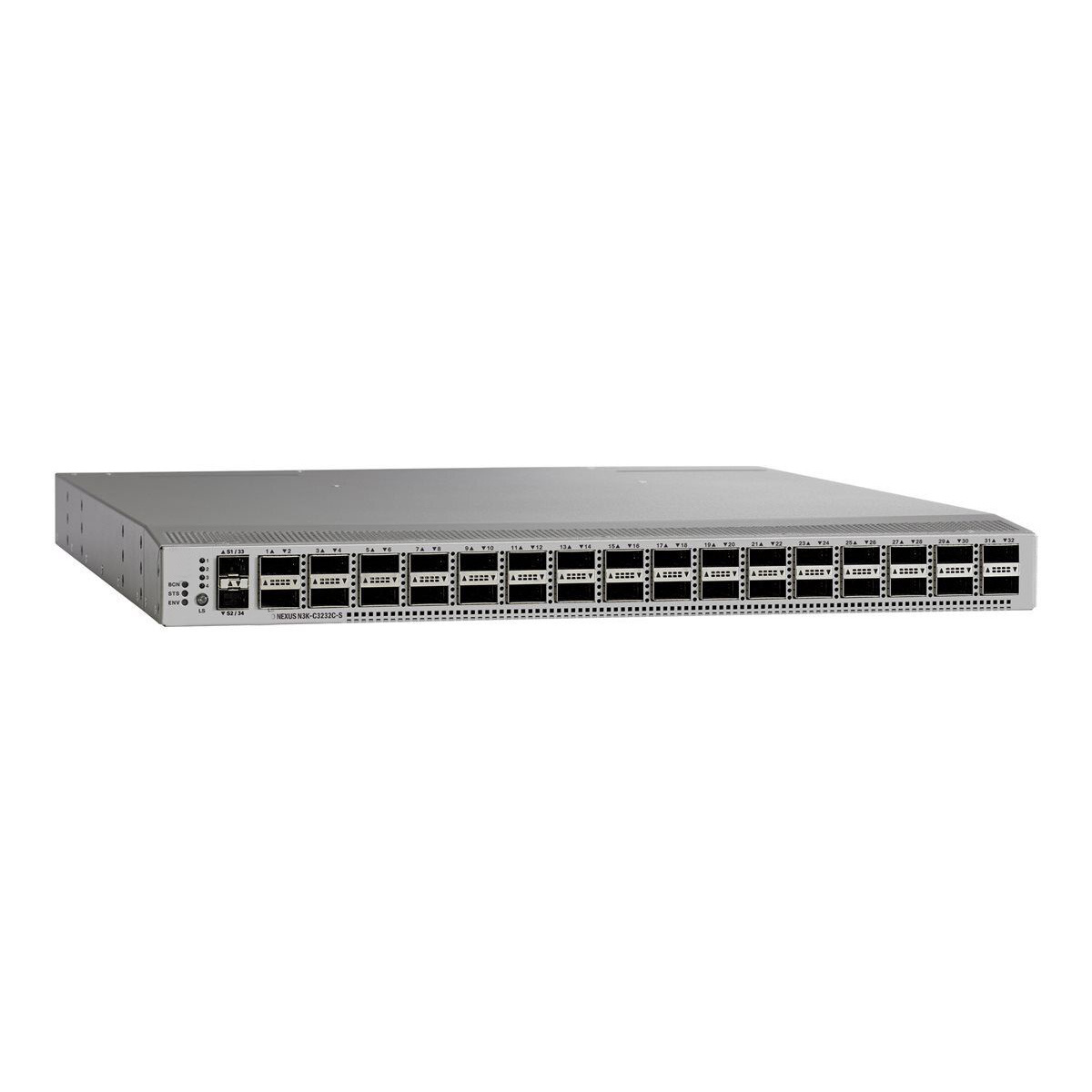

Products Description
|
Product Code
|
N3K-C3232C
|
|
|
|
Physical
|
· 1RU fixed form-factor switch
· 32 QSFP28 ports; each supports native 100 Gigabit Ethernet and 4 x 25 Gigabit Ethernet modes · 2 redundant power supplies · 4 redundant (3+1) fans · Management, console, and USB flash-memory ports |
|
|
|
Performance
|
· 6.4-Tbps switching capacity
· Forwarding rate of up to 3.3 bpps · Line-rate traffic throughput (both Layer 2 and 3) on all ports · Configurable maximum transmission unit (MTU) of up to 9216 bytes (jumbo frames) |
|
|
|
Physical dimensions
(H x W x D) |
1.72 x 17.3 x 22.4 in. (4.4 x 43.9 x 56.8 cm)
|
|
|
|
Weight
|
22.2 lb (10.06 kg)
|
|
|
|
Table 2 shows the supported accessories.
|
|
|
|
|
Model
|
Description
|
|
|
|
NXA-FAN-30CFM-F
|
Nexus 9300 Fan, Forward airflow (Port-side Exhaust)
|
|
|
|
NXA-FAN-30CFM-B
|
Nexus 9300 Reverse airflow (Port-side Intake)
|
|
|
|
NXA-PAC-650W-PI
|
Nexus 9300 650W AC PS, Port-side Intake
|
|
|
|
NXA-PAC-650W-PE
|
Nexus 9300 650W AC PS, Port-side Exhaust
|
|
|
|
L-N3K-LAN1K9=
|
Nexus 3000 LAN Enterprise License, eDelivery
|
|
|
|
Table 3 shows the comparison.
|
|
|
|
|
Product Code
|
N3K-C3232C
|
N3K-C3264Q
|
|
|
Ports
|
32 QSFP28 ports; each supports native 100 Gigabit Ethernet and 4 x 25 Gigabit Ethernet modes
|
64 QSFP+ ports; each supports native 40 Gigabit Ethernet
|
|
|
Physical dimensions
|
1.72 x 17.3 x 22.4 in. (4.4 x 43.9 x 56.8 cm)
|
3.39 x 17.41 x 22.32 in. (88.4 x 442 x 566 mm)
|
|
|
(H x W x D)
|
|
|
|
|
Weight
|
22.2 lb (10.06 kg)
|
32.8 lb (14.9 kg)
|
|
