Quick Details
-
Brand Name:
-
SURETRON
-
Model Number:
-
KVF-KIF-10W-600W
-
Output Frequency:
-
47~63HZ
-
Name:
-
dimmable driver led triac constant voltage phase dimming led drivers
-

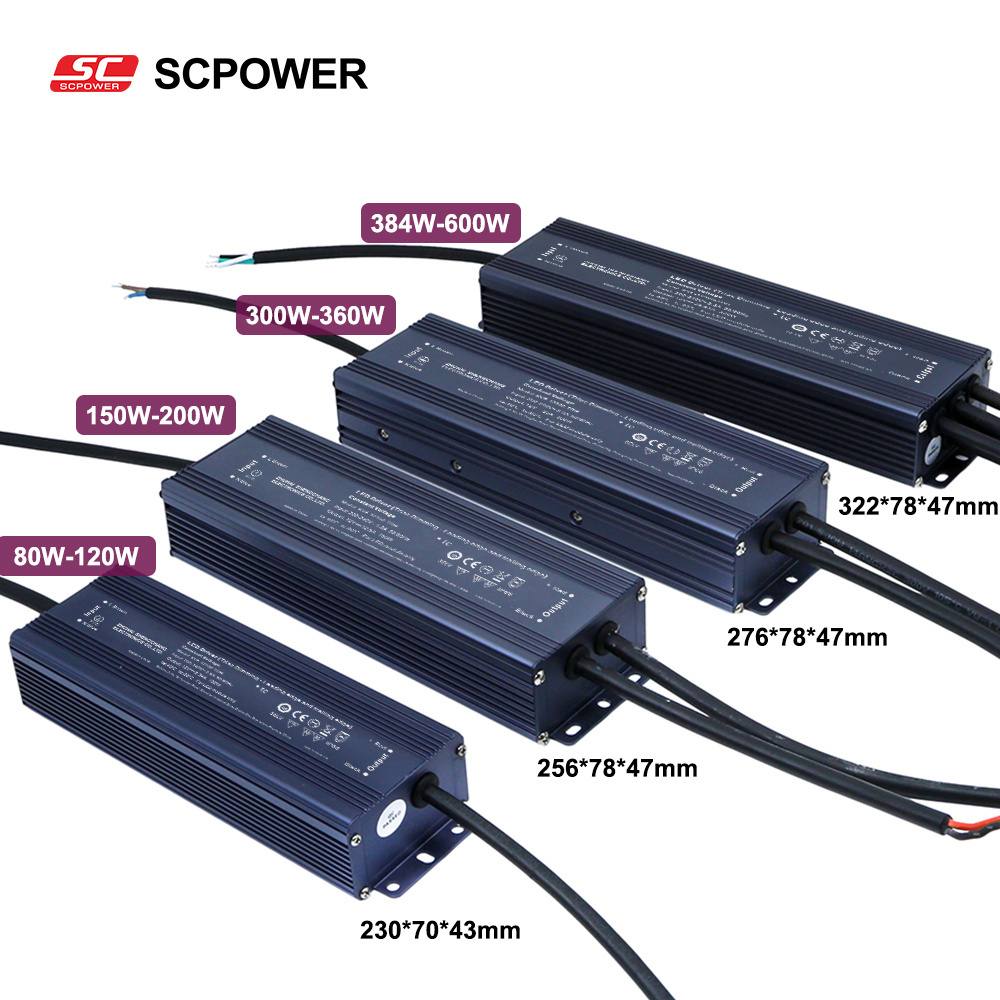

Size:
-
322*78*47mm
-
Warranty:
-
5 years
-
Certificate:
-
UL cUL FCC Class2 TUV-CE CB SAA RoHS
-
Waterproof:
-
IP66
-
PFC:
-
0.96
-
Efficiency:
-
94%
-
Price:
-
EXW
-
Outer housing:
-
aluminium housing
-
Luminous Efficacy(lm/w):
-
100
Quick Details
-
Warranty(Year):
-
5-Year
-
Product Weight（kg）:
-
2
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SURETRON
-
Model Number:
-
KVF-KIF-10W-600W
-
Output Frequency:
-
47~63HZ
-
Name:
-
dimmable driver led triac constant voltage phase dimming led drivers
-
Size:
-
322*78*47mm
-
Warranty:
-
5 years
-
Certificate:
-
UL cUL FCC Class2 TUV-CE CB SAA RoHS
-
Waterproof:
-
IP66
-
PFC:
-
0.96
-
Efficiency:
-
94%
-
Price:
-
EXW
-
Outer housing:
-
aluminium housing
-
Luminous Efficacy(lm/w):
-
100
5 years warranty triac dimmable led power supply 30w 50w 100w 150w 200w 300w 600w dc 48v 36v 24v 12v led driver for led light
|
Model |
KV F -125 00 -TD W |
KV F - 24600 -TD W |
KV F -36 600 -TD W |
KV F - 48600 -TD W |
|
|
O utput |
DC Voltage |
12V |
24 V |
36V |
48 V |
|
Rated C urrent |
41.67A |
25 A |
16.67A |
12.5 A |
|
|
Rated P ower |
500 W |
600W | |||
|
Voltage Tolerance |
±0.5V |
||||
|
Voltage Regulation |
± 0.5% |
||||
|
Load Regulation |
± 1% |
||||
|
I nput |
Voltage Range |
100 -277 VAC |
|||
|
Frequency Range |
47-63 H z |
||||
|
Power Factor( Typ. ) @ full load |
0. 99@120VAC 0. 96@277VAC |
0. 98@120VAC 0. 96@277VAC |
|||
|
THD (Typ.) @ full load |
< 20% |
||||
|
Efficiency( Typ. ) @ full load |
88 % |
90 % |
|||
|
AC Current( Max .) |
1.5 A @100VAC |
||||
|
Inrush Current (Typ.) |
20A, 50%, 1.6ms |
||||
|
Leakage current |
<0. 5 0mA |
||||
|
Protection |
Short Circuit |
shut down o/p voltage , re-power on to recover after fault condition is remove d |
|||
|
Over Loading |
≤120% constant current limiting, auto-recovery |
||||
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling. |
||||
|
Environment |
Working TEMP. |
-40~ + 6 0℃ (see below derating curve) |
|||
|
Working Humidity |
20~ 90%RH, non-condensing |
||||
|
Storage TEMP. Humidity |
-40~ +80℃ , 10 ~ 95%RH |
||||
|
TEMP .coefficient |
±0.03%/℃ ( 0 ~ 50℃ ) |
||||
|
Vibration |
10~ 500Hz , 5 G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
||||
|
Safety& EMC |
Safety standards |
UL 8750 |
|||
|
Withstand voltage |
I/P-O/P: 1.88 K Vac |
||||
|
Isolation resistance |
I/P-O/P : 100MΩ/500VDC/25℃/70%RH |
||||
|
EMC EMISSION |
FCC Part 15 B |
||||
