Quick Details
-
Power:
-
11KW
-
Weight:
-
360 KG
-
Dimension(L*W*H):
-
2000*500*1100mm
-
Application:
-
Grain Milling
-
Raw material:
-
Wheat Maize Corn
-
Feature:
-
cleaning, peeling, removing corn germ...
-
Product:
-
corn grits in 22 different sizes
-
Advantage:
-
High Quantity
-
Processing:
-
Full-automatic Milling Machine
-
Motor:
-
Electric Type
-
Package:
-
Wooden Case
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
Italy
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Shiningall
-
Voltage:
-
Three-phase alternating current
-
Power:
-
11KW
-
Weight:
-
360 KG
-
Dimension(L*W*H):
-
2000*500*1100mm
-
Application:
-
Grain Milling
-
Raw material:
-
Wheat Maize Corn
-
Feature:
-
cleaning, peeling, removing corn germ...
-
Product:
-
corn grits in 22 different sizes
-
Advantage:
-
High Quantity
-
Processing:
-
Full-automatic Milling Machine
-
Motor:
-
Electric Type
-
Package:
-
Wooden Case
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
Italy
Products Description

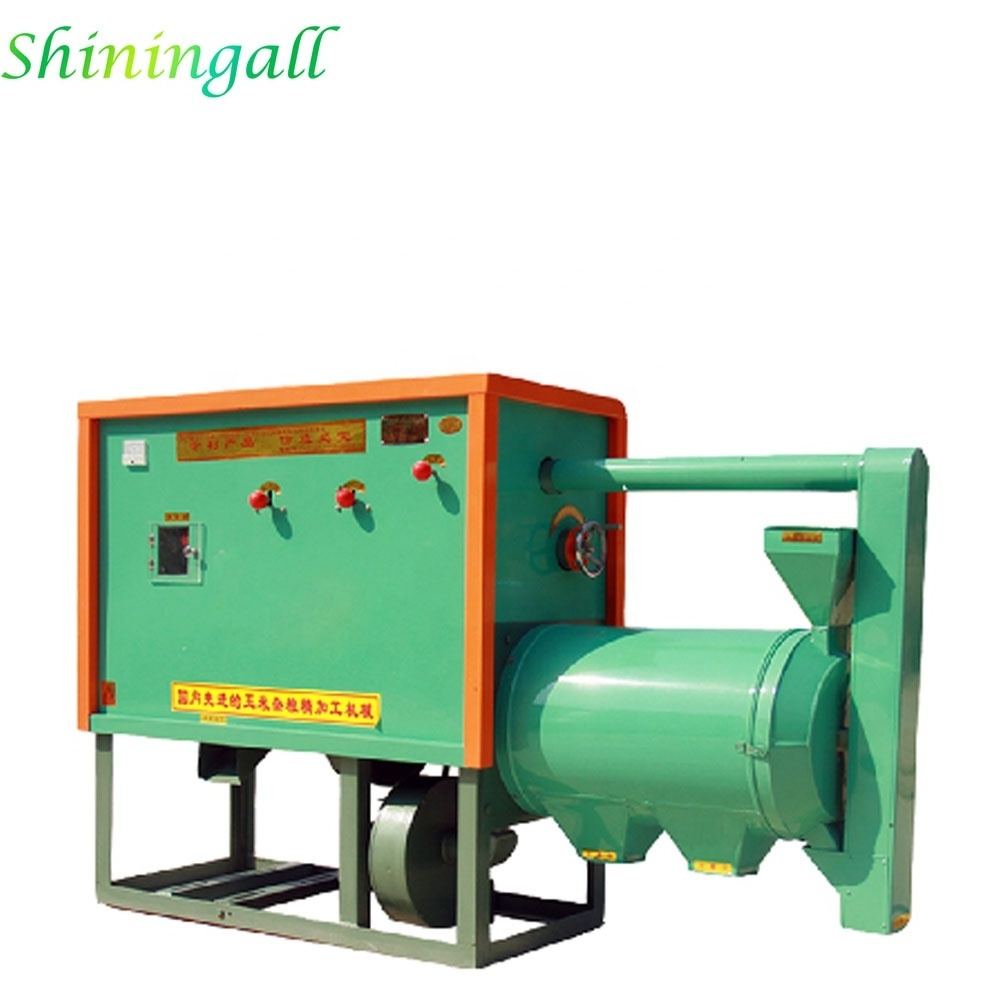

22 Different Sizes Grits Corn Mill Machine
Our Patented Products
Two Machine Body Options
Metal Plate Machine Body 6FW-D1
Powder Coat Machine Body 6FW-PD1
Main features
√.Compact structure, simple operation, sturdiness and durability, and can be used for
dry and wet.
√.
One time
finish cleaning, peeling, germ removal, root and hilum removal, crushing, grit milling, grading, polishing and intensive select.
√.
A high-efficiency small-scale combined corn processing equipment that integrates corn peeling and polishing, grits making, flour milling, finished product grading, and winnowing.
√.It's our unique and patented machine with unique peeling and milling technology.
(1)High-quality finished product
√.Removing corn skin, corn germ, root and black hilum, final output is in consistent color
without any black dot
.
√.And the corn grits comes from the hard or horny Endosperm, corn flour comes from the soft or floury Endosperm.
(2) Reliable working performance
You can adjust the machine to control the producing volume of each exit. To get more flour or more grits is up to you.
√.There are 22 gears that help the machine could process the corn seeds into
22 different sizes
.
|
Machine Parameters of Different Models
|
|
|
|
|
|
|||||
|
Model
|
6FW-C1
|
6FW-C2/PC2
|
6FW-D1/PD1
|
6FW-H/PH
|
6FW-D2/PD2
|
|||||
|
Raw material
|
Corn, rice, wheat, barley, sorghumand so on
|
|
|
|
|
|||||
|
capacity
|
100~200KG/H
|
150~250KG/H
|
300~350KG/H
|
350~400KG/H
|
400~500KG/H
|
|||||
|
Motor power
|
7.5KW
|
7.5KW
|
11KW
|
11KW
|
15KW
|
|||||
|
Net weight
|
About 310KG
|
About 280KG
|
About 360KG
|
About 300KG
|
About 400KG
|
|||||
|
Dimension
(mm)
|
1260*740*1290
|
1800*500*1100
|
2000*500*1100
|
2200*600*1300
|
2500*1200*2500
|
|||||
