Quick Details
-
Brand Name:
-
FENGYU
-
Model Number:
-
OPTIMASS 1300
-
Fluid temperature:
-
+60 °C (140 °F)
-
Flow measurement:
-
4700 dm3/min (1250 gal/min)
-
minimum conductivity:
-
≥50 μS/cm
-
Drinking water approvals:
-
KTW/W270, WRAS BS 6920
Quick Details
-
Type:
-
Variable Area Water Flowmeters, Variable Area Air & Gas Flowmeters, Variable Area Oil Flowmeters
-
Warranty:
-
1year
-
Place of Origin:
-
Germany
-
Brand Name:
-
FENGYU
-
Model Number:
-
OPTIMASS 1300
-
Fluid temperature:
-
+60 °C (140 °F)
-
Flow measurement:
-
4700 dm3/min (1250 gal/min)
-
minimum conductivity:
-
≥50 μS/cm
-
Drinking water approvals:
-
KTW/W270, WRAS BS 6920

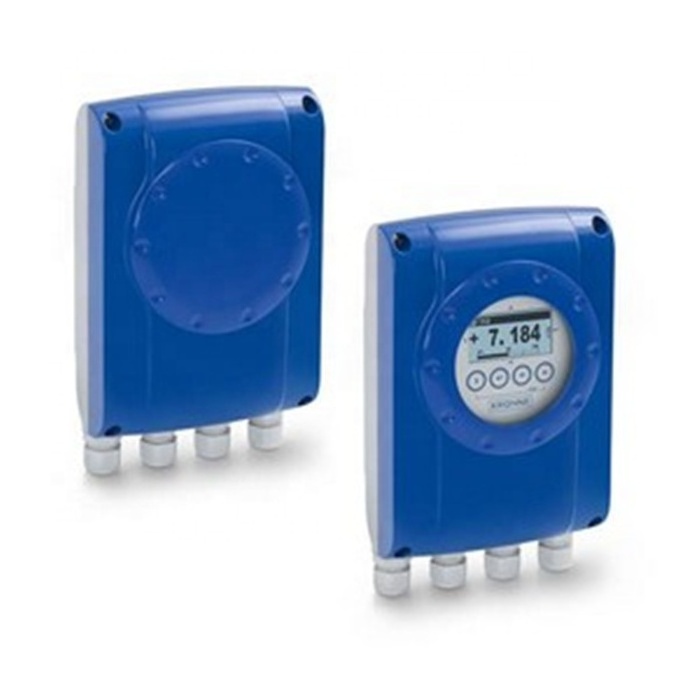

Krohne Electromagnetic flow meter IFC 050 FOR water sewage
IFC050 is an electromagnetic signal converter used to measure the velocity, conductivity, volume flow and mass flow of conductive media.
The signal converter can be combined with any measurement sensor, which makes it very widely used. In the case form provided, there is a body type, which can be selected in two angles of 0 degrees or 45 degrees when it is connected to the measurement sensor.
If the measuring point is difficult to access or environmental conditions restrict the use of a body type, the signal converter is optionally available in a wall-mounted housing.
IFC 050 is suitable for high-technology applications that require an economical solution.
Sewage treatment electromagnetic flowmeter OPTIFLUX2050 This model is also an economical flowmeter with RS485 communication
Krohne Electromagnetic flow meter IFC 050 FOR water sewage
Sensor model OPTIFLUX2000, converter model IFC050,
Accuracy: ± 0.5% ±1mm/s(DN10-1200)
Caliber: DN10~DN1200
Sensor Model: OPTIFLUX2000(rubber)
Accuracy: 0.5%
Installation method: OPTIFLUX2050C (one type); W (Wall hanging body)
Repeatability: ±0.1%
Measuring range: 0 ~ 12m/s() The flow unit can be changed
Pressure: 0.6MPa~4.0MPa(according to caliber)
Lining material: rubber
Electrode material: Mo2Ti, HC, HB, platinum-iridium, platinum, Ta, Ti
Electricity price form: Standard, scraper (RE), replaceable (WE) (RE/WE ≥DN350)
Sensor protection class :IP67/68
Conductivity: > 5μS/cm(water > 20μS/cm)
Medium *** high temperature: body size *** 130°C, body size *** 180°C (rubber 80°)
Ambient temperature: -40°C to +65°C
Converter model: IFC050
Output signal: 4-20mA current signal +RS485, frequency/pulse output, passive contact output
Power Supply: AC:100-230V, DC:24V (optional)
Communication: HART as standard, other preparations
Applications
•
Suitable for all standard applications up to 130°C
• Hygienic connections make it ideal for food / beverage applications.
|
The Specifications of Krohne Electromagnetic flow meter IFC 050 FOR water sewage |
|
|
Measuring accuracy liquid |
±0.15% of actual measured flow rate + zero stability |
|
Measuring accuracy gas |
±0.5% of actual measured flow rate + zero stability |
|
Lining materials |
chloroprene rubber,PTFE F4,FEP copolymer F46,polyurethane rubber |
|
Repeatability |
Better than 0.05% plus zero stability |
|
Temperature |
20°C / 68°F |
|
Operating pressure |
1 barg / 14.5 psig |
|
Temperature Accuracy |
±1°C / 1.8°F |
|
Measuring range |
400...2500 kg/m 3 / 25...155 lbs/ft 3 |
|
Accuracy |
±2 kg/m 3 / ±0.13 lbs/ft 3 (S15: ±5 kg/m 3 / ±0.33 lbs/ft 3 ) |
|
On site calibration |
±0.5 kg/m 3 / ±0.033 lbs/ft 3 |
E+H Proline Promag 50PElectromagnetic flowmeter
1. Your inquiry related to our products or prices will be replied within 24hours.
2. Well-trained and experienced staffs to answer all your enquiries in fluent English.
3. All our products have 1-year warranties.
4. Offering the support to solve the problem in the application or selling period.
5. Competitive prices based on same quality.
6. Guarantee samples quality same as mass production quality.
E+H Proline Promag 50W Elctromagnetic flowmeter
1.we can produce acoording to your requirments,OEM,ODM
2.we can supply ex-factory price as manufacturer,to help you defeat your opponent.
3.after payment we can deliver to you soon
4.we have ISO9001 certification and patent certification.
