Quick Details
-
Application:
-
Hotel
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
ZENEN
-
Model Number:
-
ZN-AC600
-
Type:
-
Automatic Door Operators
-
Product Name:
-

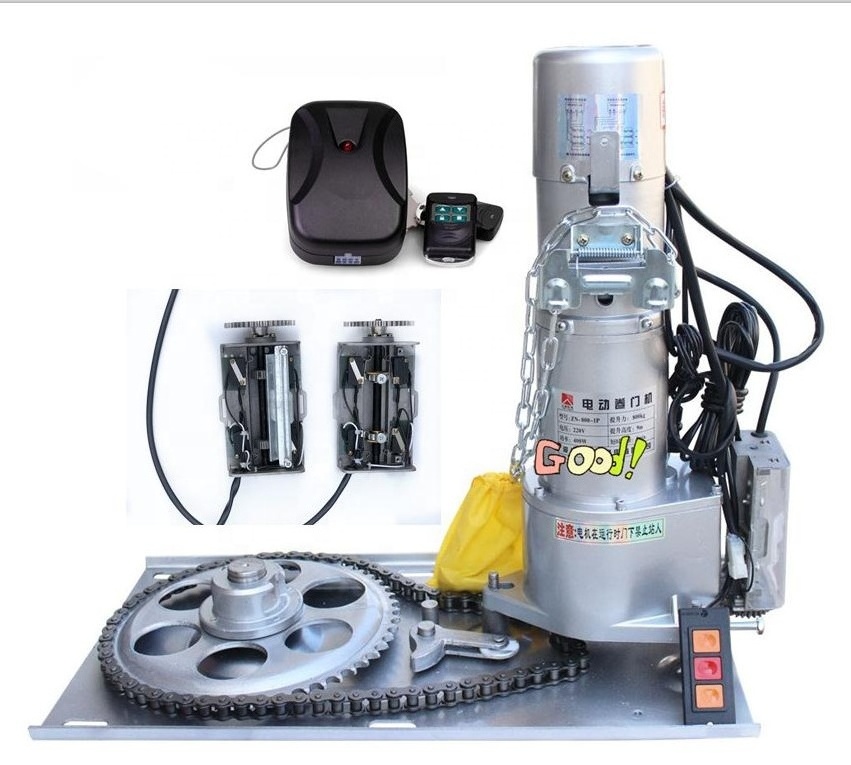

AC Rolling Shutter Door Motor
-
Certificate:
-
CCC, CE
-
Continued Work Time:
-
7-8 min
-
External Rated Voltage:
-
AC220/380V
-
Frequency:
-
50/60Hz
-
OEM:
-
Acceptable
-
Function:
-
Rolling up door
-
Color:
-
As your request
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Onsite Training, Onsite Inspection
-
Project Solution Capability:
-
Others
-
Application:
-
Hotel
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
ZENEN
-
Model Number:
-
ZN-AC600
-
Type:
-
Automatic Door Operators
-
Product Name:
-
AC Rolling Shutter Door Motor
-
Certificate:
-
CCC, CE
-
Continued Work Time:
-
7-8 min
-
External Rated Voltage:
-
AC220/380V
-
Frequency:
-
50/60Hz
-
OEM:
-
Acceptable
-
Function:
-
Rolling up door
-
Color:
-
As your request
ZHANGZHOU ZENEN MOTOR CO., LTD
Features ----
>. Overheat protection;
>. Low-voltage and high-powerDC moter, low noise , small vibration , low consumption;
>. Easy manual operation when power failure and it also can be equipped with electrical storage devices;
>. Limit switch unit enables precise adjustment of door in up and down positions;
>. With convenient , stable function of remote control ,long distance remote operation is available;
>. They are the ideal accessory products for shopping malls, hotels, stores, warehouses
and other buildings.
Main Model and Parameters---
| Model |
Rated
Power(w) |
Output
Torque(N.m) |
Lifting
Force(KG.F) |
Output
Speed(r/min) |
Rated
Current(A) |
Max Lift
Height(m) |
Continued WorkTime(min) |
| 220v 50-60Hz | |||||||
| ZN-1P-300kg | 200 | 168 | 300 | 5.2 | 1.8 | 6 | 7 - 8 |
| ZN-1P-400kg | 250 | 168 | 400 | 5.2 | 2.1 | 7 | 7 - 8 |
| ZN-1P-500kg | 300 | 345 | 500 | 6.2 | 2.5 | 7 | 7 - 8 |
| ZN-1P-600kg | 370 | 412 | 600 | 6.2 | 2.9 | 7 | 7 - 8 |
| ZN-1P-800kg | 400 | 350 | 800 | 3.4 | 3.47 | 10 | 7 - 8 |
|
ZN-1P-1000kg
|
460 | 810 | 1000 | 4.2 | 3.6 | 10 |
7 - 8
|
| 380v 50-60Hz | |||||||
| ZN-3P-1000kg | 400 | 810 | 1000 | 4.2 | 1.1 | 15 | 7 - 8 |
| ZN-3P-1300kg | 600 | 1050 | 1300 | 4.2 | 1.4 | 15 | 7 - 8 |
| ZN-3P-1500kg | 800 | 1220 | 1500 | 3.8 | 2.2 | 15 | 7 - 8 |
Accessories---
>. different brackets and accessories for different countries
>.
different receiver and transmitter for you to choose
Packing---
our set is packed into two cartons with foam inside
carton 1: motor and remote
carton 2: brackets and other accessories
Terms of Shipping ----
>. By express:DHL.UPS.TNT.EMS..etc.
>. Air or Sea Freight: Goods will be delivered by air or sea according to customer's request.
>. Agent designated by client:Please ues the contact detail of your shipping agent and we will arrange the delivery.
