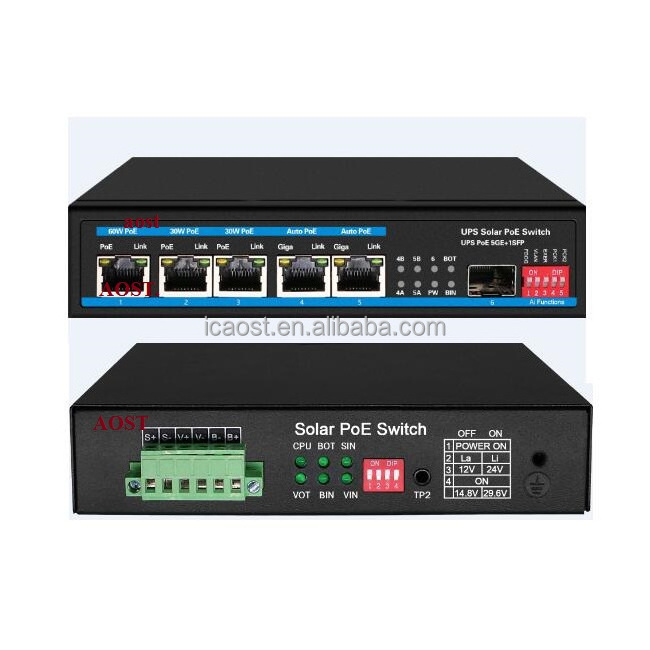

5 Port PoE Solar Charger Switch Clean Energy with 1 SFP Switch Single Port MAX 60W UPS Switch

PoE Function

* Port 1 adopts hasivo AI HiPoE, and port output power up to 60W.

* Port 2,3 support IEEE 802.3af/at, port output power MAX 30W.

* Port 4,5 are auto PoE port of hasivo AI version, can supply power for 48V or 24V devices, port output power up to 25W.

* Support BT PoE power supply as the highest standard in the field, single port power up to 90W, and suitable for dome camera and AP deployment program.

* Intelligently match active and passive PoE devices.

* Support PoEdog, auto restarting and timing restarting when the device fails; support IP binding restarting.

Charging Function

* Support integrated auto charging and integrated battery protection.

* Support auto detection on voltage of the battery, integrated lithium battery auto activation system, low-capacity startup protection system.

* Provide two types of battery as lead-acid and lithium battery, user can set battery modes according to requirement.

* Support 12V/24V lead-acid battery with 50AH maximum, charging current up to 5A.

* Support 12V/24V lithium battery with 50AH maximum, charging current up to 5A.

Battery+Solar Panel Matching Usage(in good illumination condition)

* 12V 100W solar panel+12V 15AH lithium battery: (charging time:6.6H maximum, endurance time:6H(30W loaded)+3H(60W loaded)).

* 12V 100W solar panel+12V 15AH lead-acid battery: (charging time:6.6H maximum, endurance time:6H(30W loaded)+3H(60W loaded)).

* 24V 100W solar panel+24V 15AH lithium battery: (charging time:6.6H maximum, endurance time:12H(30W loaded)+6H(60W loaded)).

* 24V 100W solar panel+24V 15AH lead-acid battery: (charging time:6.6H maximum, endurance time:12H(30W loaded)+6H(60W loaded)).
