Quick Details
-
Brand Name:
-
ZLPOWER
-
Model Number:
-
Battery Cabinet
-
External Size:
-
780*450*610mm
-
Name:
-
battery cabinet
-
Product Name:
-
Good quality outdoor ups power supply cabinet battery cabinet
-
Material quality:
-
metal
-
Weight:
-
2.5-95kg
-
Design:
-
modular design,can be parallel on the same wall
-
Battery:
-
Standard 24ah/17ah,Standard 65ah/100ah
-
Feature:
-
maintainance free,long lasting,self-sufficient
-
MOQ:
-
1
-
Delivery Time:
-
About two weeks
-
Color:
-
White
Quick Details
-
Protection Level:
-
IP65
-
Type:
-
Junction Box
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZLPOWER
-
Model Number:
-
Battery Cabinet
-
External Size:
-
780*450*610mm
-
Name:
-
battery cabinet
-
Product Name:
-
Good quality outdoor ups power supply cabinet battery cabinet
-
Material quality:
-
metal
-
Weight:
-
2.5-95kg
-
Design:
-
modular design,can be parallel on the same wall
-
Battery:
-
Standard 24ah/17ah,Standard 65ah/100ah
-
Feature:
-
maintainance free,long lasting,self-sufficient
-
MOQ:
-
1
-
Delivery Time:
-
About two weeks
-
Color:
-
White
Product Description
| Good quality outdoor ups power supply cabinet battery cabinet |
| Application: | ||||||||||||||||||||||||
| ZLPOWER battery cabinet is the perfect solution for creating additional space by replacing sealed lead acid battery , or when there is a need for a maintenace free , long lasting , self-sufficient battery back-up solution. | ||||||||||||||||||||||||
| The cabinet comes pre-wired from the factory , ready to install. Its modular design permits more than one battery cabinet to be mounted side by side on the same wall. | ||||||||||||||||||||||||
Specifications:
| Model | Dimensions(W*D*H)(mm) | Battery | Weight(kg) | |||||
| C1B | 280*190*220 | Standard24AH/17AH | 2/3PCS | 2.5 | ||||
| C1 | 435*210*270 | Standard24AH/38AH | 2PCS | 4 | ||||
| Standard65AH/100AH | 1PCS | |||||||
| C1A | 540*210*230 | Standard24AH/38AH | 3PCS | 4.5 | ||||
| C2 | 470*390*310 | Standard24AH/38AH | 6/4PCS | 7.5 | ||||
| Standard65AH/100AH | 2PCS | |||||||
| C3 | 585*450*310 | Standard24AH/38AH | 8/4PCS | 9.5 | ||||
| Standard65AH/100AH | 3PCS | |||||||
| C4 | 470*390*600 | Standard24AH/38AH | 8PCS | 14 | ||||
| Standard65AH/100AH | 4PCS | |||||||
| C6 | 585*450*610 | Standard24AH/38AH | 12PCS | 18 | ||||
| Standard65AH/100AH | 6PCS | |||||||
| C8 | 780*450*610 | Standard24AH/38AH | 20/16PCS | 23 | ||||
| Standard65AH/100AH | 8PCS | |||||||
| C10 | 950*450*610 | Standard24AH/38AH | 20PCS | 29 | ||||
| Standard65AH/100AH | 10PCS | |||||||
| C12 | 780*470*910 | Standard24AH/38AH | 24PCS | 32 | ||||
| Standard65AH/100AH | 12PCS | |||||||
| C16 | 780*470*1190 | Standard24AH/38AH | 32PCS | 45 | ||||
| Standard65AH/100AH | 16PCS | |||||||
| C20 | 950*470*1190 | Standard24AH/38AH | 40PCS | 50 | ||||
| Standard65AH/100AH | 20PCS | |||||||
| C24 | 1150*470*1190 | Standard65AH/100AH | 24PCS | 90 | ||||
| C32 | 800*880*1190 | Standard65AH/100AH | 32PCS | 95 | ||||

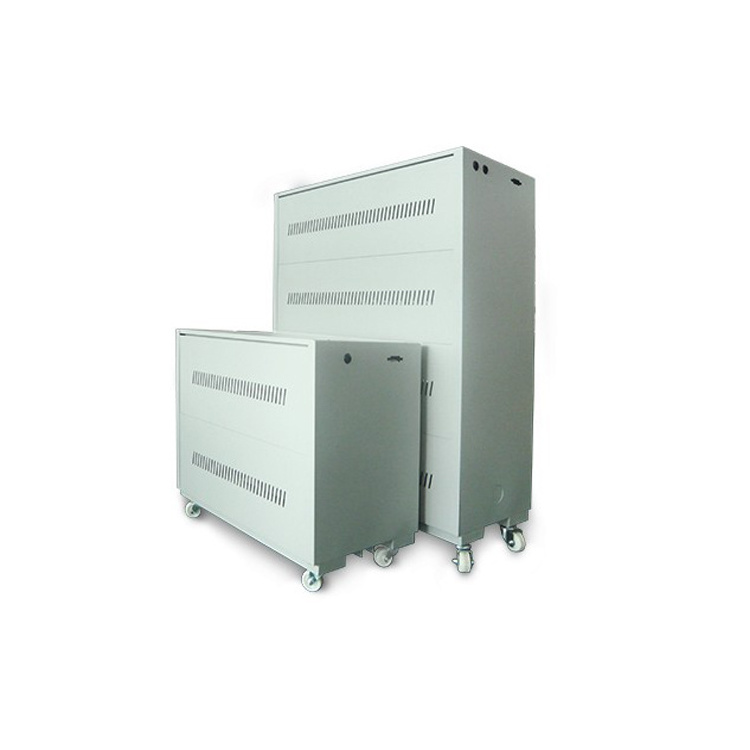

Photos:
