Quick Details
-
Name:
-

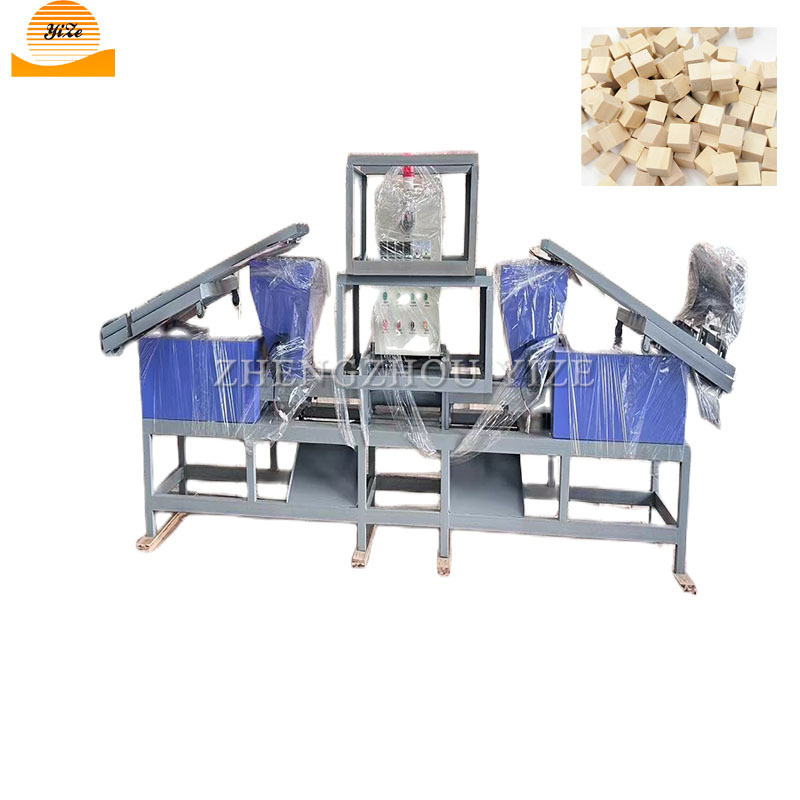

wood pallet block cutting machine , wood block making machine
-
Other name:
-
wood sawdust block making machine
-
Keywords:
-
15mm wood block board
-
Key words:
-
wood pallet feet block making machine
-
price:
-
good price,cheap price
-
Working methods:
-
Automatic Hot Press
-
relate machine 1:
-
sawdust charcoal briquette machine
-
relate machine:
-
sawdust pipe hot air dryer
-
Working time:
-
24hours
-
Color:
-
white, blue or customized
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YIZE
-
Weight (KG):
-
1000 KG
-
Name:
-
wood pallet block cutting machine , wood block making machine
-
Other name:
-
wood sawdust block making machine
-
Keywords:
-
15mm wood block board
-
Key words:
-
wood pallet feet block making machine
-
price:
-
good price,cheap price
-
Working methods:
-
Automatic Hot Press
-
relate machine 1:
-
sawdust charcoal briquette machine
-
relate machine:
-
sawdust pipe hot air dryer
-
Working time:
-
24hours
-
Color:
-
white, blue or customized
Product Description
It is used to turn the wood waste such as sawdust, wood wools into the pallet feet which is for the transportation pallet. The final product could get the E1 grade.
The pallet feet could be solid without hole in the center, also could be hollow. Besides, you could customise the mold for other shape wood waste compressed products.
Block sizes could be customised from 75mm to 145mm. And the usual sizes are90*90mm, 90*100mm, 100*100mm,80*90mm.
Work flow of Compressed Wood Blocks Making Machines:
a, Crushing the wood, branch, wood waste into sawdust, wood shavings or wood wools (or you have the raw material already);
b, Drying the raw material to 8% (solid block) or 10%(hollow block);
c, Mixing the raw material with glue;
d, Pressing them in the wood pallet block machine;
e, First cutting the product from pallet block machine into bar;
f, Second cutting the strip into the single blocks.
|
Model No.
|
YZRY-1
(single head) |
YZRY-2
(double head) |
|
|
Power (kw)
|
12-15kw
|
18-22kw
|
|
|
Size (mm)
|
5000*600*1300mm
|
5000*700*1300mm
|
|
|
Capacity(m3/24h)
|
4-6
|
2-3
|
|
|
Sawdust consume(t/24h)
|
1.3
|
2.6
|
|
|
Density (kg/m3)
|
500-800
|
500-800
|
|
|
weight (kg)
|
1000
|
1500
|
|
|
Block diameter
|
75-140mm,make as customer request.
|
|
|
Detailed Images
Sawdust feeding hole
Block discharge hole
Hydraulic device
Different size block mold and size for you choose
customized also available
Control cabinet
easy to control the machine operation
A sharp cutting knife that cuts smooth and flat pieces of block
Different block mold and block size for your choose, the block is very firm and not easy to scatter:
Our factory and transport display
Related Products
Transaction history
We are the supplier of the Trade Assurance amount guaranteed by Alibaba, your payment will be 100% protected, the following is our Trade Assurance Transaction History:
Packing & Delivery
Packing
We send the machine picture which you order . then packing it with standard export wooden box after you confirm machine is ok .
Different machines package will different . we supply standard export wooden box ,carton box package . if big machine and production line machine it will be loaded in the container directly
Delivery
1.Delivery by sea :After delivery it to seaport . will tell you the shipping time and addrive time . Finally , send all origin documents to you by Express for free .
2.Delivery by Express to your door (DHL/TNT/Fedex/UPS etc ) or by air to your city airport .Will tell you the Express tracking number
3.Delivery to the warehouse which you reques . Will tell you
logistic or express tracking number
Our Service
Service before sale
Insist on quality first the production standard, every machine before leave the factory we test it ensure the quality is good.
Service on sale
We are confident that we sell our machines to customers at low prices and activated. Professionally and patiently introduction
pictures and video to show machine
Service after sale
1, Free insurance for goods
2, 24 hours online to solve any
questions.Supply manual book and technical support,maintain video to help you.
Certifications
Zhengzhou Yize Machinery CO.,Ltd's factory was built in 2008, its exporting company was assessed gold supplier in 2015 by alibaba. It is specialized in the production of wood machinery, We will supply 100% QC inspection before shipment and 100% guaranteed after sales service. Top quality machinery is waiting for your choose.
FAQ and my contact
Questions/Answer
1,What is the voltage/phase for this machine ?
220V 50Hz/single phase ,380V 50Hz/three phase , 110V 60Hz/single phase also can made as the clients' need
2,What is the Mode of transportation ?
LCL and FCL by ship ,By Express (DHL,TNT, Fedex etc) ,By air
3,How long can we get the goods?
we usually delivery in 3-5 working days, we will inform you shipping time based on your seaport.
4,How long is the guarantee?
we promise guarantee as one year for non-human damage factor.
5,How should I do if meet some trouble while using?
we can supply English manual book and also take a video for showing how to resolve the problems or dispatch our worker to your factory.
6,What about Payment term?
T/T(Telegraphic Transfer )-30% as prepayment by T/T, after seen the copy of the B/L sent by fax,
the balance of 70% should be effected . Western Union ,L/C ,Trade Assurance,Etc.
7,What's your MOQ
1 set
8, How can i contact with you ?
You can send inquiry to me .
Aslo can contact with me by Cellphone/Wechat / Whatsapp /Viber: +86 15890126502
Skype: nancy-yize,QQ: 2045736388
