Quick Details
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZBTK
-
Dimension(L*W*H):
-
600x800x1400mm
-
Weight (KG):
-
85 KG
-
Core Components:
-
galvo scanner
-
Product name:
-
glass drilling solution
-
Laser type:
-
1064nm/532nm
-
Key words:
-
laser glass cutting drilling
-
Material:
-
Sheet metal case
-
Input Aperture:
-
14.0mm
-
Operating voltage:
-
±15VDC/5A
-
Operating Temperature:
-
10~50 Degree
Quick Details
-
Engraving Area:
-
150mm*150mm
-
Laser Type:
-
1064nm/532nm
-
Engraving Speed:
-
4000m/s
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZBTK
-
Dimension(L*W*H):
-
600x800x1400mm
-
Weight (KG):
-
85 KG
-
Core Components:
-
galvo scanner
-
Product name:
-
glass drilling solution
-
Laser type:
-
1064nm/532nm
-
Key words:
-
laser glass cutting drilling
-
Material:
-
Sheet metal case
-
Input Aperture:
-
14.0mm
-
Operating voltage:
-
±15VDC/5A
-
Operating Temperature:
-
10~50 Degree

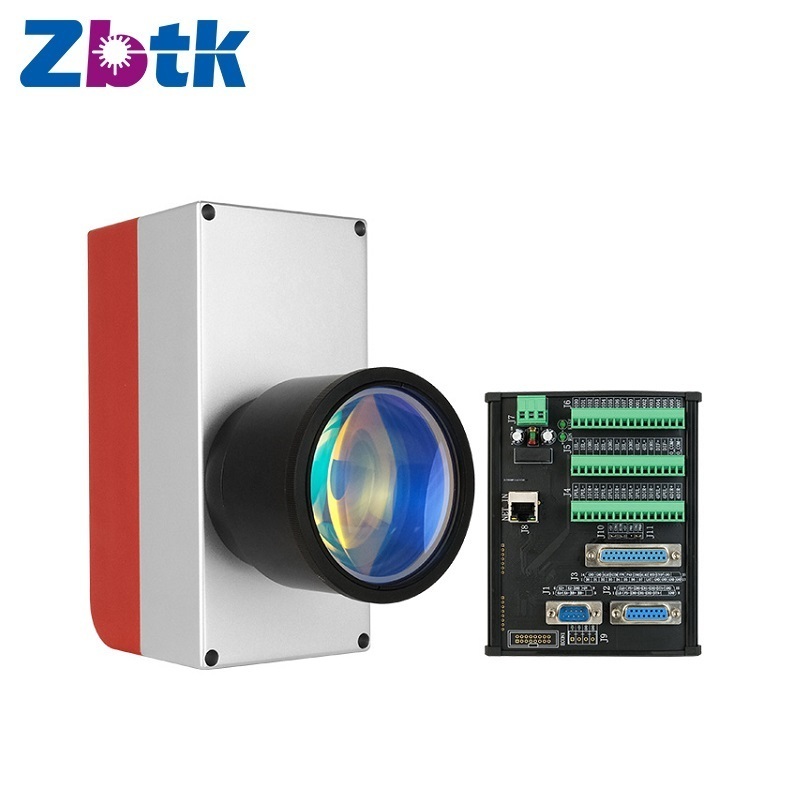

laser glass cutting glass drilling galvo head 3D dynamic focus galvanometer scanner for Laser engraving machine
ZB3D141 series 3D dynamic galvanometer scanner is the latest back focus high-end galvanometer scanner launched by ZBTK. With powerful laser marking function, it can easily face a variety of complex laser printing scenarios. It inherits the outstanding performance of the Zbtk high-end galvanometer scanner series, which has the characteristics of good linearity, small temperature drift, high accuracy, fast speed, good stability and strong anti-interference ability. It can meet the application needs of the increasingly powerful high-end laser equipment market and is the core product launched by ZBTK in 2020. It also means that ZBTK has a strong core technical force!
Product Description
Why Choose Us
QUALITY ASSURANCE
Alibaba trade credit guarantee, TUV certified manufacturer is trustworthy
R&D CAPABILITIES
The company has a series of industry overall solutions with completely independent intellectual property rights
INNOVATION
INNOVATION A technical team with 15 years of industry experience and more than 20 national invention patents
OEM / ODM
Accpet LOGO branding on prodcts and.average production time 7-10 days.
TECHNICAL TEAM
A high-level scientific research production and quality control team can ensure every product.
BEST SERVICE
To provide you with value-for-money 2-year warranty and lifetime technical support.
Product Paramenters
|
SPECIFICATIONS FOR ZBGD3D14A SERIES
|
|
|
|
|||
|
Product Name
|
GD3D-1064-14A
|
GD3D-532-14A
|
GD3D-1064-14AS
|
|||
|
Applicable laser type
|
Solid state infrared
|
Solid green light
|
Fiber optic infrared
|
|||
|
Incident spot
|
<9mm
|
<9mm
|
<4mm
|
|||
|
Borehole size
|
90mm
|
90mm
|
45mm
|
|||
|
Glass thickness
|
<15mm
|
<10mm
|
<15mm
|
|||
|
Collapse size
|
nanosecond:<200um
|
subnanosecond:<100um
|
nanosecond:<300um
|
|||
|
|
picosecond:<20um
|
|
|
|||
|
|
femtosecond: Near collapse free edge
|
|
|
|||
|
Applicable glass types
|
many
|
many
|
centre
|
|||
|
Expandable axis
|
4-axis
|
4-axis
|
4-axis
|
|||
|
Scan angle
|
+0.35rad
|
+0.35rad
|
+0.35rad
|
|||
|
X/Y axis tracking time
|
0.24ms
|
0.24ms
|
0.24ms
|
|||
|
Marking Speed
|
<4000mm/s
|
<4000mm/s
|
<4000mm/s
|
|||
|
Positioning Speed
|
<8000mm/s
|
<8000mm/s
|
<8000mm/s
|
|||
|
X/Y Repetition Precision (RMS)
|
<2urad
|
<2urad
|
<2urad
|
|||
|
Power Requirements
|
±15VDC,≥10A
|
±15VDC,≥10A
|
±15VDC,≥10A
|
|||
|
Operation Temperature
|
10℃ ~50℃
|
|
|
|||
