Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
CZREAL
-
Car Model:
-
Universal Car
-
Model Number:
-
2" * 8" *12"
-
Product name:
-
1.5 Inch Stainless Steel Bellow Flexible Exhaust Pipe
-
Material:
-
Stainless Steel
-
Overall length:
-
4" / 6" / 8" / 10" / 12" / 14" / 16" Or Customizable Size
-
Color:
-
Silver
-
Structure:
-
Bellows + Outer Braid + Inner Braid / Interlock + Caps + Nipples
-
Application:
-
Automotive Exhaust System
-
OEM:
-
Accpet
-
MOQ:
-
1 PCS
-
Packing:
-
Plastic Film , Carton
-
HS Code:
-
8708920000
Quick Details
-
Car Fitment:
-
Universal
-
OE NO.:
-
Client Required
-
Warranty:
-
2 YEARS
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
CZREAL
-
Car Model:
-
Universal Car
-
Model Number:
-
2" * 8" *12"
-
Product name:
-
1.5 Inch Stainless Steel Bellow Flexible Exhaust Pipe
-
Material:
-
Stainless Steel
-
Overall length:
-
4" / 6" / 8" / 10" / 12" / 14" / 16" Or Customizable Size
-
Color:
-
Silver
-
Structure:
-
Bellows + Outer Braid + Inner Braid / Interlock + Caps + Nipples
-
Application:
-
Automotive Exhaust System
-
OEM:
-
Accpet
-
MOQ:
-
1 PCS
-
Packing:
-
Plastic Film , Carton
-
HS Code:
-
8708920000

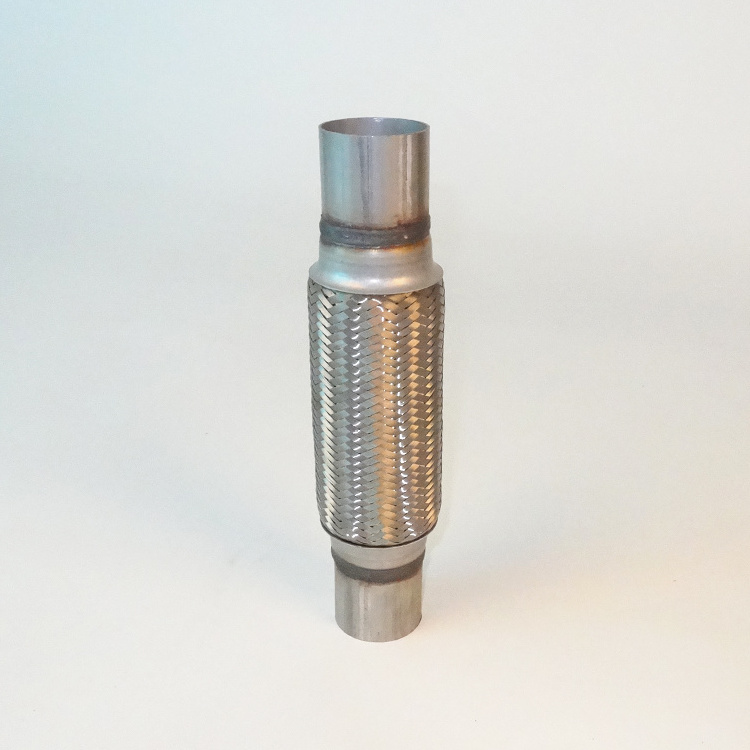

Truck Silencer System Joint Flex Interlock Muffler 1.5 Inch Stainless Steel Bellow Flexible Exhaust Pipe
High Quality Exhaust Flexible Pipe Bellows
A flex pipe is flexible piece of pipe that allows the exhaust system some flexibility. Flex pipes are an essential part of any front wheel drive vehicle and on most all wheel drive vehicles. On front wheel cars, since the motor is mounted transversely, when you accelerate the motor rocks and the flex pipe protects your exhaust system from breakage. Without that extra flex the rocking motion would crack the exhaust system causing a loud leak.
Common sizes are as follows, customizable sizes:
|
Dlanmeter (I.D.) |
Pipe Lenght |
Overall Lenght (OAL) |
Dlanmeter (I.D.) |
Pipe Lenght |
Overall Lenght (OAL) |
Extensions |
| 1-3/4" | 4" | 4" | 1-3/4" | 4" | 8" | Yes |
| 1-3/4" | 6" | 6" | 1-3/4" | 6" | 10" | Yes |
| 1-3/4" | 8" | 8" | 1-3/4" | 8" | 12" | Yes |
| 1-3/4" | 10" | 10" | 1-3/4" | 10" | 14" | Yes |
| 1-3/4" | 12" | 12" | 1-3/4" | 12" | 16" | Yes |
| 2" | 4" | 4" | 2" | 4" | 8" | Yes |
| 2" | 6" | 6" | 2" | 6" | 10" | Yes |
| 2" | 8" | 8" | 2" | 8" | 12" | Yes |
| 2" | 10" | 10" | 2" | 10" | 14" | Yes |
| 2" | 12" | 12" | 2" | 12" | 16" | Yes |
| 2-1/4" | 4" | 4" | 2-1/4" | 4" | 8" | Yes |
| 2-1/4" | 6" | 6" | 2-1/4" | 6" | 10" | Yes |
| 2-1/4" | 8" | 8" | 2-1/4" | 8" | 12" | Yes |
| 2-1/4" | 10" | 10" | 2-1/4" | 10" | 14" | Yes |
| 2-1/4" | 12" | 12" | 2-1/4" | 12" | 16" | Yes |
| 2-1/2" | 4" | 4" | 2-1/2" | 4" | 8" | Yes |
| 2-1/2" | 6" | 6" | 2-1/2" | 6" | 10" | Yes |
| 2-1/2" | 8" | 8" | 2-1/2" | 8" | 12" | Yes |
| 2-1/2" | 10" | 10" | 2-1/2" | 10" | 14" | Yes |
| 2-1/2" | 12" | 12" | 2-1/2" | 12" | 16" | Yes |
| 3" | 4" | 4" | 3" | 4" | 8" | Yes |
| 3" | 6" | 6" | 3" | 6" | 10" | Yes |
| 3" | 8" | 8" | 3" | 8" | 12" | Yes |
| 3" | 10" | 10" | 3" | 10" | 14" | Yes |
| 3" | 12" | 12" | 3" | 12" | 16" | Yes |
Exhaust Flexible Bellows Types:
A. Bellows + Outer Braid
B. Bellows + Interlock + Outer Braid
C. Bellows + Inner Braid + Outer Braid
D. Bellows + Outer Mesh
E. Type A/B/C + Nipples
F. Type D + Nipples
Bellows
can be used in the exhaust system of large vehicles such as trucks, buses, buses, etc., for the high temperature portion of the engine exhaust manifold.
The
Exhaust Bellows
is installed in the exhaust pipe between the engine exhaust manifold and the muffler, so that the entire exhaust system is flexibly coupled, thereby reducing vibration and noise, facilitating installation and extending the life of the exhaust muffler system.
