Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XR
-
Dimension(L*W*H):
-
Custom Size
-
Weight:
-
1 KG
-
Warranty:
-
6000hours
-
Working Temperature Range:
-
100 - 600 ℃
-
Core Components:
-
heating wire
-
Item:
-
Industrial Stainless Steel Electrical Immersion Tubular Water Heater
-
Brand Name::
-
Yancheng Xinrong
-
Power:
-
Customized
-
Wattage Density:
-
2-30W/cm2
-
Dimension:
-
Custom Size
-
Heating Wire:
-
NiCr80/20
-
Insulation:
-
High Purity MgO
-
Application:
-
Immersion heater for water,oil heating,tank heating
Quick Details
-
Type:
-
Immersion Heater
-
Power Source:
-
Electric
-
Voltage:
-
220V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XR
-
Dimension(L*W*H):
-
Custom Size
-
Weight:
-
1 KG
-
Warranty:
-
6000hours
-
Working Temperature Range:
-
100 - 600 ℃
-
Core Components:
-
heating wire
-
Item:
-
Industrial Stainless Steel Electrical Immersion Tubular Water Heater
-
Brand Name::
-
Yancheng Xinrong
-
Power:
-
Customized
-
Wattage Density:
-
2-30W/cm2
-
Dimension:
-
Custom Size
-
Heating Wire:
-
NiCr80/20
-
Insulation:
-
High Purity MgO
-
Application:
-
Immersion heater for water,oil heating,tank heating

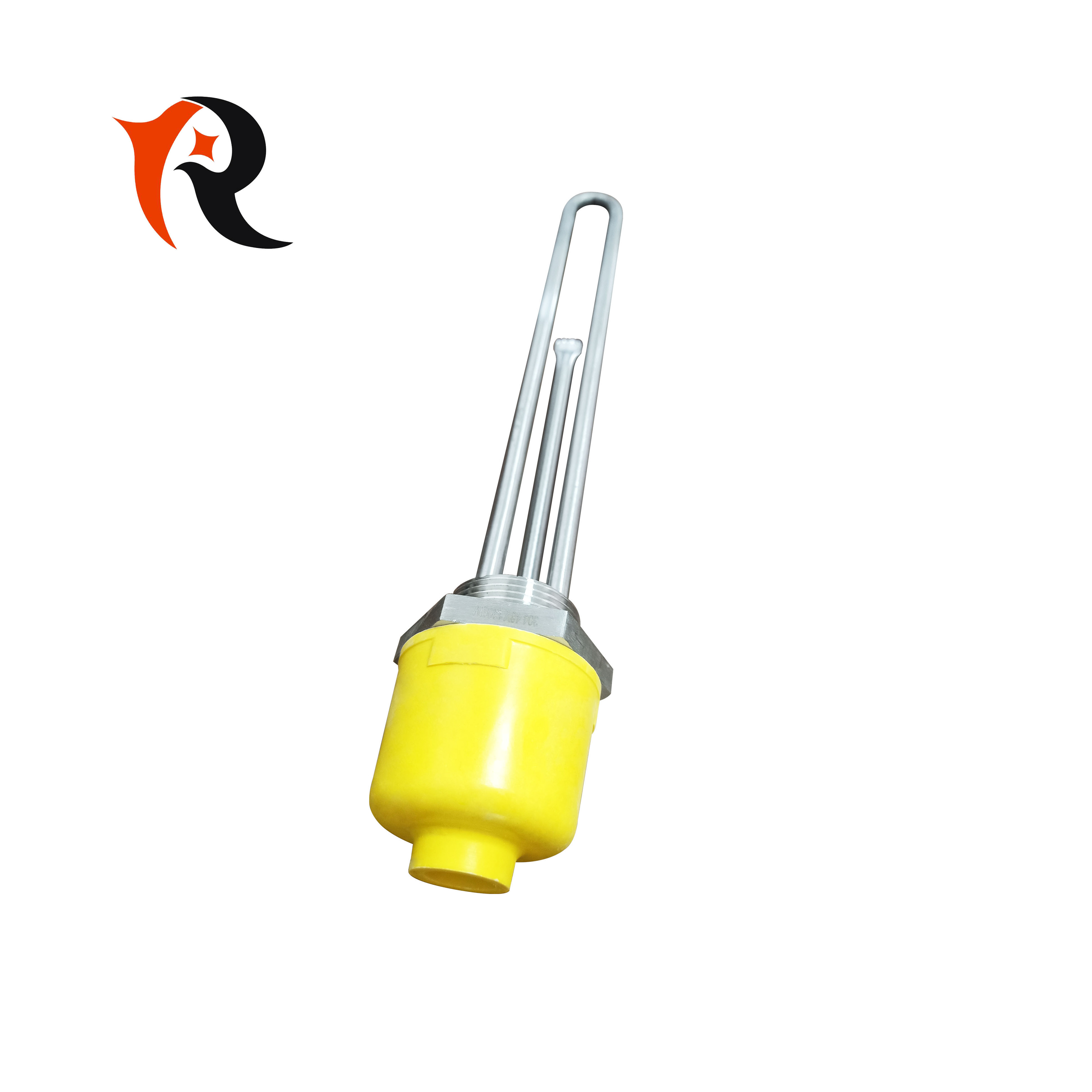

Water Immersion Stainless Steel 304 Tubular Heating Elements With Flange
Flanged immersion heaters consist of hairpin bent tubular elements welded or brazed into a flange and provided with wiring boxes for electrical connections. Flange heaters are installed by bolting to a matching flange welded to the tank wall or nozzle. A wide selection of flange sizes, kilowatt ratings,voltages, terminal housings and sheath materials makes these heaters ideal for all types of heating applications
|
Tube Diameter
|
Screw Size
|
Tube Length(under screw)
|
|
|
|
|||||
|
|
|
3KW
|
6KW
|
9KW
|
12KW
|
|||||
|
φ8mm
|
G1-1/4"(DN32/42mm)
|
300mm
|
400mm
|
500mm
|
550mm
|
|||||
|
φ10mm
|
G1-1/2"(DN40/47mm)
|
250mm
|
350mm
|
400mm
|
450mm
|
|||||
|
φ12mm
|
G2"(DN50/58mm)
|
220mm
|
260mm
|
330mm
|
360mm
|
|||||
|
Regular Size For Reference: (size also can be customzied)
|
|
|
|
|
|
|||||
Buying Guides
①
All of our heating element are customized as your working environment. Please advise voltage, power, size and application to help us give you a moderate price and professional service.
② We support TNT, UPS, FedEX, DHL, SF Express and EMC.
③ You can have your forwarder to arrange transportation.
Yancheng Xinrong Electronic Technology Co.,Ltd have been engaged in design and manufacturing of industrial heating system, Our company have advanced production lines and testing equipment, who supply clients high quality goods, as well as professional R&D department and service team, who provide customers best heating solutions. Our products have been exported to Europe, America, Asia, Mid East etc. more than 200 countries. We supply different heating element, heating equipment, and temperature measurer.
