Quick Details
-
Brand Name:
-
Shuguang
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
3*1.2*2.2 meter
-
Power (kW):
-
18.5
-
Weight (T):
-
5
-
Name:
-

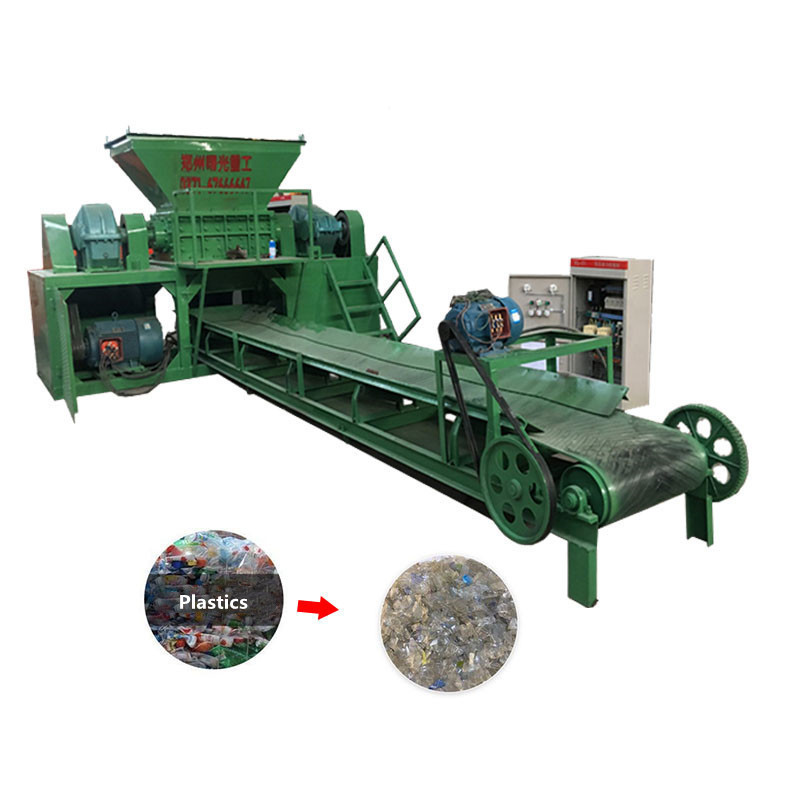

double shaft shredder
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
keywords:
-
plastic shredder machine
-
Motor:
-
Gear Motor
-
shredder blade material:
-
9 Crsi
-
knife size(diameter*thickness)mm:
-
300*30
-
knife quantity:
-
26
-
Final Product:
-
blocky structure
-
Certification:
-
CE Certificate
Quick Details
-
Max.Production Capacity (kg/h):
-
10000
-
Place of Origin:
-
Henan, China
-
Production Capacity (kg/h):
-
500 - 10000 kg/h
-
Brand Name:
-
Shuguang
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
3*1.2*2.2 meter
-
Power (kW):
-
18.5
-
Weight (T):
-
5
-
Name:
-
double shaft shredder
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
keywords:
-
plastic shredder machine
-
Motor:
-
Gear Motor
-
shredder blade material:
-
9 Crsi
-
knife size(diameter*thickness)mm:
-
300*30
-
knife quantity:
-
26
-
Final Product:
-
blocky structure
-
Certification:
-
CE Certificate
Suitable Material Of Crusher Machine
1. PET bottle, drink bottle label, bottle cap.
2. PE film, agricultural film, bag, PE pipe, water pipe, drainage pipe,wire cable .
3. PP woven bag,PP cup, PP film, sheet, pallet.
4. LDPE/HDPE/ABS film, sheet, flake, lump, board.
5. PVC pipe, window frame, door frame, soft PVC.
6. Leather,artificial
Leather,imitation leather clothes,shoes bag and various product.
7. Rubber tire, rubber/plastic material.
8. Non-woven fabric and Nylon material.
9. Fiber, coconut fiber, jute fiber.
10. Wood pallet/window/door,board.
11.Metal drum,freezer,car budy,scrap steel,metal steel,aluminum panel,cable,metal bucket,large-scale hollow material(plastic and other large container) and variety of mixed waste,especially waste containing metal and so on.
Structure of shredder machine:
Techical Data:
|
Model |
Knife size |
Power (Kw) |
Capacity
|
Knife quantity |
Reducer |
Machine size
|
Weight
|
|
SG-600
|
Φ 200*20 |
11*2 |
0.3-0.5 |
30 |
350*2 |
2.6*1*2.1 |
2 |
|
Φ 200*20 |
11*2 |
0.4-1 |
30 |
350*2 |
2.6*1.1*2.1 |
2.2 |
|
|
SG-800
|
Φ 300*20 |
15*2 |
0.8-1.2 |
40 |
400*2 |
3*1.2*2.2 |
3 |
|
Φ 300*30 |
18.5*2 |
1-1.5 |
26 |
400*2 |
3*1.2*2.2 |
3.5 |
|
|
Φ 300*40 |
22*2 |
1.5-2 |
20 |
500*2 |
3*1.2*2.2 |
5 |
|
|
SG-1000
|
Φ 300*30 |
30*2 |
1.5-2 |
34 |
400*2 |
3.4*1.25*2.2 |
6 |
|
Φ 300*40 |
37*2 |
1.8-2.5 |
26 |
500*2 |
3.4*1.25*2.2 |
6.3 |
|
|
Φ 400*40 |
37*2 |
2-2.5 |
26 |
500*2 |
3.4*1.25*2.2 |
6.5 |
|
|
Φ 400*50 |
45*2 |
2.2-2.8 |
20 |
650*2 |
3.4*1.25*2.2 |
7 |
|
|
SG-1200 (6-18teeth)
|
Φ 300*40 |
45*2 |
2.5-3 |
30 |
650*2 |
3.8*1.25*2.2 |
8 |
|
Φ 400*40 |
45*2 |
2.8-3.3 |
30 |
650*2 |
3.8*1.25*2.2 |
8.5 |
|
|
Φ500*40 |
55*2 |
3-3.5 |
30 |
650*2 |
3.8*1.25*2.2 |
9 |
|
|
SG-1500 (6-18teeth)
|
Φ 300*30 |
55*2 |
3.8-4.5 |
50 |
750*2 |
4.4*1.5*2.5 |
11 |
|
Φ 400*40 |
55*2 |
4-5 |
38 |
750*2 |
4.4*1.5*2.5 |
12 |
|
|
Φ 500*50 |
75*2 |
4.5-5.5 |
30 |
750*2 |
4.4*1.5*2.5 |
14 |
|
|
Φ 550*50 |
75*2 |
5-6 |
30 |
750*2 |
4.4*1.5*2.5 |
16 |
|
|
SG-1800 (9-18teeth)
|
Φ 400*40 |
90*2 |
6-7 |
45 |
Zsy355*2 |
5.3*2.1*2.8 |
17 |
|
Φ550*50 |
90*2 |
7.5-8.5 |
36 |
Zsy355*2 |
5.3*2.1*2.8 |
18 |
|
|
Φ600*60 |
90*2 |
9-10 |
30 |
Zsy400*2 |
5.3*2.1*2.8 |
19 |
|
|
SG-2000 (9-18teeth)
|
Φ550*50 |
110*2 |
10-13 |
40 |
Zsy400*2 |
6*2.2*3.5 |
22 |
|
Φ600*60 |
110*2 |
12-16 |
34 |
Zsy450*2 |
6*2.2*3.5 |
23 |
|
|
Φ650*60 |
110*2 |
15-20 |
34 |
Zsy450*2 |
6*2.2*3.5 |
25 |
Zhengzhou Shuguang Heavy Machinery Co., Ltd is factory specializing in shredder machine and mining machinery since 1993.We can customize machine for you according to your demands.
