- Product Details
- {{item.text}}
Quick Details
-
Bottle Volume(ml):
-
1000 ml
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sinotech
-
Year:
-
2022
-
Voltage:
-
Customer Customized
-
Dimension(L*W*H):
-
2200x560x1380mm
-
Hollow part volume:
-
1L
-
Clamping Force (kN):
-
100
-
Power (kW):
-
22.4
-
Weight (KG):
-
1200 KG
-
Key words:
-
Semi auto 4 cavities hot-selling pet bottle machine maker blow molding
-
Type:
-
Semi Automatic Blow Machine
-
Capacity:
-
1600/2500BPH
-
PLC:
-
MISTUBSHI
-
Bottle material:
-
PET
-
Color:
-
Customer Customized
-
Suitable bottle:
-
0.1-1L
-
Machine type:
-
Stretch Bottle Blowing
-
Bottle type:
-
PET Bottlle
-
Blow Moulding Type:
-
Stretch Blow Moulding
Quick Details
-
Neck Diameter(mm):
-
38 mm
-
Max.Bottle Diameter(mm):
-
45 mm
-
Max.Bottle Height(mm):
-
360 mm
-
Bottle Volume(ml):
-
1000 ml
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sinotech
-
Year:
-
2022
-
Voltage:
-
Customer Customized
-
Dimension(L*W*H):
-
2200x560x1380mm
-
Hollow part volume:
-
1L
-
Clamping Force (kN):
-
100
-
Power (kW):
-
22.4
-
Weight (KG):
-
1200 KG
-
Key words:
-
Semi auto 4 cavities hot-selling pet bottle machine maker blow molding
-
Type:
-
Semi Automatic Blow Machine
-
Capacity:
-
1600/2500BPH
-
PLC:
-
MISTUBSHI
-
Bottle material:
-
PET
-
Color:
-
Customer Customized
-
Suitable bottle:
-
0.1-1L
-
Machine type:
-
Stretch Bottle Blowing
-
Bottle type:
-
PET Bottlle
-
Blow Moulding Type:
-
Stretch Blow Moulding
Product Description

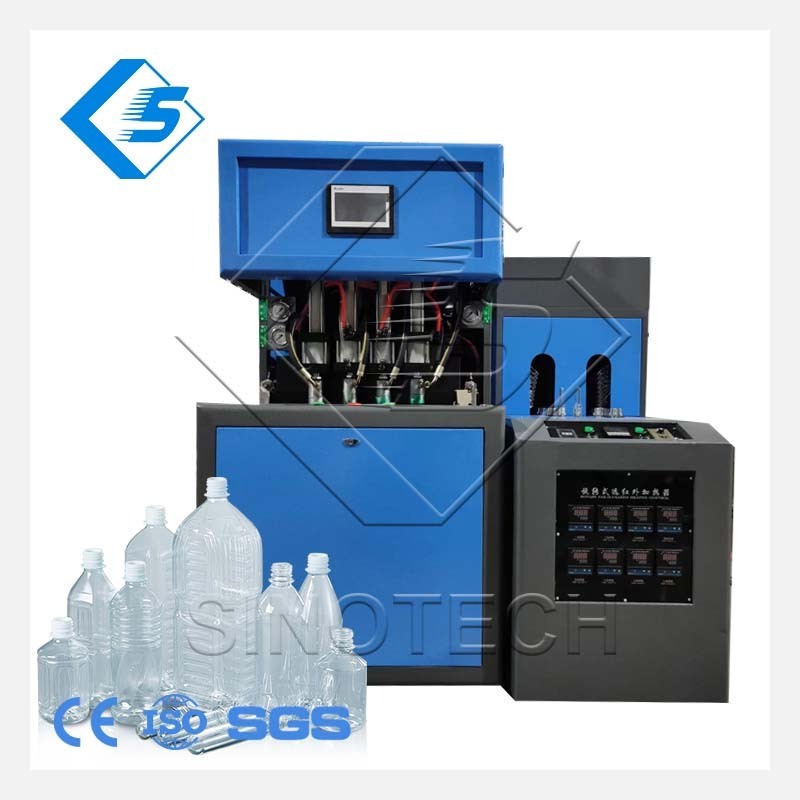

Universal semiautomatic blowing machine for PET bottles 0.1-1 Liter with output 1500-2500BPH. Universal and flexible, ideal solution with low investment cost.
1.Quick-change for another bottle Format
2.Handy and simple operation mode
3.setup on LCD display
4.15 and 25 bars main blow pressure
5.IR lamps for deep preforms heating
6.Orginal pneumatic scheme
7.Start-up and maintenance-friendly
8.Multiple bottle formats & volumes
9.Space-saving overall dimensions
Details Images
LCD-Touch Screen, Easy operation and control
A
nti-Pinch device(Two button) to ensure safe production
03
AirTac Pneumatic valves, Equipped with Pre-blow, easy installation
Built-in low pressure converter, No need low pressure air compressor. Help customers save investment costs.
05
Heating Oven(Infrared heating tube), Preforms heating by Linear Lamp heating before bottle blowing.
Mould of Bottle, #45 steel with good quality of CNC manufacture, Customize by your request, Equip with Air cooling or Chiller
Specification
|
Container
|
Product material
|
PET
|
|
|
Container Volume
|
4 cavities (1L)
|
|
|
Theoretical output
|
1500/2500BPH
|
|
|
Max. container diameter
|
45mm
|
|
|
Max. container height
|
170mm
|
|
Moulding
|
Max. mould plate Dimention(L*W)
|
470*350mm
|
|
|
Max. mould thickness
|
220mm
|
|
|
Clamping force
|
100KN
|
|
|
Mould opening stroke
|
160mm
|
|
Machine size and weight
|
Main machine(L*W*H)
|
1680x810x1600mm
|
|
|
Main machine weight
|
1200Kg
|
|
|
Oven (L*W*H)
|
2200x560x1380mm
|
|
|
Oven weight
|
330Kg
|
|
|
Max. heating power
|
3-10kw
|
