Quick Details
-
Place of Origin:
-
Guangdong, China
-
Function:
-
Electrolyte Injection
-
Application:
-
Battery Equipments
-
Accessories:
-
One 32Oz Boston round glass bottles are included
Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
XWELL
-
Model Number:
-
XW-BD10ml
-
Place of Origin:
-
Guangdong, China
-
Function:
-
Electrolyte Injection
-
Application:
-
Battery Equipments
-
Accessories:
-
One 32Oz Boston round glass bottles are included
Recommend Products
For battery manufacturing, you may also need below machines:
Click picture to view machine details.
Product Overview

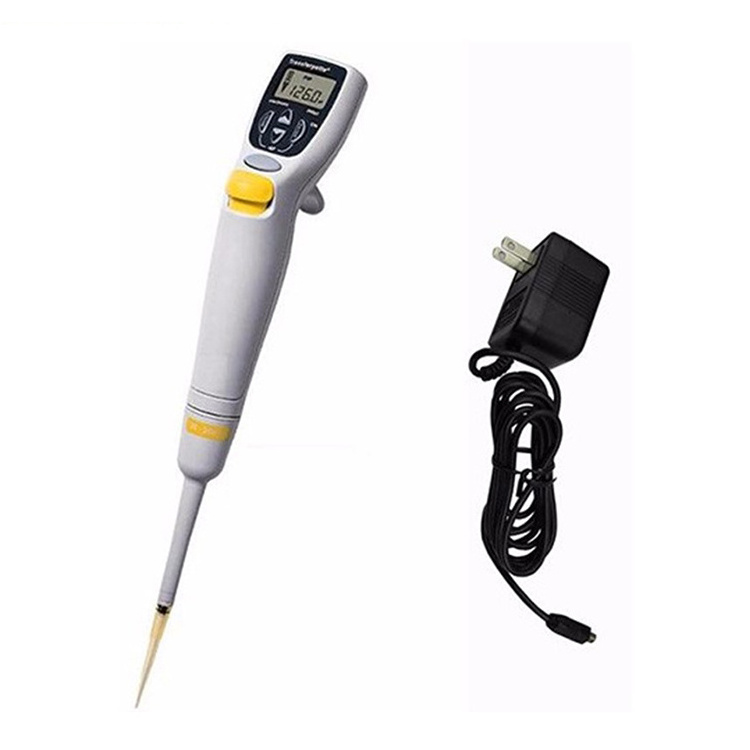

Transfer Pipette Filler Machine For Dispensing Electrolyte
1.XW-BD is an ergonomic, intuitive electronic pipette made in Germany used for dispensing electrolyte (LiPF6 for Li-ion Battery) to small Coin Cells from battery research and material coating for Spin Coating in most material research laboratories.
2.The soft-touch pipette key, adjustable finger-rest, light weight and innovative tip cone minimize static strain and operational forces, reducing the risk of repetitive stress injuries (RSI). This is the first electronic pipette to be awarded the “Ergonomics Approved” and “User-Friendly” certification from the prestigious TÜV testing service, an OSHA-accredited testing laboratory.
2.The soft-touch pipette key, adjustable finger-rest, light weight and innovative tip cone minimize static strain and operational forces, reducing the risk of repetitive stress injuries (RSI). This is the first electronic pipette to be awarded the “Ergonomics Approved” and “User-Friendly” certification from the prestigious TÜV testing service, an OSHA-accredited testing laboratory.
Features
1.Adjustable finger support allows customers to adjust according to their own needs, long time use no longer fatigue.
2.Five pipetting modes, wider application range:
PIP Mode: Standard pipetting Mode.
PlPmix Mode: used for sample mixing.
RevPIP Mode: used for absorbing high viscosity, high vapor pressure or foaming liquid.
GEL Mode: it is specially used for GEL electrophoresis. The speed is steady and slow, which can prevent the sample from spilling and adding sample hole due to the excessive draining speed. It is suitable for absorbing viscous liquid. (1000UL and 5000UL specifications do not have this function)
2.Five pipetting modes, wider application range:
PIP Mode: Standard pipetting Mode.
PlPmix Mode: used for sample mixing.
RevPIP Mode: used for absorbing high viscosity, high vapor pressure or foaming liquid.
GEL Mode: it is specially used for GEL electrophoresis. The speed is steady and slow, which can prevent the sample from spilling and adding sample hole due to the excessive draining speed. It is suitable for absorbing viscous liquid. (1000UL and 5000UL specifications do not have this function)
DISP Mode: suitable for multiple liquid distribution.
3.According to the need, can charge and discharge; The battery has long life and can be used 4,000 times on a single charge.
4.Different adaptors can make the pipette suitable for different brands of nozzles.
5.Pipetting rod can be disassembled, the lower half can be sterilized at high temperature (121℃, 20min), convenient maintenance.
6.Easy calibration without tools.
3.According to the need, can charge and discharge; The battery has long life and can be used 4,000 times on a single charge.
4.Different adaptors can make the pipette suitable for different brands of nozzles.
5.Pipetting rod can be disassembled, the lower half can be sterilized at high temperature (121℃, 20min), convenient maintenance.
6.Easy calibration without tools.
Specifications
|
No
|
Item
|
Parameter
|
|
1
|
Five Operating Modes Simplify Most Pipette Applications
|
Choose from five convenient operating modes that are simple to set and simple to use: standard pipette, sample mixing, reverse pipette, step dispensing, and gel loading. Large, clear LCD screen with clear operational symbols and words makes settings obvious. Step easily between modes without complicated programming. Easily removable autoclavable shaft protects sterile operations.
|
|
2
|
Reduces Imprecision and Inaccuracy
|
The microprocessor controlled pipette automates piston movement to greatly reduce the imprecision and inaccuracy caused by operator inconsistency. Speed controls let you work as fast as you like, or as slowly and carefully as you need. Distinctive “gel mode” discharges the pipette very slowly into electrophoresis gels, and even tracks dispensed volume as you dispense!
|
|
3
|
Operating limits and exclusions Liquids unsuitable for use with the pipette include, but are not limited to, those with
|
High vapor pressure or high viscosity
Reagents that attack PP (single channels) or PP Temperature of instrument and reagent must be between 59° and 40°C (15° and 104°F) |
|
4
|
Standard package
|
Rechargeable Battery
AC Adapter/Charger, (INPUT Power :100-240 V, 50~60 Hz, 0.3A MAX) One pipette tip sample pack (single channel only) Operating manual |
|
5
|
Warranty
|
One Year limited warranty with lifetime support
|
