Quick Details
-
Brand Name:
-
Oasis
-
Model Number:
-
S-07
-
Frame Color:
-
white, brown, dark grey
-
PC Color:
-
Brown, Blue, Clear, dark grey
-
Bolts:
-
Stainless steel
-
Carport Sizes:
-
5.5mx3.0mx3.0m
-
Sail Material:
-
polycarbonate
Quick Details
-
Pressure Treated Wood Type:
-
Heat Treated
-
Sail Finishing:
-
powder-coating
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Oasis
-
Model Number:
-
S-07
-
Frame Color:
-
white, brown, dark grey
-
PC Color:
-
Brown, Blue, Clear, dark grey
-
Bolts:
-
Stainless steel
-
Carport Sizes:
-
5.5mx3.0mx3.0m
-
Sail Material:
-
polycarbonate

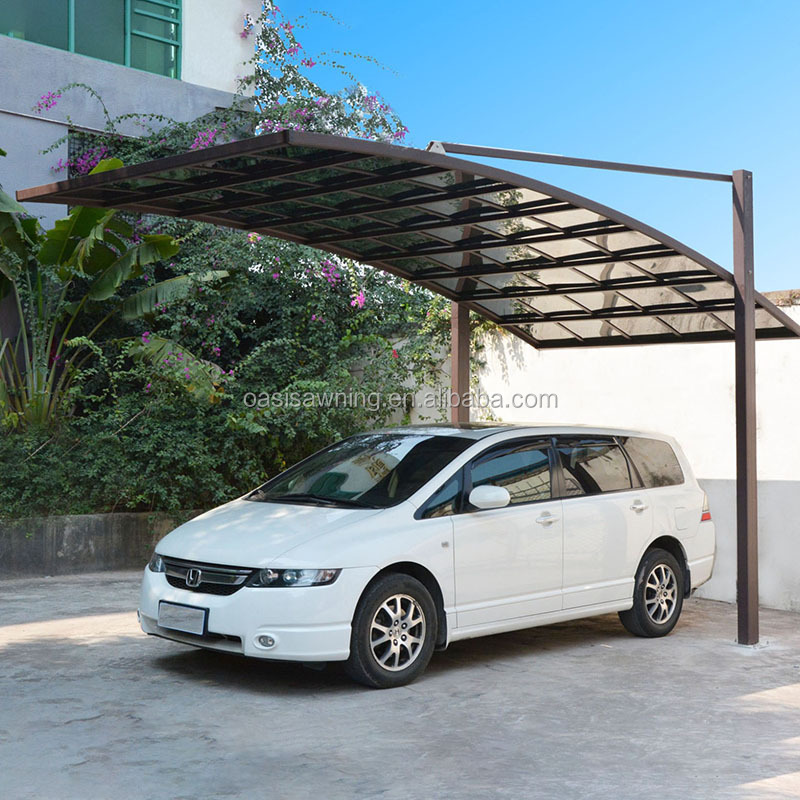

New Design Modern Car Garage Tent Foldable Car Garage Awning Carports
Description: Oasis carport
Model: S-07
Materials used: top-quality aluminum, polycarbonate board
Snow load: snow in 35cm (suggest to remove snow within 35cm)
Wind resist: wind speed at about 23m/s
SIZE CHOICE:
1. R-type: length 5.5m * projection 3.0m * height 3.0m, totally cover 16.5 square meter.
2. M-type: length 5.5m * projection 6.0m *heigh 3.0m, totally cover 33.0 square meter.
3. Y-type: length 5.5m * projection 6.0m *height 3.0m, totally cover 33.0 square meter.
PC Technical Features:
|
performance |
unit |
data |
|
Light transmittance |
% |
83% |
|
Min bending radius |
Mm |
1050mm |
|
K value |
W/m2. °C |
3.9W/ m2 K |
|
Service Temperature |
°C |
-40 ~ 120 °C |
|
strength of extension |
N/mm |
≥ 60N/mm |
|
coefficient of thermal expansion |
mm/m. °C |
0.065mm/m °C |
|
bending strength |
N/mm2 |
100N/mm2 |
|
tensile stress at break |
Mpa |
≥ 65 |
|
distortion temperature |
°C |
125 °C |
|
Elongation at Break |
% |
> 100 |
|
fireproofing grade |
/ |
B1 |
|
elasticity modulus |
Mpa |
2400N/mm2 |
|
specific heat |
KJ/kg · K |
1.17KJ/kg · K |
Aluminum alloy Information
|
Product Name |
aluminum profile, aluminium extrusion, aluminium frame, aluminium section |
|
Material |
Alloy 6063 |
|
temper |
T5 |
|
Color |
beige,black,brown etc. |
|
Surface treatment |
powder coating, |
|
tolerance |
8-14HW |
|
Extrusion lines |
26 lines, from 600-2600 tons |
|
Powder coating |
Powder coating line from GEMA of Switzerland, AKZO powder |
|
Certified |
ISO9001-2000 , ISO14001:2004 , GB5237-2008( equals to BS, AAMA, JISH), etc. |
Solid polycarbonate board colors (thickness in 2.6mm):
Diagram:
Materials thickness:
