Quick Details
-
product name:
-
wellhead assembly Xmas tree
-
Brand name:
-
Luoyang Runcheng
-
rated pressure:
-
2000-20000 PSI
-
size:
-
2 1/16"-5 1/8"
-
working medium:
-
oil, gas, including H2S , CO2 , Fracturing fluid
-
working temperature:
-
-46-121℃
-
Connect type:
-
API SPEC 6A Flanged joint
-
Product specification grade:
-
PSL 1-4
-
Rated material grade:
-
AA to FF
-
Performance requirement grade:
-
PR 1-2
Quick Details
-
Weight (KG):
-
100
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Luoyang Runcheng
-
product name:
-
wellhead assembly Xmas tree
-
Brand name:
-
Luoyang Runcheng
-
rated pressure:
-
2000-20000 PSI
-
size:
-
2 1/16"-5 1/8"
-
working medium:
-
oil, gas, including H2S , CO2 , Fracturing fluid
-
working temperature:
-
-46-121℃
-
Connect type:
-
API SPEC 6A Flanged joint
-
Product specification grade:
-
PSL 1-4
-
Rated material grade:
-
AA to FF
-
Performance requirement grade:
-
PR 1-2

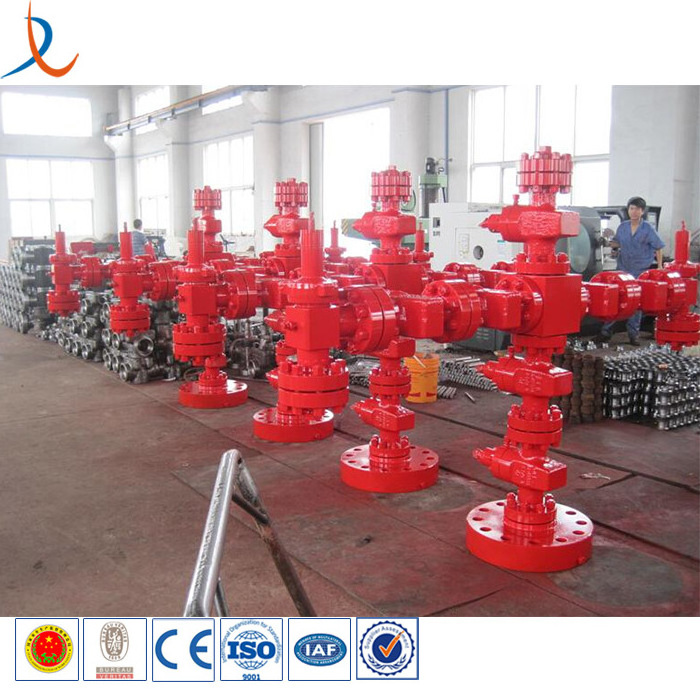

API 6A standard oilfield Christmas tree / wellhead assembly Xmas tree
Oifield wellhead Christmas tree / wellhead assembly Xmas tree is a key equipment to control the pressure in wellhead and adjust the flow rate of oil / gas production operation. It can also be used for acid fracturing, water injection, testing, and other special operations.
|
Parameters |
KQ78/65-105 |
KQ65-70 |
KQ78-70 |
|
Working pressure (Psi) |
15,000 |
10,000 |
10,000 |
|
Working Temperature |
LU, PU |
||
|
Working Medium |
Crude Oil, Natural Gas |
||
|
Main Valve |
PF105-78 |
PF70-65 |
PF70-78 |
|
Wing Valve |
PF105-65 |
PF70-65 |
PF70-78 |
|
Side Way Valve |
PF105-65 |
PF70-65 |
PF70-78 |
|
Top flange of tubing head |
7-1/16-15000 |
7-1/16-10000 |
7-1/16-10000 |
|
Bottom flange of tubing head |
7-1/16-15000 |
7-1/16-10000 |
7-1/16-10000 |
The advantage of Christmas tree / wellhead assembly Xmas tree:
1. Christmas tree can be designed into general or integral structure as required;
2.
Christmas tree can be completed with pneumatic / hydraulic safety valve.
3. It can be classified into two kinds of single-wing and dual-wing.
4. As required, matched choke may be positive choke or adjustable choke alternatively
