Quick Details
-
Brand Name:
-
Sino-galvo
-
Weight (KG):
-
2.45 KG
-
Suitable for:
-
Fiber laser marker
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Spare Parts Type:
-
Laser Component
-
Marketing Type:
-
Hot products 2024
-
Brand Name:
-
Sino-galvo
-
Weight (KG):
-
2.45 KG
-
Suitable for:
-
Fiber laser marker

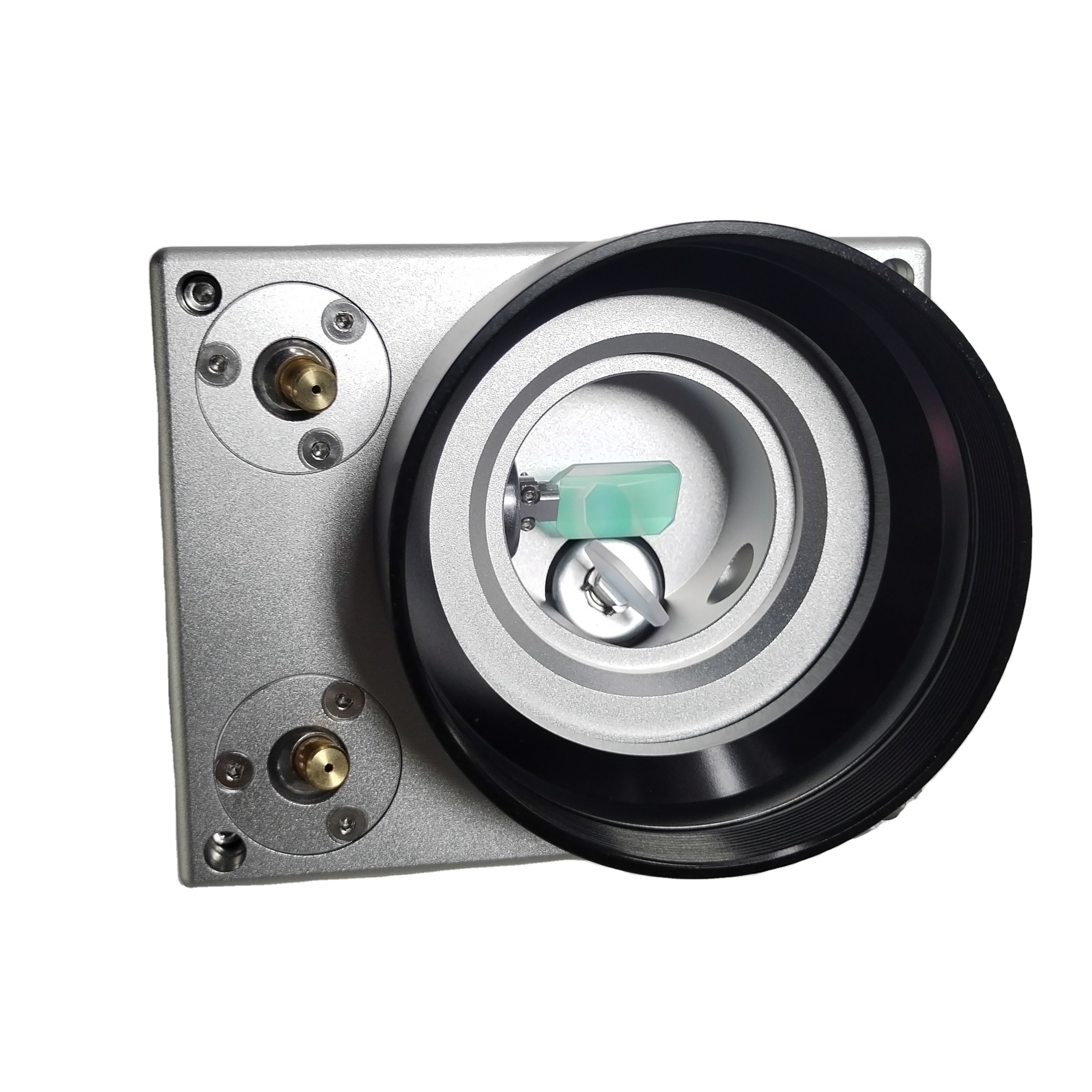

Famous Sino-Galvo scanner head SG7110 (A) with dual-red pointer for assistant focusing
Which is suitable for 10600nm CO2 laser marking machine
The full set including scanner head, switch power supply,
connecting cable between controller & scanner head
Dual-red pointer is very helpful for assistant focusing, which is controlled by a button to switch on/off
MODELS & TECHNICAL SPEC
↓
| MODEL | SG7110-10600nm | SG7110 (A)-10600nm |
| Dual-red pointer | Without | Included |
| Marking Speed | 5000mm/s | 5000mm/s |
| Locating Speed | 8000mm/s | 8000mm/s |
| Repeating accurracy | <8μRad. | <8μRad. |
| Reflective mirror | K9 9.1J/cm^2 | K9 9.1J/cm^2 |
| Input Voltage | ±15VDC | ±15VDC |
| Rated current | 2A | 2A |
| Protocol | XY2-100 | XY2-100 |
| Aperture size | 10mm | 10mm |
| Dimension | 118.5×96.5×93.6mm | 118.5×96.5×93.6mm |
Shipping by carton box
