Product Details

{{item.text}}

Quick Details

Interface Standard:: CCS1 CCS2 GB/T

Output Current:: 75A 150A 200A

Output Power:: 30KW 60KW 120KW

Input Voltage:: 110VAC/220VAC/380VAC

Product name:: mobile ev charging station with ccs2 charger

Size:: Customized Flexible Size

Output voltage:: 200~750Vdc

Capacity:: 30KWH 65KWH 135KWH

Application:: ev, electric car/truck/tractor

Cycle life:: over 3000 times

Battery type:: mobile dc fast charging station 30kw 60kw 120kw

Warranty:: 3 Years

BMS:: Intelligent Intergrated Battery Manager System

OEM/ODM:: Yes(Accepted)

Quick Details

Place of Origin:: Hunan, China

Model Number:: CTS-LR51100

Brand Name:: CTS

Interface Standard:: CCS1 CCS2 GB/T

Output Current:: 75A 150A 200A

Output Power:: 30KW 60KW 120KW

Input Voltage:: 110VAC/220VAC/380VAC

Product name:: mobile ev charging station with ccs2 charger

Size:: Customized Flexible Size

Output voltage:: 200~750Vdc

Capacity:: 30KWH 65KWH 135KWH

Application:: ev, electric car/truck/tractor

Cycle life:: over 3000 times

Battery type:: mobile dc fast charging station 30kw 60kw 120kw

Warranty:: 3 Years

BMS:: Intelligent Intergrated Battery Manager System

OEM/ODM:: Yes(Accepted)

mobile dc fast charging station 30kw 60kw 120kw ev charger mobile electric vehicle charging station with ccs2 charger

Parameters of Mobile Rescue EV Charging Station

Model	30KWH/30KW	65KWH/60KW	132KWH/120KW
Energy	30KWH	65KWH	132KWH
Output power	30KW	60KW	120KW
Output voltage	DC200V-750V	DC200V-750V	DC200V-750V
Output current	0-75A	0-150A	0-200A
Charging gun cable	5M	5M	5M
Display	7 inches	7 inches	7 inches
Working temp.	.-10℃+60℃	.-10℃+60℃	.-10℃+60℃
IP grade	IP54	IP54	IP54
Output Protocol	CCS2	CCS2	CCS2
Input Protocol	CCS2（15KW）	CCS2（30KW）	CCS2（60KW）
Reserved AC Output interface	6kw	20kw	20KW
Size	1100830950	12509251050	2300810820
Weight	450kg	750kg	1300kg

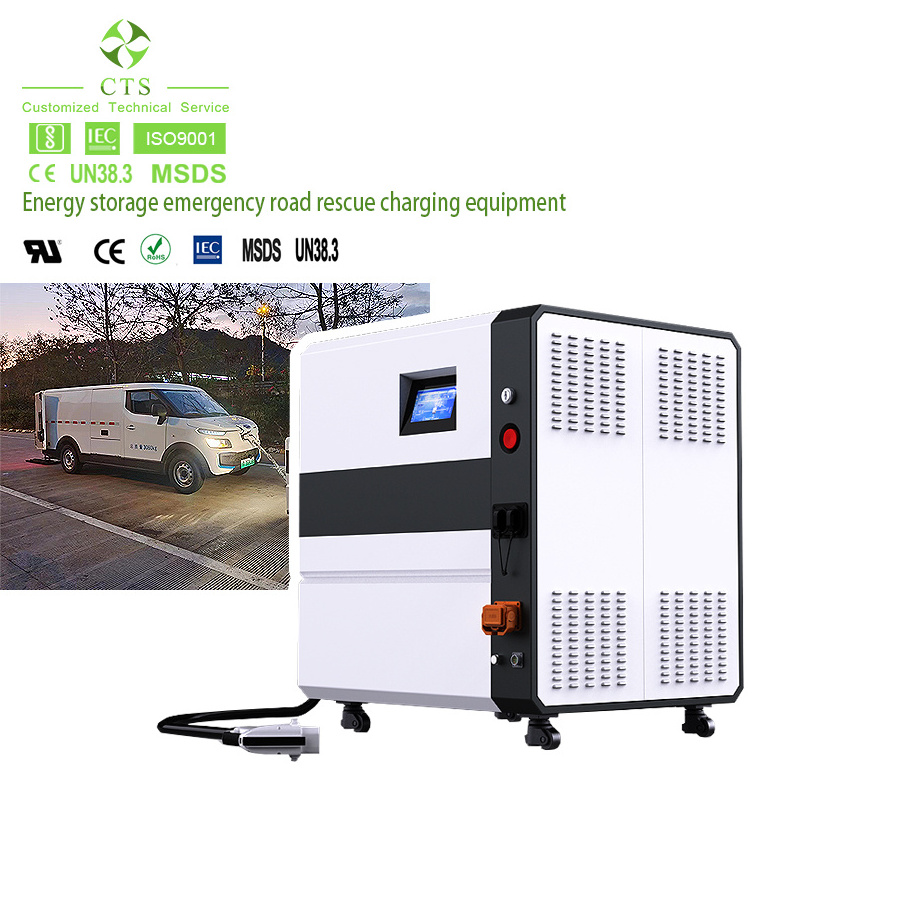

The mobile charging station system integrates lithium batteries and charging piles, which are used for emergency rescue of electric vehicles on the road. It is equipped with energy storage batteries with different battery capacities and outpowers, and supports various charging standards such as CCS1/CCS2 and GB/T.

Most safe LFP technology more powerful

GRADE A++ LiFePO4 battery is an excellent option for energy storage battery due to its

high energy density, long cycle life, low self-discharge rate, high discharge rate, fast charging, and safety. It provides
convenient, efficient, and fast charging services for electric vehiclesf to allowing them to travel longer distances.

Higher charging efficiency

Energy storage and mobile charging stations usually adopt fast charging technology, which

can charge electric vehicles in a short time, improving charging efficiency. It can be fully charged with 20KWH in 10 minutes.

Strong flexibility

Energy storage and mobile charging stations can move to the place where charging services are needed at any time and anywhere, providing more convenient charging services.

Strong scalability

Energy storage and mobile charging stations can be expanded according to demand, moving charging stations to other locations to meet the charging needs of different regions.

What charging standards does it support？

Energy storage and mobile charging stations can be widely used in various fields such as urban areas, commercial areas, logistics, and parking lots, providing convenient, efficient, and environmentally friendly charging services for electric vehicles to meet the needs of different users.

1、How much capacity of the mobile charging station ?
Re: 40kwh/65kwh/130kwh

2、How many KWH can be charged to a vehicle in one hour?
Re: 40kwh

3、How long does it take to fully charge the mobile charging station itself？
Re: 1-2 hours.

4、Is it a DC fast charging output?
Re: Yes,DC fast charging output.

5、ls it safe to use in high temperatures during summer?
Re: Yes, it is safe, as it has a wind/liquid cooling system.

6、Can the charging gun cable be extended?
Re: Yes,it can be extended.

7、ls the device operation complicated?
Re: No, it is not complicated, as there are instructions

8、What charging standards does it support？
Re:CCS1/CCS2/DCCHAdeMO / GB/T

9、Can it be used for home/enterprise energy storage?
Re: Yes,it can

Since 2011, CTS is a manufacturer specializing in one-stop customized lithium battery products, such as electric vehicle batteries, industrial energy storage batteries, home storage battery pack, electric motorcycle batteries, OEM battery pack etc... We have a professional technical team with 10+ years experience, our engineers can design different battery packs according to customer's request. Battery design can be from 12V to 1000V, from 10ah to 1000 ah, OEM available. We always followed Strict quality control ensures the higher quality of products. With the concept of "customers the first, quality the life", we strictly follow ISO 9001 and IATF16949 management system through the production of every detail, each battery must be strictly tested before its delivery.
