Quick Details
-
Brand Name:
-
LONTEN
-
Use:
-
Fiber optic receiver
-
Warranty Time:
-
10 years
Quick Details
-
Type:
-
Fiber optic receiver
-
Model Number:
-
other
-
Place of Origin:
-
China
-
Brand Name:
-
LONTEN
-
Use:
-
Fiber optic receiver
-
Warranty Time:
-
10 years
Features:

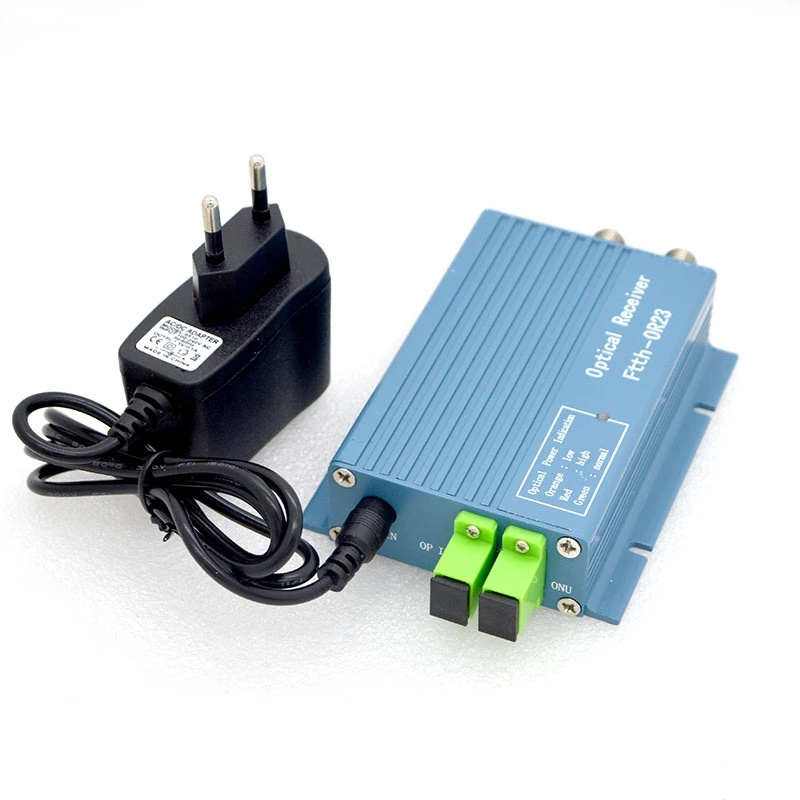

OR23 product is a multi-purpose optical receiver with low heat, high reliability and high index developed by our company
to adapt to the diversification of optical fiber households Receiver, building, building optical receiver, indoor optical
receiver,
it integrates the function of the splitter, can separate the broadband network signal transmitted by the concentric signal to the
optical cat, does not affect the cable TV transmission, it is very good A home-type optical receiver with demultiplexing
Specifications:
1. Product name: Home optical receiver
2. Function: Split wave
3. Scope of application: Cable TV broadband combining
4. Model: OR23
5. Operating wavelengh:1310/1490/1550nm
6. Features: Ultra low light reception Product overview:
Product features:
1.Usehigh-quality E-O photoelectric conversion and gallium arsenide amplification integrated light receiving module.
2.Fully automatic optical AGC control, input optical power -7～-15dBm output level unchanged, CTB, CSO basically unchanged.
3.RF channel full gallium arsenide low noise amplifier device.
4.Reliability: The average trouble-free working time is higher than 40,000 hours.
5.Low power consumption design, using high-efficiency switching power supply, specially designed for CATV, to ensure high
reliability and high stability of the power supply.
6.The power consumption of the whole machine is less than 5W, which will greatly reduce the power consumption when used on a large
scale.
7.Built-in lightning protection device (TVS transient suppression diode), the lightning protection system is strict to ensure the
safe operation of the equipment.
8.Adopt high-quality aluminum alloy shell with good heat dissipation function, and there are many types of shells to choose from.
9.220V power supply, using external power supply, easy to maintain.
10.The components are clean and tidy, the internal and external craftsmanship is good, and the components of the whole machine are
not loosened, which conforms to the national standard.
11.FC / APC and SC / APC are optional.
12.Power Supply: DC 5V / 1A
13.Input voltage: AC100～240V, 50 / 60Hz
14.Power adapter: default European standard plug (if other standard plug is required, please note)
15.Radio frequency interface F type metric system and English system are available.
16.The latest upgraded version
OR23 product is a multi-purpose optical receiver with low heat, high reliability and high index developed by our company
to adapt to the diversification of optical fiber households Receiver, building, building optical receiver, indoor optical
receiver,
it integrates the function of the splitter, can separate the broadband network signal transmitted by the concentric signal to the
optical cat, does not affect the cable TV transmission, it is very good A home-type optical receiver with demultiplexing
Specifications:
1. Product name: Home optical receiver
2. Function: Split wave
3. Scope of application: Cable TV broadband combining
4. Model: OR23
5. Operating wavelengh:1310/1490/1550nm
6. Features: Ultra low light reception Product overview:
Product features:
1.Usehigh-quality E-O photoelectric conversion and gallium arsenide amplification integrated light receiving module.
2.Fully automatic optical AGC control, input optical power -7～-15dBm output level unchanged, CTB, CSO basically unchanged.
3.RF channel full gallium arsenide low noise amplifier device.
4.Reliability: The average trouble-free working time is higher than 40,000 hours.
5.Low power consumption design, using high-efficiency switching power supply, specially designed for CATV, to ensure high
reliability and high stability of the power supply.
6.The power consumption of the whole machine is less than 5W, which will greatly reduce the power consumption when used on a large
scale.
7.Built-in lightning protection device (TVS transient suppression diode), the lightning protection system is strict to ensure the
safe operation of the equipment.
8.Adopt high-quality aluminum alloy shell with good heat dissipation function, and there are many types of shells to choose from.
9.220V power supply, using external power supply, easy to maintain.
10.The components are clean and tidy, the internal and external craftsmanship is good, and the components of the whole machine are
not loosened, which conforms to the national standard.
11.FC / APC and SC / APC are optional.
12.Power Supply: DC 5V / 1A
13.Input voltage: AC100～240V, 50 / 60Hz
14.Power adapter: default European standard plug (if other standard plug is required, please note)
15.Radio frequency interface F type metric system and English system are available.
16.The latest upgraded version
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
