Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Original
-
Model Number:
-
IPC-HDBW2431R-ZAS-S2
-
Video Compression Format:
-
265
-
Resolution:
-
4MP
-
shell:
-
full Metal
-
IR Distance:
-
40m
-
Lens:
-
2.7 mm~13.5 mm
-
Image Sensor:
-
1/3" 4Megapixel progressive CMOS
-
Night vision:
-
Auto IR-CUT
-
Power Supply:
-
12V DC/PoE
-
Protection:
-
IP67, IK10
-
Motion Detection:
-
4 Motion Detection Areas
-
APP:
-
DH partner
Quick Details
-
Special Features:
-
Human Motion Tracking, Face detection, NIGHT VISION, Vandal-proof, Motion Detection, Waterproof / Weatherproof, People Counting, Two-way Audio
-
Function:
-
Waterproof / Weatherproof, Vandal-proof, Motion Detection,
-
Customized support:
-
Online technical support, Customized logo, Software reengineering, OEM, ODM
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Original
-
Model Number:
-
IPC-HDBW2431R-ZAS-S2
-
Video Compression Format:
-
265
-
Resolution:
-
4MP
-
shell:
-
full Metal
-
IR Distance:
-
40m
-
Lens:
-
2.7 mm~13.5 mm
-
Image Sensor:
-
1/3" 4Megapixel progressive CMOS
-
Night vision:
-
Auto IR-CUT
-
Power Supply:
-
12V DC/PoE
-
Protection:
-
IP67, IK10
-
Motion Detection:
-
4 Motion Detection Areas
-
APP:
-
DH partner
We sell
all Hikvison ,Da hua products! OEM All Hikvsion, Da hua products !
If you are Wholesalers/ Contractors/ Retailers/ Installers， please click here contact us to get more discount.
If you are Wholesalers/ Contractors/ Retailers/ Installers， please click here contact us to get more discount.
Product Description

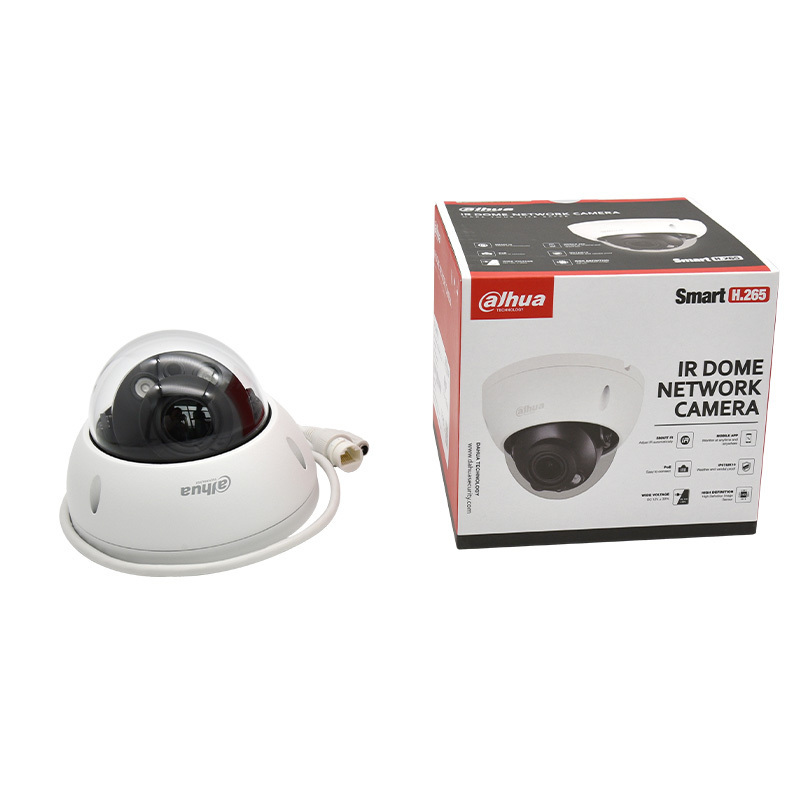

4MP Lite IR Motorized Vari-focal Lens Dome Waterproof Network Camera POE IP Camera IPC-HDBW2431R-ZAS-S2
IPC-HDBW2431R-ZAS-S2
4MP Lite IR Vari-focal Dome Network Camera
> 4MP, 1/3” CMOS image sensor, low illuminance, high image definition
> Outputs 4MP (2560 × 1440)@25/30 fps, Max. supports 4MP (2688 × 1520)@20 fps
> high compression rate, ultra-low bit rate
> Built-in IR LED, max IR distance: 40 m
> ROI, SMART H.264+ , flexible coding, applicable to various bandwidth and storage environments
4MP Lite IR Vari-focal Dome Network Camera
> 4MP, 1/3” CMOS image sensor, low illuminance, high image definition
> Outputs 4MP (2560 × 1440)@25/30 fps, Max. supports 4MP (2688 × 1520)@20 fps
> high compression rate, ultra-low bit rate
> Built-in IR LED, max IR distance: 40 m
> ROI, SMART H.264+ , flexible coding, applicable to various bandwidth and storage environments
>
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
> Intelligent detection: Intrusion, tripwire
> Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal ac- cess, voltage detection
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 GB Micro SD card
> 12V DC/PoE power supply
> IP67, IK10 protection
> Intelligent detection: Intrusion, tripwire
> Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal ac- cess, voltage detection
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 GB Micro SD card
> 12V DC/PoE power supply
> IP67, IK10 protection
Company
Hot sale models
|
NVR2104HS-P-4KS2
|
NVR5416-4KS2
|
IPC-HDBW3541RP-ZAS-27135
|
IPC-HFW2230SP-S-S2
|
|
NVR2108HS-8P-4KS2
|
NVR5432-16P-4KS2E
|
IPC-HFW3549EP-AS-LED
|
IPC-HDW2230TP-AS-S2
|
|
NVR2104HS-P-I2
|
NVR5432-16P-I
|
IPC-HDW3549TMP-AS-LED
|
IPC-HDBW2230EP-S-S2
|
|
NVR2108HS-8P-I2
|
NVR5432-16P-I/L
|
IPC-HDW3549HP-AS-PV
|
IPC-HDW1431SP-S4
|
|
NVR2216-16P-I2
|
NVR5432-4KS2
|
IPC-HFW3441TP-ZAS-27135
|
IPC-HDBW1431EP-S4
|
|
NVR4104-4KS2
|
NVR5464-4KS2
|
IPC-HFW2831TP-ZAS-S2
|
IPC-HFW1431S1P-A-S4
|
|
NVR4104HS-4KS2
|
NVR5816-4KS2
|
IPC-HDBW2831RP-ZAS-27135-S2
|
IPC-HDW1431T1P-A-S4-QH2
|
|
NVR4104HS-4KS2/L
|
NVR5832-4KS2
|
IPC-HDW2831TP-ZS-27135-S2
|
IPC-HDBW1435EP-W-S2
|
|
NVR4108-4KS2/L
|
NVR5832-16P-4KS2E
|
IPC-HFW2831TP-ZS-27135-S2
|
IPC-HFW1435SP-W-S2
|
|
NVR4108HS-4KS2/L
|
NVR5864-4KS2
|
IPC-HFW2831TP-AS-S2
|
IPC-HFW1239S1P-LED-S5-QH2
|
|
NVR4116HS-4KS2/L
|
NVR608-32-4KS2
|
IPC-HDBW2831EP-S-S2
|
IPC-HFW1230SP-S5
|
|
NVR4116-4KS2/L
|
NVR608-64-4KS2
|
IPC-HDW2831TP-AS-S2
|
IPC-HDW1230SP-S5
|
|
NVR4104-P-4KS2/L
|
NVR616-64-4KS2
|
IPC-HFW2831SP-S-S2
|
IPC-HDBW1230EP-S5
|
|
NVR4108-8P-4KS2/L
|
NVR616-128-4KS2
|
IPC-HDW2831TMP-AS-S2
|
SD8A840WA-HNF
|
|
NVR4104HS-P-4KS2/L
|
IPC-EBW81242P
|
IPC-HDW2531TMP-AS-S2
|
SD6AL445XA-HNR-IR
|
|
NVR4108HS-8P-4KS2/L
|
IPC-EW5541P-AS
|
IPC-HDBW2531EP-S-S2
|
SD59430U-HNI
|
|
NVR4204-4KS2/L
|
IPC-EB5541P-AS
|
IPC-HFW2531SP-S-S2
|
SD5A445XA-HNR
|
|
NVR4208-4KS2/L
|
IPC-HFW5831EP-ZE-2712
|
IPC-HDBW2431RP-ZAS-27135-S2
|
SD59432XA-HNR
|
|
NVR4216-4KS2/L
|
IPC-HDBW5831EP-ZE-2712
|
IPC-HDBW2431RP-ZS-27135-S2
|
SD59225U-HNI
|
|
NVR4232-4KS2/L
|
IPC-HDBW5831RP-ZE-2712
|
IPC-HDW2431TP-ZS-27135-S2
|
SD49425XB-HNR
|
|
NVR4204-P-4KS2/L
|
IPC-HDW5442TMP-AS-LED
|
IPC-HFW2431TP-ZS-27135-S2
|
SD49225XA-HNR
|
|
NVR4208-8P-4KS2/L
|
IPC-HDW3849HP-AS-PV
|
IPC-HDW2431TMP-AS-S2
|
SD49225-HNR-ZB
|
|
NVR4216-16P-4KS2/L
|
IPC-HFW3849T1P-AS-PV
|
IPC-HDW2431TP-AS-S2
|
SD42212T-HN-S2
|
|
NVR5208-4KS2
|
IPC-HFW3841EP-AS
|
IPC-HFW2431SP-S-S2
|
NKB1000
|
|
NVR5216-4KS2
|
IPC-HDBW3841EP-AS
|
IPC-HDBW2431EP-S-S2
|
SD22404T-GN-S2
|
|
NVR5232-4KS2
|
IPC-HDBW3541F-AS-M
|
IPC-HDBW2431FP-AS-S2
|
SD22404T-GN-W-S2
|
|
NVR5208-8P-4KS2E
|
IPC-HDW3841TMP-AS
|
IPC-HFW2431TP-AS-S2
|
SD29204UE-GN
|
|
NVR5216-16P-4KS2E
|
IPC-HFW3541EP-AS
|
IPC-HFW2439MP-AS-LED-B-S2
|
SD3A400-GNP-ZIZJ-B-PV-0400
|
|
NVR5216-16P-I/L
|
IPC-HDW3541TMP-AS
|
IPC-HFW2439SP-SA-LED-S2
|
SD1A404XB-GNR
|
|
NVR5232-16P-4KS2E
|
IPC-HFW3541TP-ZAS-27135
|
IPC-HDW2439TP-AS-LED-S2
|
SD1A404XB-GNR-W
|
Specification
|
Camera
|
|
|
Image Sensor
|
1/3” 4Megapixel progressive CMOS
|
|
Max. Resolution
|
2688 (H) × 1520 (V)
|
|
ROM
|
128 MB
|
|
RAM
|
128 MB
|
|
Scanning System
|
Progressive
|
|
Electronic Shutter Speed
|
Auto/Manual 1/3 s–1/100000 s
|
|
Min. Illumination
|
0.008 Lux @ F1.5
|
|
S/N Ratio
|
>56 dB
|
|
Illumination Distance
|
40 m (131.23 ft)
|
|
Illuminator On/Off Control
|
Auto/Manual
|
|
Illuminator Number
|
2 (IR LED)
|
|
Pan/Tilt/Rotation Range
|
Pan: 0°–355°
|
|
|
Tilt: 0°–75°
|
|
|
Rotation: 0°–355°
|
|
Lens
|
|
|
Lens Type
|
Motorized vari-focal
|
|
Mount Type
|
φ14
|
|
Focal Length
|
2.7 mm–13.5 mm
|
|
Max. Aperture
|
F1.5
|
|
Field of View
|
Horizontal: 104°–27°
|
|
|
Vertical: 55°–15°
|
|
|
Diagonal: 124°–31°
|
|
Iris Type
|
Fixed
|
|
Close Focus Distance
|
0.8 m–0.8 m (2.62 ft–2.62 ft)
|
|
DORI Distance
|
Lens
|
|
|
W
|
|
|
T
|
|
Smart Event
|
|
|
IVS
|
Tripwire; intrusion
|
|
Video
|
|
|
Video Compression
|
H.264; H.264B; MJPEG (only supported by the sub stream)
|
|
Smart Codec
|
Smart H.264+
|
|
Video Frame Rate
|
Main stream:
|
|
|
2688 × 1520 (1 fps-20 fps)
|
|
|
2560 × 1440 (1 fps-25/30 fps)
|
|
|
Sub stream:
|
|
|
704 × 576 (1 fps-25 fps)
|
|
|
704 × 480 (1 fps-30 fps)
|
|
Stream Capability
|
2 streams
|
|
Resolution
|
2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p
(1280 × 720); D1 (704 × 576/704 × 480); VGA (640 ×480); CIF (352 × 288/352 × 240) |
|
Bit Rate Control
|
CBR/VBR
|
|
Video Bit Rate
|
H.264: 32 kbps–6144 kbps
|
|
Day/Night
|
Auto(ICR)/Color/B/W
|
|
BLC
|
Yes
|
|
HLC
|
Yes
|
|
WDR
|
120 dB
|
|
White Balance
|
Auto/natural/street lamp/outdoor/manual/regional custom
|
|
Gain Control
|
Auto/Manual
|
|
Noise Reduction
|
3D NR
|
|
Motion Detection
|
OFF/ON (4 areas, rectangular)
|
|
Region of Interest(RoI)
|
Yes (4 areas)
|
|
Smart Illumination
|
Yes
|
|
Image Rotation
|
0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution and lower.)
|
|
Mirror
|
Yes
|
|
Privacy Masking
|
4 areas
|
|
Audio
|
|
|
Audio Compression
|
G.711a; G.711Mu; G.726
|
|
Alarm
|
|
|
Alarm Event
|
No SD card; SD card full; SD card error; network disconnection; IP conflict; motion detection; video tampering; tripwire;
intrusion; illegal access; voltage detection; audio detection; safety exception; local alarm |
|
Network
|
|
|
Network
|
RJ-45 (10/100 Base-T)
|
|
SDK and API
|
Yes
|
|
Cyber Security
|
Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering;
generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
|
Protocol
|
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP;
NFS; PPPoE; Bonjour |
|
Interoperability
|
ON-VIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
|
|
User/Host
|
20
|
|
Storage
|
FTP; Micro SD card (support max. 256 G); NAS; SFTP
|
|
Browser
|
IE
|
|
|
Chrome
|
|
|
Firefox
|
|
Management Software
|
Smart PSS; DSS; DMSS
|
|
Mobile Phone
|
IOS; Android
|
|
Certification
|
|
|
Certifications
|
CE-LVD: EN62368-1
|
|
|
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
|
|
|
FCC: 47 CFR FCC Part 15, Subpart B
|
|
|
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
|
|
Port
|
|
|
Audio Input
|
1 channel (RCA port)
|
|
Audio Output
|
1 channel (RCA port)
|
|
Alarm Input
|
1 channel In: 5mA 5VDC
|
|
Alarm Output
|
1 channel Out: 300mA 12VDC
|
|
Power
|
|
|
Power Supply
|
12V DC/PoE (802.3af)
|
|
Power Consumption
|
< 6.5W
|
|
Environment
|
|
|
Operating Conditions
|
-30°C to +60°C (-22°F to +140°F)/less than ≤ 95% RH
|
|
Storage Temperature
|
-40°C to +60°C (-40°F to +140°F)
|
|
Protection
|
IP67, IK10
|
|
Structure
|
|
|
Casing
|
Metal
|
|
Dimensions
|
Φ122 mm × 88.9 mm (Φ4.80" × 3.50")
|
|
Net Weight
|
0.47 kg (1.04 lb)
|
|
Gross Weight
|
0.63 kg (1.39 lb)
|
