Quick Details
-
BCD Curve:
-
C
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CNFLY/OEM
-
Model Number:
-
F362
-
Rated Frequency (Hz):
-
50/60
-
Number of Pole:
-
2
-
No. of Pole:
-
2P,4P
-
Material:
-
Bakelite
-
Leakage action current:
-
30ma,100ma,300ma
-
Application:
-
Earth Leakage Protection
-
Standard:
-
IEC61008-1
-
Certificate:
-
CE CB ISO9001
-
Mechanical Life:
-
10000 Times
-
Installation:
-
35mm DIN Rail
-
Warranty:
-
2year
Quick Details
-
Breaking Capacity:
-
6KA
-
Rated Voltage:
-
240/415V
-
Rated Current:
-
10-100A
-
BCD Curve:
-
C
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CNFLY/OEM
-
Model Number:
-
F362
-
Rated Frequency (Hz):
-
50/60
-
Number of Pole:
-
2
-
No. of Pole:
-
2P,4P
-
Material:
-
Bakelite
-
Leakage action current:
-
30ma,100ma,300ma
-
Application:
-
Earth Leakage Protection
-
Standard:
-
IEC61008-1
-
Certificate:
-
CE CB ISO9001
-
Mechanical Life:
-
10000 Times
-
Installation:
-
35mm DIN Rail
-
Warranty:
-
2year
Product Description

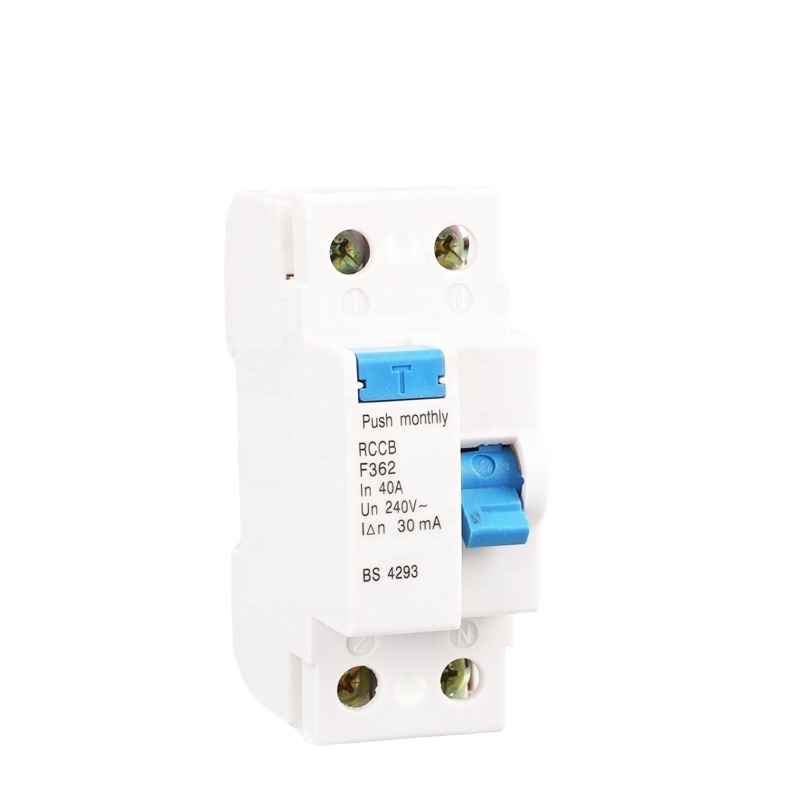

F360(F362,F364) series Residual Current Circuit Breaker without over current protection conforms to the standards of GB16916.1.IEC1008, BS4293 etc. It is used in the circuits of AC 50~60Hz, single phase 230V(220V), three phases 400V (380V) in industrial &mining enterprises, commercial buildings and housing for protection of personal electric shock hazard and electric equipment andfor unfrequent switch over of circuits under normal conditions.
Specification
|
item
|
RCCB
|
|
Place of Origin
|
China
|
|
|
Zhejiang
|
|
Brand Name
|
CNFLY/OEM
|
|
Model Number
|
F362
|
|
Breaking Capacity
|
6KA
|
|
Rated Voltage
|
240/415V
|
|
Rated Current
|
16-63A
|
|
BCD Curve
|
C
|
|
Type
|
RCCB
|
|
Rated Frequency (Hz)
|
50/60
|
|
Number of Pole
|
2
|
|
Protection
|
Li
|
|
No. of Pole
|
2P,4P
|
|
Material
|
PA66
|
|
Leakage action current
|
30ma,100ma,300ma
|
|
Type
|
electronic,electromagnetic
|
|
Application
|
Earth Leakage Protection
|
|
Standard
|
IEC61008-1
|
|
Certificate
|
CE CB ISO9001
|
|
Mechanical Life
|
10000 Times
|
|
Installation
|
35mm DIN Rail
|
|
Warranty
|
2year
|
Packing & Delivery
1.Carton size:520*420*200mm
2.GW:27KGS NW:26KGS
3.Packing No.:100PCS
