Quick Details
-
Brand Name:
-
comforplanet
-
Weight:
-
10 KG
-
Dimension(L*W*H):
-
Various Size
-
Working Temperature Range:
-
0 °C (32 °F) - 185 °C (365 °F)
-
Product Name:
-
Shell and Tube Heat Exchanger
-
Material:
-
stainless steel, titanium
-
Application:
-
for swimming pools
-
Standard:
-
ASME standard 8-1
-
Feature:
-
Big flow volume.
-
Fluid:
-
liquid/liquid
-
Temperature Min:
-
0 °C (32 °F)
-
Temperature Max:
-
185 °C (365 °F)
-
Power Min:
-
16,000 W (54,594.24 BTU/h)
-
Power Max:
-
350,000 W (1,194,249 BTU/h)
-
Marketing Type:
-
New Product 2022
Quick Details
-
Structure:
-
Shell and Tube Heat Exchanger
-
Voltage:
-
DC12/24V
-
Place of Origin:
-
GUA
-
Brand Name:
-
comforplanet
-
Weight:
-
10 KG
-
Dimension(L*W*H):
-
Various Size
-
Working Temperature Range:
-
0 °C (32 °F) - 185 °C (365 °F)
-
Product Name:
-
Shell and Tube Heat Exchanger
-
Material:
-
stainless steel, titanium
-
Application:
-
for swimming pools
-
Standard:
-
ASME standard 8-1
-
Feature:
-
Big flow volume.
-
Fluid:
-
liquid/liquid
-
Temperature Min:
-
0 °C (32 °F)
-
Temperature Max:
-
185 °C (365 °F)
-
Power Min:
-
16,000 W (54,594.24 BTU/h)
-
Power Max:
-
350,000 W (1,194,249 BTU/h)
-
Marketing Type:
-
New Product 2022
Products Description

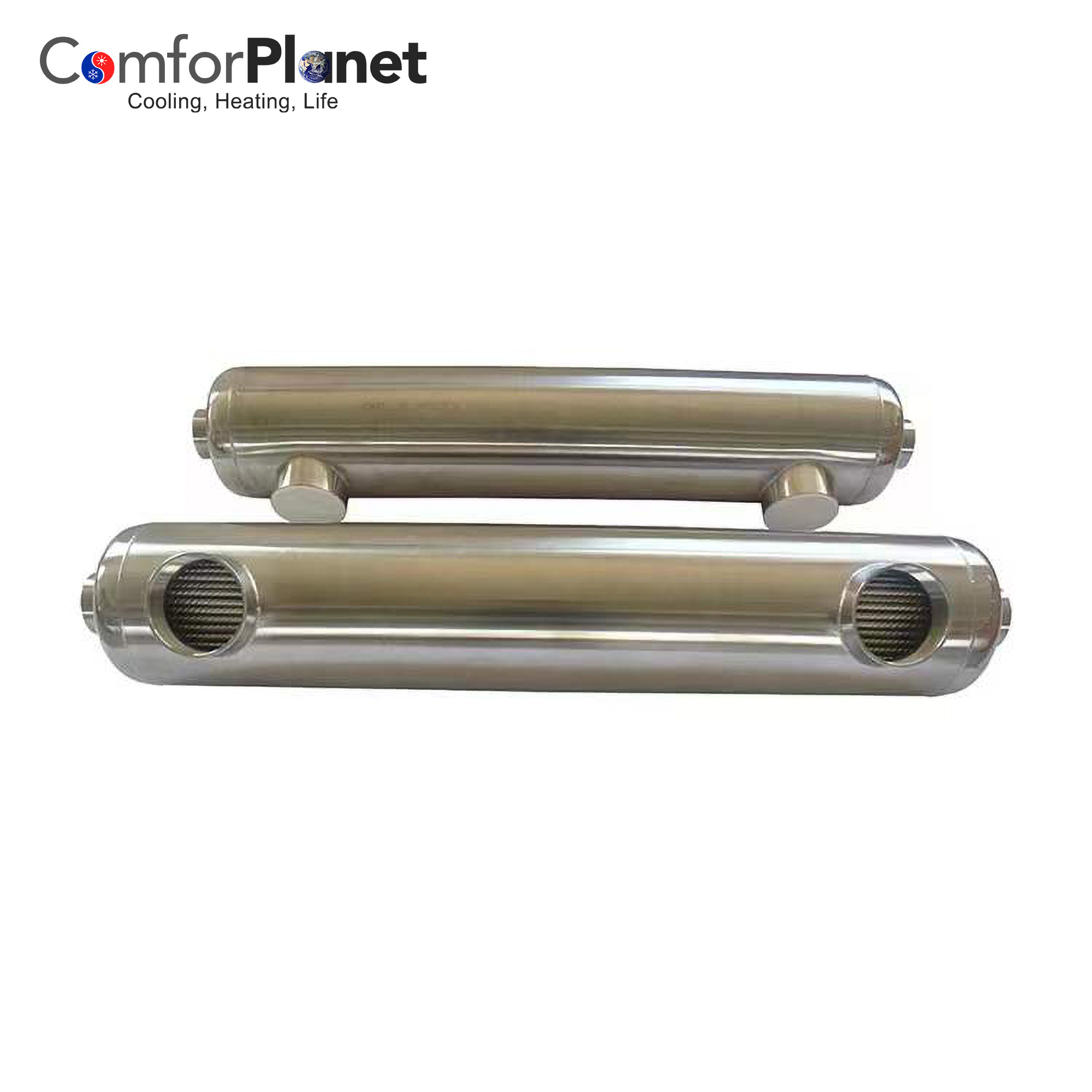

Shell and Tube Heat Exchanger
* High efficiency, coefficient up to 10000W/m2C.
* Heat exchanging capacity 3-7 times to traditional equipments.
* Compact configure, occupy small area and one tenth as the traditional equipments.
* Stainless steel and/or titanium material,endure high temperature, pressure and corruption.
* Helix screw thread elasticity heat exchanger bundle, eliminate the stress.
* Design flux speed is 5.5m/s, less dirt.
* ASME standard 8-1.
* Big flow volume.
* Easy installation and durable.
Specifications of stainless steel pool heat exchanger
|
Model
|
A(mm)
|
B(mm)
|
C
|
D
|
|
TPL-55K
|
60
|
360
|
3/4"
|
1"
|
|
TPL-85K
|
60
|
520
|
3/4"
|
1"
|
|
TPL-155K
|
76
|
450
|
1"
|
1-1/2"
|
|
TPL-210K
|
76
|
570
|
1-1/2"
|
1-1/2"
|
|
TPL-300K
|
76
|
780
|
1-1/2"
|
2"
|
|
TPL-360K
|
89
|
830
|
1-1/2"
|
2"
|
|
TPL-600K
|
114
|
900
|
2"
|
2-1/2"
|
|
TPL-1200K
|
133
|
900
|
2"
|
2-1/2"
|
|
TPL-2400K
|
168
|
950
|
2"
|
4"
|
|
TPL-3000K
|
168
|
1100
|
2-1/2"
|
4"
|
|
TPL-3600K
|
168
|
1300
|
2-1/2"
|
4"
|
|
TPL-4500K
|
219
|
1070
|
2-1/2"
|
4"
|
|
TPL-5000K
|
219
|
1120
|
2-1/2"
|
4"
|
|
TPL-6000K
|
219
|
1220
|
2-1/2"
|
4"
|
Technical Parameters:
|
Model
|
Nominal Capacity
|
|
Pool Capacity
|
|
Heat Transfer Area
|
||
|
|
KW
|
Kbtu/hr
|
Gallons@1° F/hr
|
Liters@1° C/hr
|
m²
|
||
|
TPL-55K
|
16
|
55
|
4700
|
32031
|
0.15
|
||
|
TPL-85K
|
25
|
86
|
7300
|
49735
|
0.25
|
||
|
TPL-155K
|
45
|
155
|
13300
|
90613
|
0.33
|
||
|
TPL-210K
|
61
|
210
|
18000
|
122634
|
0.44
|
||
|
TPL-300K
|
88
|
300
|
25800
|
175776
|
0.64
|
||
|
TPL-360K
|
105
|
360
|
31500
|
214610
|
0.85
|
||
|
TPL-600K
|
175
|
600
|
52500
|
357684
|
1.55
|
||
|
TPL-1200K
|
352
|
1200
|
105600
|
719455
|
2.01
|
||
|
TPL-2400K
|
704
|
2400
|
211200
|
1438910
|
4.47
|
||
|
TPL-3000K
|
880
|
3000
|
264000
|
1798638
|
5.30
|
||
|
TPL-3600K
|
1056
|
3600
|
316800
|
2158365
|
6.42
|
||
|
TPL-4500K
|
1320
|
4500
|
396000
|
2697956
|
8.46
|
||
|
TPL-5000K
|
1467
|
5000
|
439000
|
3000000
|
8.87
|
||
|
TPL-6000K
|
1760
|
6000
|
526800
|
3600000
|
10.64
|
||
