- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Drinks
-
Weight:
-
550 KG
-
Dimension(L*W*H):
-
L2200*W2100*H2300mm
-
Product name:
-
Automatic bottle unscrambler
-
Model number:
-
LP-16
-
Machine material:
-
304 stainless steel
-
Function:
-
Plastic bottle arrangement
-
Gas source pressure:
-
0.7Mpa
-
suitable bottle diameter:
-
45-95mm
-
production capacity:
-
1000-9000bph
-
After-sales Service Provided:
-
Engineers
-
Quality Guarante:
-
One year warranty and lifetime service
-
Advantage:
-
20 Years Experiences
Quick Details
-
Voltage:
-
220v, 380v
-
Power:
-
2.5kw
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Drinks
-
Weight:
-
550 KG
-
Dimension(L*W*H):
-
L2200*W2100*H2300mm
-
Product name:
-
Automatic bottle unscrambler
-
Model number:
-
LP-16
-
Machine material:
-
304 stainless steel
-
Function:
-
Plastic bottle arrangement
-
Gas source pressure:
-
0.7Mpa
-
suitable bottle diameter:
-
45-95mm
-
production capacity:
-
1000-9000bph
-
After-sales Service Provided:
-
Engineers
-
Quality Guarante:
-
One year warranty and lifetime service
-
Advantage:
-
20 Years Experiences

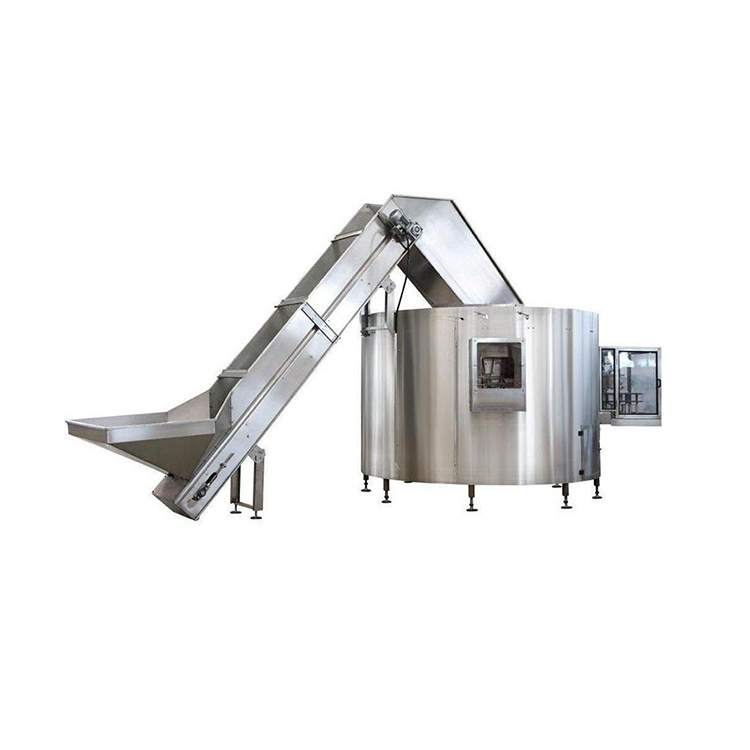

Automatic High Speed Drinks Bottle Sorting Machine PET Bottle Unscrambler Machine
This bottle unscrambler machine is suitable for unscrambling disorder polyester bottles, making them order and in one line, then discharge them by vacuum conveyor.
|
Apply to the bottle diameter
|
Φ45-Φ95mm
|
|
|
||
|
Height for bottle
|
70-240mm
|
|
|
||
|
Production capacity
|
≤200bottles/min (Note The diameter of bottle Φ45 mm,height 80 mm 200 bottles/min The diameter of bottleΦ95 mm,height240 mm 90 bottles/min )
|
|
|
||
|
Air pressure
|
0.5-0.7Mpa
|
|
|
||
|
Power source
|
220/380V 50HZ(Customized)
|
|
|
||
|
Total power
|
1.5KW
|
|
|
||
|
Weight
|
450 kg (Bottle elevator 100kg)
|
|
|
||
|
External dimensions
|
2600×1500×1500(L×W×H) mm
|
|
|
||
|
elevator External dimensions
|
2200×1200×1900(L×W×H) mm
|
|
|
||
Q:What are the characteristics of this bottle unscrambler?
A:
1.
suitable for plastic bottles
2.
different bottles can be applied by changing bottle moulds
3.
will not damage the plastic bottles
4.PLC controled and touch screen
5. if any fault, bottle unscrambler will automatically stop
6.bottle lifting will be applied
7.the directtion of bottle lifting can be various
8.can be connected with filling machine by air conveyor
9.The appliances used in the machine are branded products
Q:Will these products be what I want?
A:
If there is no product you want here, please click
"here"
to return to the homepage.
What kind of service can your company provide?
A:
Throughout the cooperation process, our company can provide the following three services.
1.Sample service
We can send you a video of the work of this machine.
You are very welcome to visit our company and check the operation of the machine on site. We will send someone to pick you up at the airport.
2.Customized service
We can customize the machine according to the customer's requirements (such as material, power, filling type, bottle size, etc.), and our engineers will also provide professional advice to help customers better establish the ideal factory.
3.After sales service
After receiving the final payment, we will provide the bill of lading in time to ensure that the customer receives the goods as soon as possible.
Once you have completed all the preparations, we will send engineers to your factory to install the machines and train your staff for free until they are able to operate the machine well.
We can provide one year warranty and spare parts, and free lifetime technical service.
