Cost-effective
Strong neodymium material
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
QD MAGNET
-
Model Number:
-
N35 N38 N40 N42 N45 N48 N52
-
Delivery Time:
-
3-12days
-
Size:
-
D43 D66 D88
-
Working Temperature:
-
-40℃~80℃
-
Material:
-
neodymium magnet+ steel
-
Coating:
-
Rubber Coated
-
SST Testing of magnet:
-
24~72 hours
-
Density:
-
7.45g/mm3
-
Certificate of magnet:
-
RoHS, Reach, ISO9001:2008
-
HS Code:
-
8505111000
Quick Details
-
Tolerance:
-
±1%
-
Grade:
-
Metal +neodymium magnet
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
QD MAGNET
-
Model Number:
-
N35 N38 N40 N42 N45 N48 N52
-
Delivery Time:
-
3-12days
-
Size:
-
D43 D66 D88
-
Working Temperature:
-
-40℃~80℃
-
Material:
-
neodymium magnet+ steel
-
Coating:
-
Rubber Coated
-
SST Testing of magnet:
-
24~72 hours
-
Density:
-
7.45g/mm3
-
Certificate of magnet:
-
RoHS, Reach, ISO9001:2008
-
HS Code:
-
8505111000
Customized Rubber based
Product Description

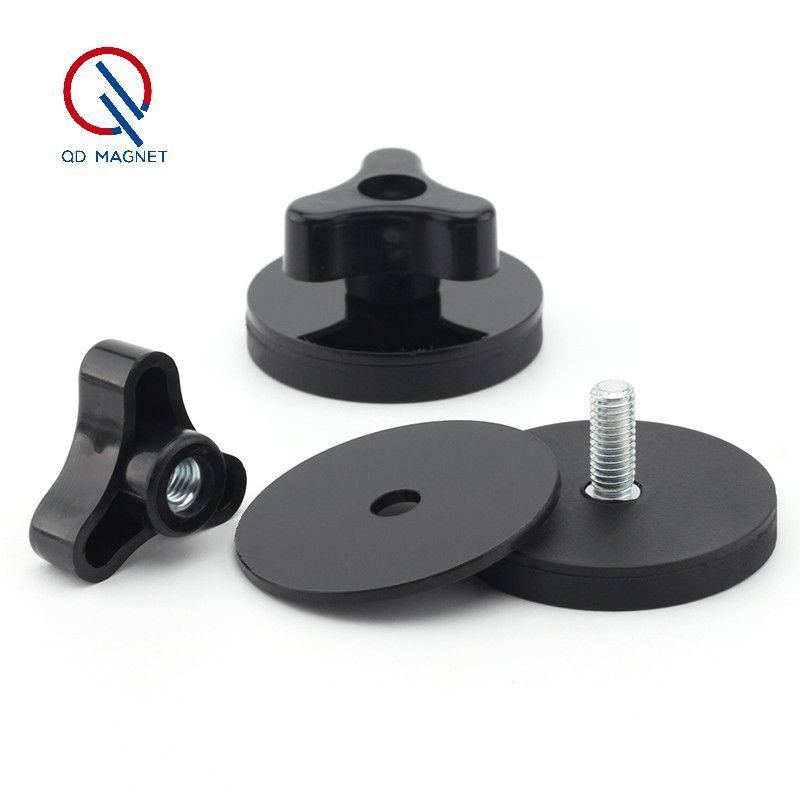

Strong Rubber Coated Magnet
Product features
: The rubber-coated magnet sucker is composed of a plurality of ammonium-iron magnets arranged in a specific order to produce a strong closed magnetic field. The rubber-coated magnet sucker is treated with an environmentally friendly TPE rubber seal coating to avoid direct contact between the magnet and the metal surface, thereby effectively preventing the adsorption surface from being scratched by the strong magnet, and also protecting the chain iron from loss and breakage due to excessive suction. Greatly increase the service life of the magnet.
Application :
Rubber-coated magnet suction cups are mainly used in all kinds of film positioning, car roof lamp billboard fixation, wedding car flower plate, camera fixation, advertising light box, broadcasting, speakers, various industrial tooling, factory equipment installation and fixing...
Instructions:
for use can be directly attached to the surface of the sucked object. The product has a strong suction power, please use it with caution, and try to stay away from banks and IC cards to avoid degaussing.
Product specifications External thread convex screw hole flat screw hole
|
Model
|
D(mm)
|
M(mm)
|
H(mm)
|
Weight(g)
|
Breakaway
(Kg) |
|
L-D22..
|
22
|
M3-M6,1/4-20
|
6
|
10
|
2
|
|
L-D31..
|
31
|
M3-M6,1/4-20
|
6
|
18
|
6
|
|
L-D36..
|
36
|
M3-M6,1/4-20
|
7
|
23
|
7
|
|
L-D43
|
43
|
M3-M6,1/4-20
|
6
|
29
|
8
|
|
L-D66
|
66
|
M3-M6,1/4-20
|
8
|
100
|
20
|
|
L-D88
|
88
|
M3-M6,1/4-20
|
8.5
|
186
|
42
|
|
L-D135
|
135
|
M3-M6,1/4-20
|
8.5
|
428
|
55
|
|
Model
|
D(mm)
|
M(mm)
|
D1(mm)
|
h(mm)
|
H(mm)
|
Weight(g)
|
Breakaway
(Kg) |
|
L-TD22
|
22
|
4
|
8
|
6
|
11.5
|
12
|
5
|
|
L-TD31..
|
31
|
4
|
8
|
6
|
11.5
|
19
|
6
|
|
L-TD36..
|
36
|
4
|
8
|
7
|
11.5
|
24
|
7
|
|
L-TD43
|
43
|
4
|
8
|
6
|
12
|
33
|
8
|
|
L-TD66
|
66
|
5
|
10
|
8
|
14.2
|
104
|
20
|
|
L-TD88
|
88
|
8
|
12
|
8.5
|
15.8
|
200
|
42
|
|
Model
|
D
(mm) |
M
|
h
(mm) |
H
(mm) |
Weight
(g) |
Breakaway
(Kg) |
|
L-C22
|
22
|
M4
|
6
|
12.5
|
14
|
5
|
|
L-C34
|
34
|
M4
|
8
|
16.5
|
25
|
6
|
|
L-C43
|
43
|
M6
|
6
|
21
|
32
|
8
|
|
L-C66
|
66
|
M8
|
8
|
23
|
107
|
20
|
|
L-C88
|
88
|
M8
|
8.5
|
24.5
|
193
|
42
|
Details Images
Detail of inside
Strong Magnet inside
Anti- Collision Drop
It contains neodymuim magnet + Metal.
Outsoucing anti-collision TPE Rubber
Customized Color
Black, Bule, Pink, Orange, purple, green, etc
Wide
Range Of Uses
Rubber-coated magnet suction cups are mainly used in all kinds of film positioning, car roof lamp billboard fixation, wedding car
flower plate, camera fixation, advertising light box, broadcasting, speakers, various industrial tooling, factory equipment
installation and fixing...
flower plate, camera fixation, advertising light box, broadcasting, speakers, various industrial tooling, factory equipment
installation and fixing...
Packing & Delivery
Standard Air/Sea Package
Packed with PE bag, and then packd-in carton box. It also can customized package for retailers
Why Choose Us
If you don't like this shape,
Here's Multiple
Series options
All Shape & Size Magnet can be customized. share your idea to us
Neodymium reacts to oxygen and oxidies quickly if untreated.That's why all neodymium magnets are covered with protective coating. which is so thin that it doesn't have any impact on the adhesive force of the magnet
