Quick Details
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1.2*0.8*1.34m
-
Weight:
-
1200 kg
-
Marketing Type:
-
New Product 2024
-
Name:
-
Feed Pellet Mill Machine
-
Application:
-
pellet machine for making feed
-
Color:
-
customizable
-
Capacity:
-
1-10t/h
-
Usage:
-
animal poultry feed
-
Raw material:
-
Corn, rice, wheat, etc
-
Installation:
-
Guide
-
Feature:
-
Room Temp
-
Certification:
-
ISO9001
Quick Details
-
Max. Capacity:
-
1-10t/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Gofine
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1.2*0.8*1.34m
-
Weight:
-
1200 kg
-
Marketing Type:
-
New Product 2024
-
Name:
-
Feed Pellet Mill Machine
-
Application:
-
pellet machine for making feed
-
Color:
-
customizable
-
Capacity:
-
1-10t/h
-
Usage:
-
animal poultry feed
-
Raw material:
-
Corn, rice, wheat, etc
-
Installation:
-
Guide
-
Feature:
-
Room Temp
-
Certification:
-
ISO9001
Product Overview

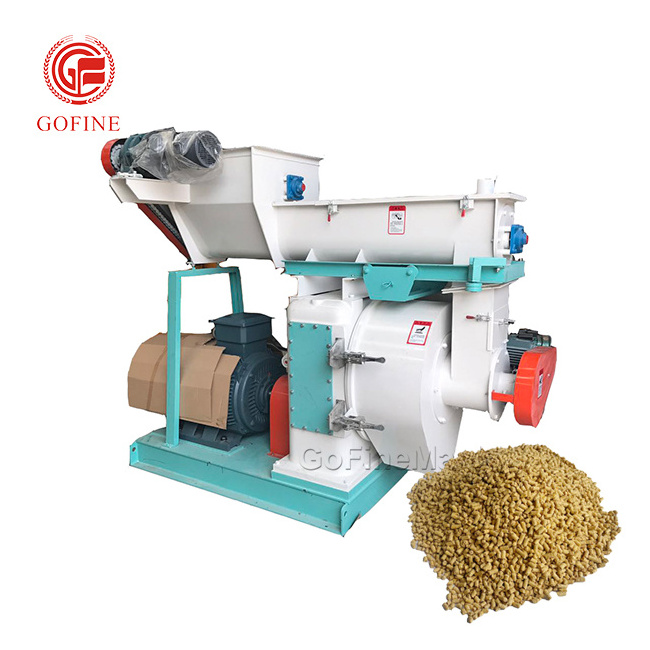

Ring die pellet machine has wide applicability and is one of the important pieces of equipment for producing wood pellets, feed pellets, fertilizer granules, cat litter, and other pellets. The ring molded roller is made of special alloy steel processed by advanced technology, with high wear resistance and long service life. The mold is fastened with a hoop, which has high operating stability and good performance. There is no need to frequently adjust the gap between the pressing wheel and the ring. It is also equipped with a modulator to effectively increase the absorption rate of feed. The ring die granulator has low energy consumption and high output. It can be used in conjunction with the round polishing machine to turn cylindrical granules into beautiful round granules.
Product Details
Product Paramenters
|
Model
|
320
|
350
|
400
|
420
|
508
|
||||
|
Output (t/h)
|
2-6
|
2-8
|
3-10
|
3-14
|
4-20
|
||||
|
Main power (kw)
|
37
|
55
|
75/90
|
110
|
132/160
|
||||
|
Feeding power (kw)
|
0.55
|
0.75
|
1.5
|
1.5
|
1.5
|
||||
|
Tempering conditioner (kw)
|
2.2
|
2.2
|
2.2
|
5.5
|
7.5
|
||||
|
Inner diameter (mm)
|
320
|
350
|
400
|
420
|
508
|
||||
|
Pellet diameter (mm)
|
2,3,4,4.5,5,6,8,10
|
|
|
|
|
||||
|
Rollers number
|
2
|
|
|
|
|
||||
|
Outer diameter (mm)
|
140
|
165
|
190
|
206
|
|
||||
|
Pellet molding rate
|
≥95%
|
|
|
|
|
||||
|
Percentage of powdered pellets
|
≤12%
|
|
|
|
|
||||
|
Pellet in the water time
|
≥20MIN
|
|
|
|
|
||||
|
Noise (dB)
|
≤86（A）
|
|
≤90（A）
|
|
|
||||
|
Working Temperature (℃)
|
≤85
|
|
|
|
|
||||
|
Working pressure (M pa)
|
0.1-0.4
|
|
|
|
|
||||
|
Steam Dosage (t/h)
|
≥0.3
|
≥0.3
|
≥0.4
|
≥0.5
|
≥1
|
||||
|
Steam Temperature (℃)
|
130-150
|
|
|
|
|
||||
