- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
Customer's Requirement)
-
Dimension(L*W*H):
-
4080*2080*2100
-
Weight:
-
5500kg
-
Air capacity:
-
800-900 cfm
-
Marketing Type:
-
New Product 2022
-
New design:
-
High Pressure
-
New process:
-
Low Noise
-
New Engine:
-
Cummins
-
New Technology:
-
Heavy Duty
-
New features:
-
High Efficiency
-
New manufacturing:
-
Diesel Powered
-
Diesel Engine Power:
-
264KW Cummins
-
Compressed gas flow:
-
28m3/min
-
Engine model:
-
DCEC QSL8.9-C360-30
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Atlas Copco
-
Model Number:
-
Atlas Copco V900, Atlas Copco V 900
-
Voltage:
-
Customer's Requirement)
-
Dimension(L*W*H):
-
4080*2080*2100
-
Weight:
-
5500kg
-
Air capacity:
-
800-900 cfm
-
Marketing Type:
-
New Product 2022
-
New design:
-
High Pressure
-
New process:
-
Low Noise
-
New Engine:
-
Cummins
-
New Technology:
-
Heavy Duty
-
New features:
-
High Efficiency
-
New manufacturing:
-
Diesel Powered
-
Diesel Engine Power:
-
264KW Cummins
-
Compressed gas flow:
-
28m3/min
-
Engine model:
-
DCEC QSL8.9-C360-30
Atlas Copco V900 Atlas Copco 25bar Atlas Copco 264kw Atlas Copco 800cfm Atlas Copco 900cfm Atlas Copco 360psi Atlas Copco 365psi Atlas Copco V 900 Atlas Copco 25 bar Atlas Copco 264 kw Atlas Copco 800 cfm Atlas Copco 900 cfm Atlas Copco 360 365 psi Atlas V900 Atlas Copco Mobile Air Compressor 25bar 360psi 360psi 800cfm 900cfm AtlasCopco V 900 25 bar 264 kw 800 900 CFM 365 360 psi
Products Description
|

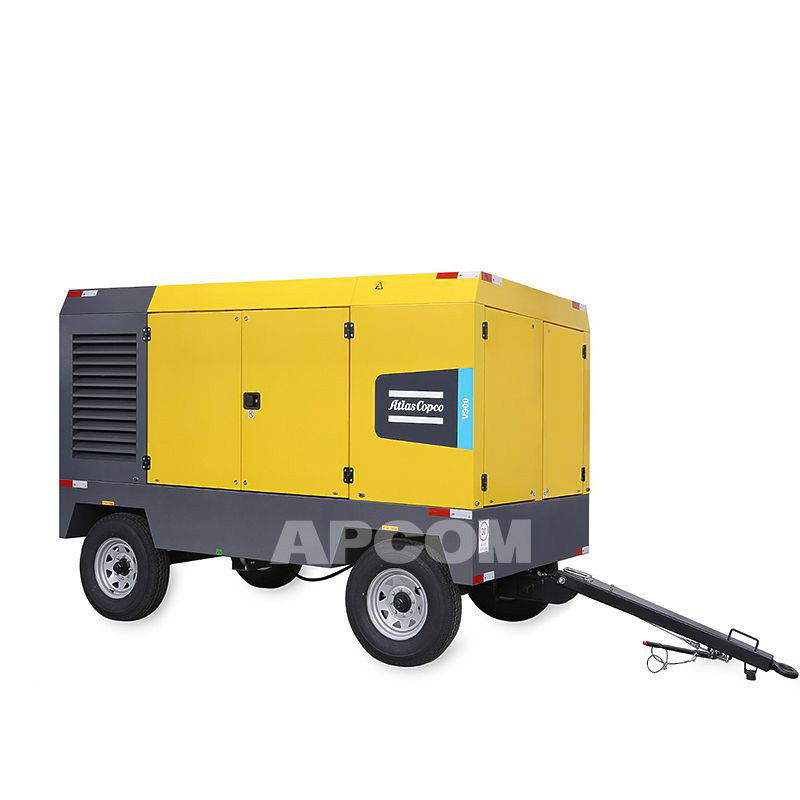

Atlas copco V900
|
|
|
|
|
||||
|
Engine brand
|
Cummins Stage III
|
|
Size
|
4252*2100*2500mm
|
||||
|
Power
|
264KW
|
|
Weight
|
4355 kg
|
||||
|
Pressure
|
25bar 363psi
|
|
Pressure
|
16bar 232psi
|
||||
|
Air flow
|
22.8 m
3
/min 805CFM 380 l/s
|
|
Air flow
|
25.4 m
3
/min 896CFM 423 l/s
|
||||
Product parameters
|
Atlas Copco Disesel Mobile Air Compressor
|
|
V900
|
V1200
|
|
|
Max. pressure
|
bar
|
16-25
|
15-25
|
|
|
|
psi
|
232-363
|
217-363
|
|
|
Gas Flow
|
m3/min
|
25,4-22,8
|
36,8-34
|
|
|
|
l/s
|
423-380
|
613-566
|
|
|
|
cfm
|
896-805
|
1299-1200
|
|
|
Regulation system
|
|
PACE
|
DrilIAirXpert
|
|
|
|
|
|
|
|
|
Extended Pressure Range
XPR(optional)
|
bar
|
N/A
|
NA
|
|
|
Flow in Dynamic Flow Boost
|
m
3
/min(Vs)
|
N/A
|
36.8(613) at 15 bar
|
|
|
Engine model
|
|
DCEC QSL8.9-C360-30
|
DCEC QSZ13-C475-30
|
|
|
|
|
|
|
|
|
Engine band answer
|
|
Cummins Stage lll
|
Cummins Stage lll
|
|
|
|
|
|
|
|
|
Engine power
|
kw
|
264
|
364
|
|
|
Engine speed range
|
rpm
|
1200-1900(1700 nom)
|
1300-1700(1600 nom)
|
|
|
Dimensions wagon(bxwxh)
|
mm
|
4252x2100x2500
|
500Ox2100x2405
|
|
|
Wet weight support
|
kg
|
4355
|
5850
|
|
|
Fuel tank capacity
|
Lit
|
420
|
614
|
|
Details Images
Contact Us
24 Hours
for you
Product Catalog
DrillAir: Putting you in control
We have developed, and will continue developing, a full range of compressors known as the DrillAir range.This range of compressors is specifcally developed to cover a multitude of drilling applications.The DrillAir range is built scientifcally around the principals of pressure and fow.The focus of the design is the relationship between these two variables and for the compressor to fnd the combination which is right for the application – to improve the effciency aspects of time spent and fuel consumed.With the DrillAir range you achieve the maximum air fow at any pressure setting.
We have developed, and will continue developing, a full range of compressors known as the DrillAir range.This range of compressors is specifcally developed to cover a multitude of drilling applications.The DrillAir range is built scientifcally around the principals of pressure and fow.The focus of the design is the relationship between these two variables and for the compressor to fnd the combination which is right for the application – to improve the effciency aspects of time spent and fuel consumed.With the DrillAir range you achieve the maximum air fow at any pressure setting.
There is no such thing as one size fts all when it comes to effcient drilling. Depending on the depth of hole and the size of the hammer the right product makes all the difference.The DrillAir range gives you the opportunity to choose a product which is right for your core business, while giving you the fexibility to adapt to changes in well depth and hammer size for any custom applications.
Let us fnd the DrillAir machine that is right for you!
Built better...
V900
---XATS 1200
---XAVS 1000
---XATS 1200
---XAVS 1000
Advanced functionality with PACE? function and IP65 protection.
PACETMTechnology,Electronically controlled,pressure regulating valve providing a wider pressure and FAD range.
Cummins G3/Stage IIIA performance engine.
Additional fuel flter for improved engine protection.
ntegrated battery hub with anti-dust protection.
Integrated, optimized air fltration system for easy service and performance
Integrated fail-safe
outlet valves.
outlet valves.
Ergonomic integrated ladder inside.
Dedicated service door for oil level flling and monitoring.
|
Atlas Copco Disesel Mobile Air Compressor
|
|
XATS 1200
|
XAVS 1000
|
|
|
Max. pressure
|
bar
|
5-10
|
5-14
|
|
|
|
psi
|
72-150
|
72-203
|
|
|
Flow
|
m3/min
|
34,6-31,5
|
28,9-25,6
|
|
|
|
l/s
|
578-520
|
482-425
|
|
|
|
cfm
|
1225-1102
|
1021-901
|
|
|
Engine model
|
|
DCEC QSL8.9-C360-30
|
DCEC OSL8.9-C360-30
|
|
|
|
|
|
|
|
|
Engine band answer
|
|
Cummins Stage lll
|
Cummins Stage lll
|
|
|
|
|
|
|
|
|
Engine power
|
kW
|
264
|
264
|
|
|
Engine speed range
|
rpm
|
1200-1900 (1700 rpm)
|
1200-1900(1700 rpm)
|
|
|
Dimensions wagon(b*w*h)
|
mm
|
4252x2100x2500
|
4252×2100x2500
|
|
|
Wet weight support
|
kg
|
4355
|
4355
|
|
|
Fuel tank capacity
|
Lit
|
420
|
420
|
|
Product Application
