Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
LABTEX
-
Model Number:
-
LTS-XRF7000
-
Analytical Method:
-
Energy dispersive X ray fluorescence analytical Method
-
Simultaneous detector elements:
-
Simultaneous analyze 40 elements
-
The content range:
-
ppm~99.99%
-
The detection time:
-
1-60 seconds (one second report results)
-
A built-in system:
-
GPS,WIFI,Bluetooth
-
Detection Objective:
-
Solid,liquid,powder
-
Detector:
-
SDD detector or Fast-SDD detector (optional)
-
Detector resolution:
-
Minimum can reach 128eV
-
Video system:
-
500W pixel high resolution camera
-
Detection limit:
-
The minimum detection limits at 1~500 ppm
Quick Details
-
Warranty:
-
1 year
-
Size:
-
244*90*330MM
-
Weight:
-
2KG
-
Place of Origin:
-
China
-
Brand Name:
-
LABTEX
-
Model Number:
-
LTS-XRF7000
-
Analytical Method:
-
Energy dispersive X ray fluorescence analytical Method
-
Simultaneous detector elements:
-
Simultaneous analyze 40 elements
-
The content range:
-
ppm~99.99%
-
The detection time:
-
1-60 seconds (one second report results)
-
A built-in system:
-
GPS,WIFI,Bluetooth
-
Detection Objective:
-
Solid,liquid,powder
-
Detector:
-
SDD detector or Fast-SDD detector (optional)
-
Detector resolution:
-
Minimum can reach 128eV
-
Video system:
-
500W pixel high resolution camera
-
Detection limit:
-
The minimum detection limits at 1~500 ppm
A New Generation The Leader of Handheld XRF

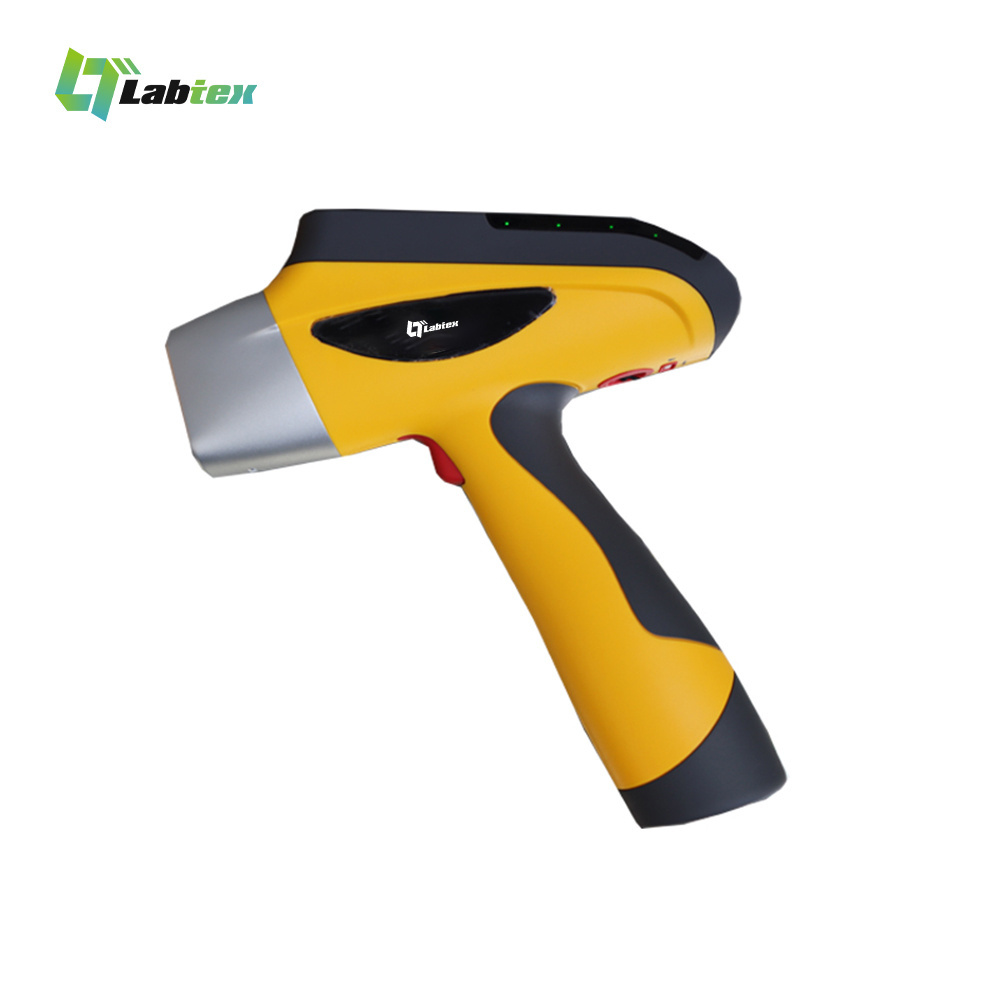

LTS-XRF7000 Handheld Ore Analyzer
Product Description
Specification
|
Model
|
LTS-XRF7000
|
|
|
|
Analytical Method
|
Energy dispersive X ray fluorescence analytical Method
|
|
|
|
Elements Measuring Range
|
Atomic number from 12 to 92
[elements from magnesium (Mg)to uranium (U)]can be measured |
|
|
|
Simultaneous detector elements
|
Simultaneous analyze 40 elements
|
|
|
|
Microcomputer system
|
Customized system;CPU:1G;system memory:1G;
extended stored maximum suppor 32G;standard 4G for mass storage data |
|
|
|
The content range
|
ppm~99.99%
|
|
|
|
The detection time
|
1-60 seconds (one second report results)
|
|
|
|
A built-in system
|
GPS,WIFI,Bluetooth
|
|
|
|
Power Supply
|
Rechargeable lithium baltery,standard is 9000mAh,sustainable work up to 12 hours;
optional is 27000mAh superbattery with wide voltage 110V-220V universal adapter for recharging power supply |
|
|
|
Detection Objective
|
Solid,liquid,powder
|
|
|
|
Detector
|
SDD detector or Fast-SDD detector (optional)
|
|
|
|
Detector resolution
|
Minimum can reach 128eV
|
|
|
|
The excitation source
|
50KV/200uA-silver target end window integrated miniature
X ray tube and high voltage power supply |
|
|
|
Collimator and filter
|
Collimator diameters are 4.0mm and 2.0mm,
6 kinds of filters with automatic switching functions |
|
|
|
Video system
|
500W pixel high resolution camera
|
|
|
|
Display screen
|
Brand new 5 inch transflective LCD touch screen,the resolution is 1080*720
|
|
|
|
Detection limit
|
The minimum detection limits at 1~500 ppm
|
|
|
|
Safety
|
Multiple safety protection,no tests,no radiation,radiation levels at work are far below
the international safety standards,and has no sample telemetry,automatic -turn -off X-Ray tube function.Standard radiation shields,thickened instrument's alloy testing wal |
|
|
|
Specialty
|
Special edition of ore's analytical software,and intellectualized one-key-testing.
|
|
|
|
Convenience of application
|
No need to select curves,intellectualized one-key-selecting
will select the best matching curve |
|
|
|
Data transmission
|
Digital multi-channel technology,SPI data transmission,quick analysis,the high
count rate;waterproof mini USB,and can be connected with a desktop computer |
|
|
|
Operating ambient humidity
|
≤90%
|
|
|
|
Operating environmenta temperature
|
-20℃~+50℃
|
|
|
|
nstrument dimension
|
244mm(Length)x90mm(Width)x330mm(Height )
|
|
|
|
Instrument weight
|
1.7Kg
|
|
|
|
Intelligent warning
signalsIndicator system |
Green light means power on,red flushing means
testing and yellow flushing means the errors |
|
|
|
Accessories
|
Three-military-protection-box is compression,waterproof and shock absorption.
Universal charger and car charger,4G SD memory card and card reader Two lithium battery and charger,PDA accessories,radiation shield. Optional accessories:the large batery,seat type testsupport,Bluetooth printer,mil, manual pressure machine,and other options can to choosen… |
|
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
