Quick Details
-
Size:
-
12500*2500*1550mm
-
Place of Origin:
-
Shandong, China
-
AXle No.&Brand:
-
2-3Axle FUWA/BPW
-
Suspension:
-
Mechanical / Air / Bogie
-
King Pin:
-
2"(50mm)or3.5"(90mm) JOST
-
Stain Proofing:
-
Sand blasting with twice anticorrosive prime
-
Loading Capacity:
-
40T
-
Dimension:
-
20ft, 40ft ,45ft, 53ft
-
Tire:
-
12R22.5 Triangle Brand or Hankook Brand
-
Brake system:
-
WABCO Valve
-
Chassis:
-
Q345 or T700 high strength bao steel materil
-
Function:
-
carry 20ft , 40ft container
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
40T
-
Brand Name:
-
Panda
-
Size:
-
12500*2500*1550mm
-
Place of Origin:
-
Shandong, China
-
AXle No.&Brand:
-
2-3Axle FUWA/BPW
-
Suspension:
-
Mechanical / Air / Bogie
-
King Pin:
-
2"(50mm)or3.5"(90mm) JOST
-
Stain Proofing:
-
Sand blasting with twice anticorrosive prime
-
Loading Capacity:
-
40T
-
Dimension:
-
20ft, 40ft ,45ft, 53ft
-
Tire:
-
12R22.5 Triangle Brand or Hankook Brand
-
Brake system:
-
WABCO Valve
-
Chassis:
-
Q345 or T700 high strength bao steel materil
-
Function:
-
carry 20ft , 40ft container

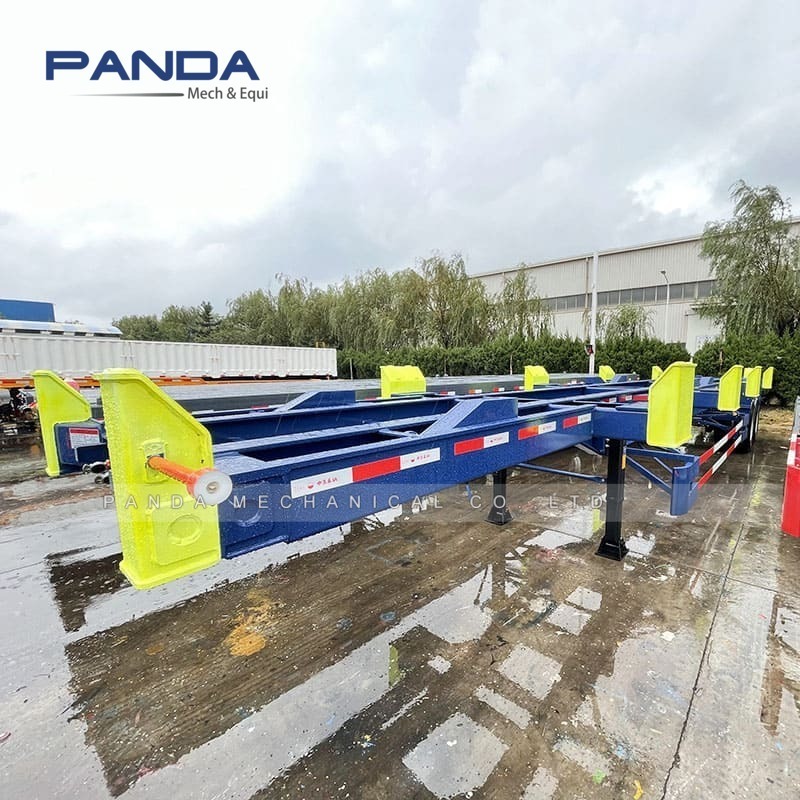

40FT 45FT Port dock combo container chassis trailer Terminals skeleton semi-trailer Bomb Carts
Product Video
PANDA optional: 40ft Bomb cart container trailer, 20ft yard chassis container semi trailer, 40ft terminal chassis trailer, 2 axle chassis container trailer, , shipping container trailer,13.5m container truck trailer, Port truck trailer, 40ft container chassis semi-trailer,etc.
Specification
| Trailer Name | Top sale 2 Axle Bomb Cart truck trailer/ yard trailer/ 20ft container semi trailer |
| Dimensions | 13500mm*2500mm*1550mm |
| Loading | 30T, 40T, 45T, 50T, 60T |
| Tire | 11.00R20, 12.00R20,12R22.5, 385/65R22.5 Triangle/Hankook/ Bridgestone brand |
| Material | Main beams Q345B, upper flange:14mm, middle:8mm, down:16mm |
| Axles | 13T/16/20T BPW or FUWA brand |
| King Pin | 2 inch or 3.5 inch JOST Brand |
| Brake System | WABCO Valve with big chamber |
| LandingGears | JOST brand two-speed, Manual operating heavy duty 28ton |
| Suspension | Bogie suspension, spring suspension, Air suspension |
| ElectricalSystem | 24v, 7core socket, lights according to European standards (suitable for all market) |
| Twist lock | 12 no, of ISO twist lock for 1x20ft,2x20ft,1x40ft container |
| Other parts | 1 tool boxs, 1 spare tire carrier |
| Functions | Transport 40ft and 20ft container |
Please cope the terminal container trailer specifiction and keep it on your computer
