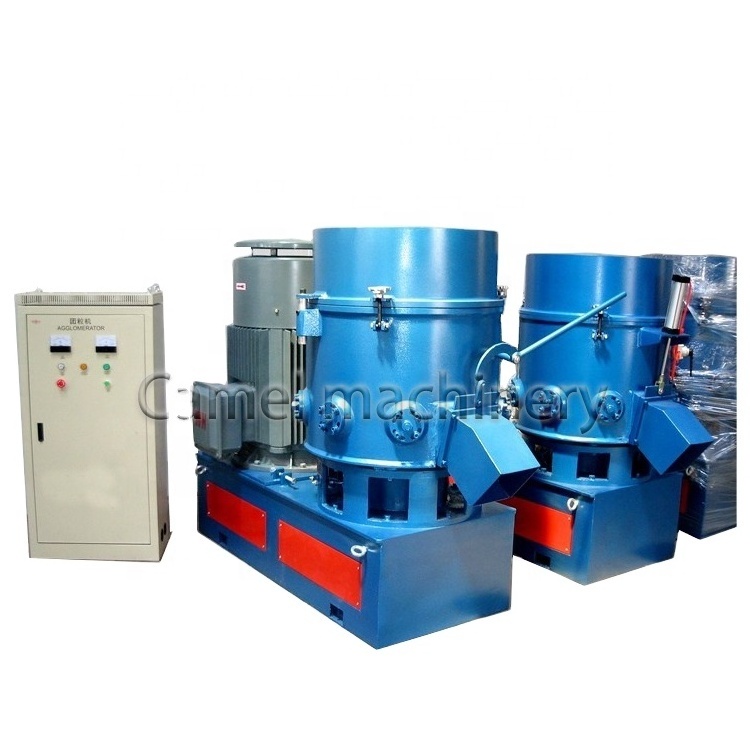

Plastic Film Agglomerator/Densifier/ Compactor Machine for PE PP PET HDPE LDPE PVC Granules Pelletizing Line

Plastic Film Agglomerator/Densifier/ Compactor Machine for PE PP PET HDPE LDPE PVC Granules Pelletizing Line

FOB Reference Price: Get Latest Price

≥1 Sets

US $3500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Dimension(L*W*H):: 1700*800*1500mm

Usage:: FILM Granulation

Input materials:: waste film soft plastic

Color:: White, blue, customized

Voltage:: 380V50HZ 3 phase customized

Certification:: CE ISO TUV

motor:: Siemens, beide

contactor:: Schneider, Siemens

PLC:: Siemens

Weight:: 1-3 ton

Output:: 100-800kg/hr

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: Camel

Weight (KG):: 1500

Dimension(L*W*H):: 1700*800*1500mm

Usage:: FILM Granulation

Input materials:: waste film soft plastic

Color:: White, blue, customized

Voltage:: 380V50HZ 3 phase customized

Certification:: CE ISO TUV

motor:: Siemens, beide

contactor:: Schneider, Siemens

PLC:: Siemens

Weight:: 1-3 ton

Output:: 100-800kg/hr

Products Description

Agglomerator/Densifier For Plastic film

Brief Introduction:

Agglomerator can directly recycle the waste plastic films and other products less than 2mm wall thickness into granules. The raw material can be soft Pvc, Hdpe, Ldpe, Pp, Bopp film/bags, woven bags and o ther thermoplastics .

Working process:

When the waste plastic is supplied into the chamber of such machine, it will be cut into smaller chips due to the crushing function of the rotating knife and fixed knife. During the crushing processing, the material that soaked up lots heat from the frictional movement of material being crushing and the material will be going to become semi-plasticizing state. The particles will stick with each other due to the function of plasticization. Before it sticks each other completely, the cold water pre-prepared is sprayed into the material being crushed. The water will be evaporated off quickly and the surface temperature of material being crushed drop down quickly also. So the material being crushed will become small particles or granules.

Advatages:

It is easy to recognize the particles by different size and can be colored by using of color agent being putted into the container during the crushing processing. The particles can be used for extrusion or injection mold machine directly. also can be further pelletized for some advanced requirements.

This machine is qualified with certificate ISO9001:2000.

Details Images

Rotating blade and fixed blade.

(extra blades are available)

Motor

(motor brand is customized)

Electrical control cabinet

Technical parameter

Model	GHC1000	GHC800	GHC500	GHC300	GHC200	GHC100
Tank volume (Liter)	1000	800	500	300	200	100
Working volume (Liter)	750	600	375	200	150	75
Capacity( Kg/h)	600~800	400~650	350~500	200~350	150~250	100~150
Motor power (Kw)	132	110	90	75	55	37
Rotating blades speed (r/min)	700	750	750	900	800	800
Rotating blades quantity (pcs)	4	4	4	2	2	2
Stationary blades quantity(pcs)	8	8	8	8	6	6
Discharging model	Manual / Auto	Manual / Auto	Manual / Auto	Manual / Auto	Manual / Auto	Manual / Auto
Water spraying way	Manual / Auto	Manual / Auto	Manual / Auto	Manual / Auto	Manual / Auto	Manual / Auto
Machine dimension L×W×H (mm)	2680×1815 ×2400	2170×1510 ×2140	2100×1510 ×2145	2100×1495 ×1945	1900×1160 ×1800	1900×650 ×1310
Machine weight ( Kg)	3500	2800	2500	2000	1800	1200
