Quick Details
-
Voltage:
-
220V, 380V or customized
-
Dimension(L*W*H):
-
6800*5380mm(L*W)
-
Power (kW):
-
15
-
Weight (KG):
-
1500 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Feature:
-
turntable type
-
mold station:
-
can be automatic opening and closing
-
Process of injecting:
-
Manual inject by PLC programmed
-
production capacity:
-
around 5 to 10 pcs/mold each hour
-
application:
-
bike tire, bicycle wheel, caster
-
Marketing Type:
-
Hot Product 2019
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
luzhou
-
Machine Type:
-
pu machine
-
Voltage:
-
220V, 380V or customized
-
Dimension(L*W*H):
-
6800*5380mm(L*W)
-
Power (kW):
-
15
-
Weight (KG):
-
1500 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Feature:
-
turntable type
-
mold station:
-
can be automatic opening and closing
-
Process of injecting:
-
Manual inject by PLC programmed
-
production capacity:
-
around 5 to 10 pcs/mold each hour
-
application:
-
bike tire, bicycle wheel, caster
-
Marketing Type:
-
Hot Product 2019
Product Description

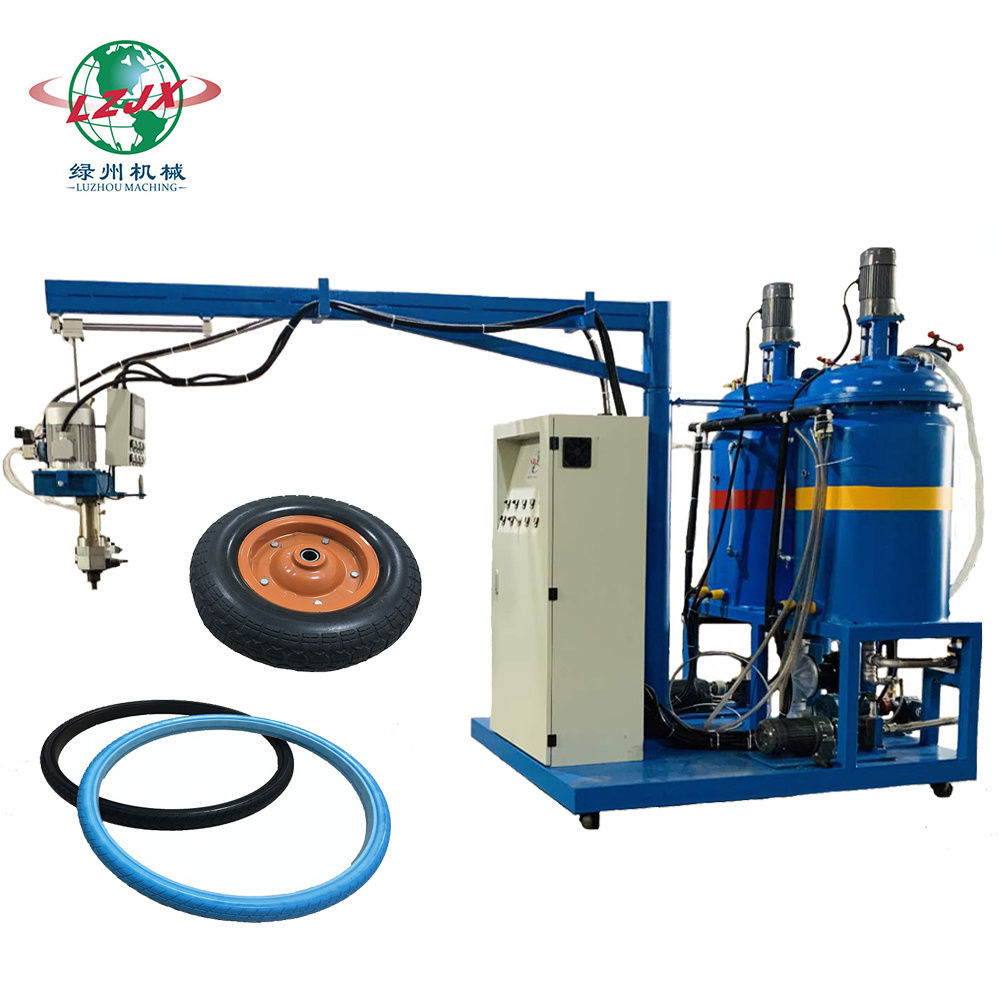

Pu Bike Tire Molding machine Polyurethane moulding tyre machinery
This equipment includes one pu foaming machine(can be low or high pressure foam machine) and one production line.It can be customized according to the different product, different production capacity and different requirement from the users.
Product Paramenters
|
Specification for High pressure foaming machine
|
|
|
|
|
||||
|
Model No.
|
Output(g/s)
|
tank volume(L)
|
mixing ratio
|
total Power(kw)
|
||||
|
LZ-907A
|
60-180
|
250
|
100:35-65
|
18
|
||||
|
LZ-907B
|
80-450
|
250
|
100:35-65
|
22
|
||||
|
LZ-907C
|
120-850
|
250
|
100:35-65
|
26
|
||||
|
LZ-907D
|
250-1700
|
250
|
100:35-65
|
38
|
||||
|
Specification for low pressure foaming machine
|
|
|
|
|
||||
|
Model No.
|
Output(g/s)
|
tank volume(L)
|
mixing ratio
|
total Power(kw)
|
||||
|
LZ-803A
|
15-50
|
250
|
100:35-65
|
12
|
||||
|
LZ-803B
|
30-120
|
250
|
100:35-65
|
12
|
||||
|
LZ-803C
|
60-200
|
250
|
100:35-65
|
15
|
||||
|
LZ-803D
|
100-350
|
250
|
100:35-65
|
18
|
||||
|
LZ-803E
|
150-600
|
250
|
100:35-65
|
20
|
||||
Application
This equipment is used to produce all type of polyurethane products. For example: car seat cushion, furniture seat cushion,motorcycle seat cushion, bicycle seat cushion, office chair, memory pillow, steering wheel, dash board,bumpers, insulation material like refrigerator and heaters, toys, pu cornice, casters, ect.
Details Images
Material Tanks
Tanks inside use 304 stainless steel and heat preservation layer; with safety valve, pressure release valve, non-returnd valve, air transfer switch, stope valve. Outside has level gauge to see how many material inside clearly.
Electrical parts
Use Siemens electrical parts to keep the stability of the equipment and reduce the default problem. Imported PLC controlled system to make sure the accuracy of the ratio.
Centrifugers
Use high-speed rotation centrifuger to form the wheel and tire. Can change different mold to produce different wheel and tire as the user's production demands.
