- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380v/3phase/50hz
-
Dimension(L*W*H):
-
6616*2250*2388mm
-
Weight:
-
7350 KG
-
Power:
-
248000
-
Working Temperature Range:
-
-20 to 55 ℃
-
Product name:
-
Air Cooled Scroll Water Chiller
-
Refrigerant:
-
R134a
-
Cooling capacity:
-
782kw
-
Compressor:
-
Semi-hermetic screw compressor
-
Condensing fan:
-
Axial Fan
-
Air flow:
-
336000m3/h
-
Operating temperature range:
-
-20 to 55 ℃
-
Compressor starting current:
-
503/503A
-
Water flow:
-
134.5m3/h
-
Noise:
-
84dB(A)
Quick Details
-
Condition:
-
New
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
YESNCER
-
Voltage:
-
380v/3phase/50hz
-
Dimension(L*W*H):
-
6616*2250*2388mm
-
Weight:
-
7350 KG
-
Power:
-
248000
-
Working Temperature Range:
-
-20 to 55 ℃
-
Product name:
-
Air Cooled Scroll Water Chiller
-
Refrigerant:
-
R134a
-
Cooling capacity:
-
782kw
-
Compressor:
-
Semi-hermetic screw compressor
-
Condensing fan:
-
Axial Fan
-
Air flow:
-
336000m3/h
-
Operating temperature range:
-
-20 to 55 ℃
-
Compressor starting current:
-
503/503A
-
Water flow:
-
134.5m3/h
-
Noise:
-
84dB(A)
Product Overview

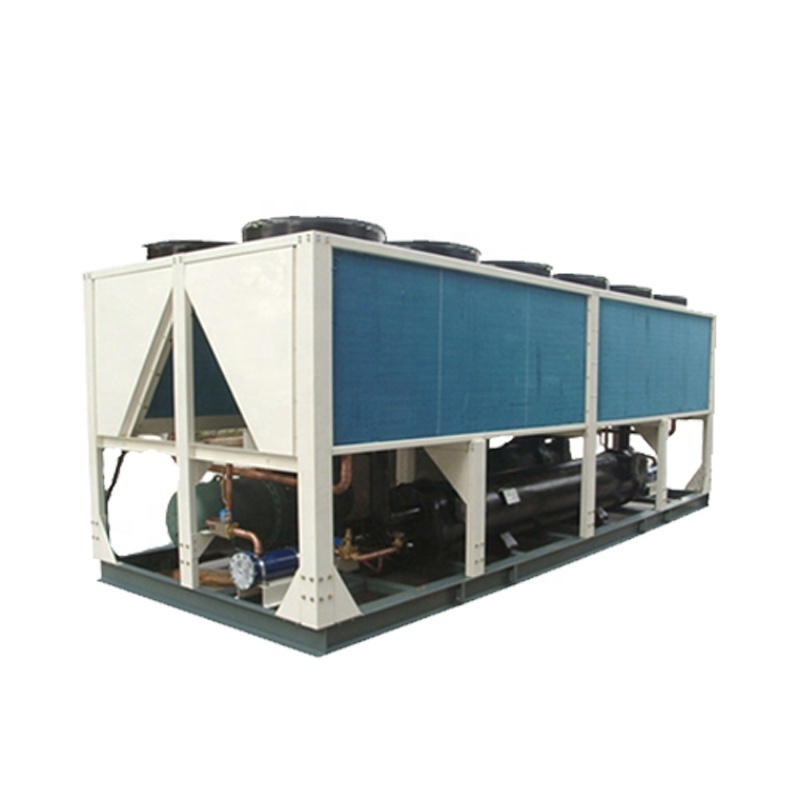

High Efficiency R134a Heat Pump Air Cooled Scroll Water Chiller For Industrial
The screw-type air-cooled hot and cold water unit adopts a modular design. The reference modules are divided into 2 categories and 6 types, which can be combined into 22 models at most, forming a group of 320kW~1996kW. This unit adopts dry, falling film evaporator, and provides two types of refrigerants (R134a and R22) for selection.
Generally installed on the roof or outdoors, no special air-conditioning room is required. There are no cooling towers, cooling water pumps, cooling water piping systems, etc. The system is simple and easy to use. It is commonly used in different types of buildings such as hotels, shopping malls, hospitals, office buildings, factories, etc., to provide continuous and comfortable protection for people's work and life.
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
1
|
Cooling capacity
|
782KW
|
|
2
|
Heatingcapacity
|
893kw
|
|
3
|
Operating temperature
|
-20 to 55℃
|
|
4
|
Power
|
12*2.2kw
|
|
5
|
Air flow
|
336000m³/h
|
|
6
|
Noise
|
84dB(A)
|
|
7
|
Refrigerant
|
R134a
|
|
8
|
Quantity of Fan
|
12
|
PRODUCT CONFIGURATION
