Quick Details
-
Model Number:
-
BV
-
Brand Name:
-
RUNTAIDA
-
Product name:
-

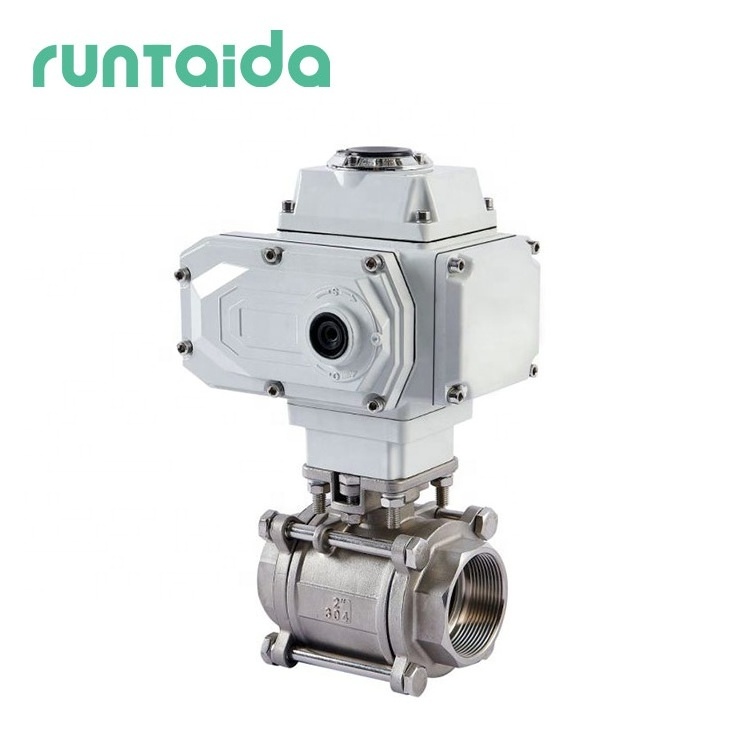

304 stainless steel motorized control electric actuated ball valve
-
Body material:
-
SS 304,SS 316,carbon steel,etc.
-
Standard:
-
ANSI,BS,DIN,JIS,etc
-
Working pressure:
-
pn10/16
-
Working Temperature:
-
-20℃~150℃
-
Acting Mode:
-
Double Acting or Single Acting
-
Usage:
-
Municipal construction, water conservancy project, etc
-
Size:
-
DN8-DN15
-
Packing:
-
Wooden Case
-
Suitable medium:
-
Water,air,oil,etc.
Quick Details
-
Port Size:
-
DN8-DN15
-
Warranty:
-
1 year
-
Place of Origin:
-
Henan, China
-
Model Number:
-
BV
-
Brand Name:
-
RUNTAIDA
-
Product name:
-
304 stainless steel motorized control electric actuated ball valve
-
Body material:
-
SS 304,SS 316,carbon steel,etc.
-
Standard:
-
ANSI,BS,DIN,JIS,etc
-
Working pressure:
-
pn10/16
-
Working Temperature:
-
-20℃~150℃
-
Acting Mode:
-
Double Acting or Single Acting
-
Usage:
-
Municipal construction, water conservancy project, etc
-
Size:
-
DN8-DN15
-
Packing:
-
Wooden Case
-
Suitable medium:
-
Water,air,oil,etc.
Why Choose us
Products Description
|
Product name
|
2 Way 3 PCS 1000 WOG 304 stainless steel motorized control electric actuated ball valve
|
|
Size Range
|
DN8-DN15
|
|
Acting Mode
|
Double Acting, Spring Return (Single Acting)
|
|
Operating Pressure
|
1.6MPa
|
|
Body Material
|
SS304, SS316, SS316L
|
|
Sealing Material
|
PTFE: -20°C~180°C, PPL: -20°C~230°C
|
|
Number of Ways
|
2 Way
|
|
End Connection
|
Threaded
|
|
Applicable Media
|
Control of Water, Air, Gas, Oil, Liquid
|
|
Optional Accessories
|
Namur Solenoid Valve, Limit Switch, F.R.L, Position Indicator, Manual Device
|
|
Application
|
Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper
|
Product parameter
|
Material of Main Parts
|
|
|
|
|
|
|
||||||
|
Name
|
Body
|
Ball
|
Seat
|
Bonnet
|
Stem
|
Handle
|
||||||
|
Material
|
304
|
304
|
PTFE
|
304
|
304
|
201
|
||||||
|
Optional
|
304/316
|
304/316
|
PTFE
|
304/316
|
304/316
|
201/304
|
||||||
|
Main size information
|
|
|
|
|
|
|
||||||
|
DN
|
L
|
T
|
H
|
K
|
R
|
D
|
||||||
|
DN8
|
172
|
65
|
171
|
20
|
8
|
G1/4"
|
||||||
|
DN10
|
172
|
65
|
172
|
21
|
10.5
|
G3/8"
|
||||||
|
DN15
|
172
|
67
|
172
|
21
|
16
|
G1/2"
|
||||||
|
DN20
|
172
|
82
|
179
|
28
|
20
|
G3/4"
|
||||||
|
DN25
|
172
|
91
|
182
|
31
|
25
|
G1"
|
||||||
|
DN32
|
172
|
108
|
188
|
36
|
32
|
G1 1/4"
|
||||||
|
DN40
|
172
|
129
|
193
|
39
|
38
|
G1 1/2"
|
||||||
|
DN50
|
221
|
148
|
205
|
44
|
50
|
G2"
|
||||||
|
DN65
|
221
|
186
|
217
|
58
|
63.5
|
G2 1/2"
|
||||||
|
DN80
|
257
|
206
|
245
|
71
|
76
|
G3"
|
||||||
|
DN100
|
257
|
240
|
254
|
82
|
100
|
G4"
|
||||||
Datas above are only for reference,
