Quick Details
-
Network:
-
Wireless
-
Product name:
-

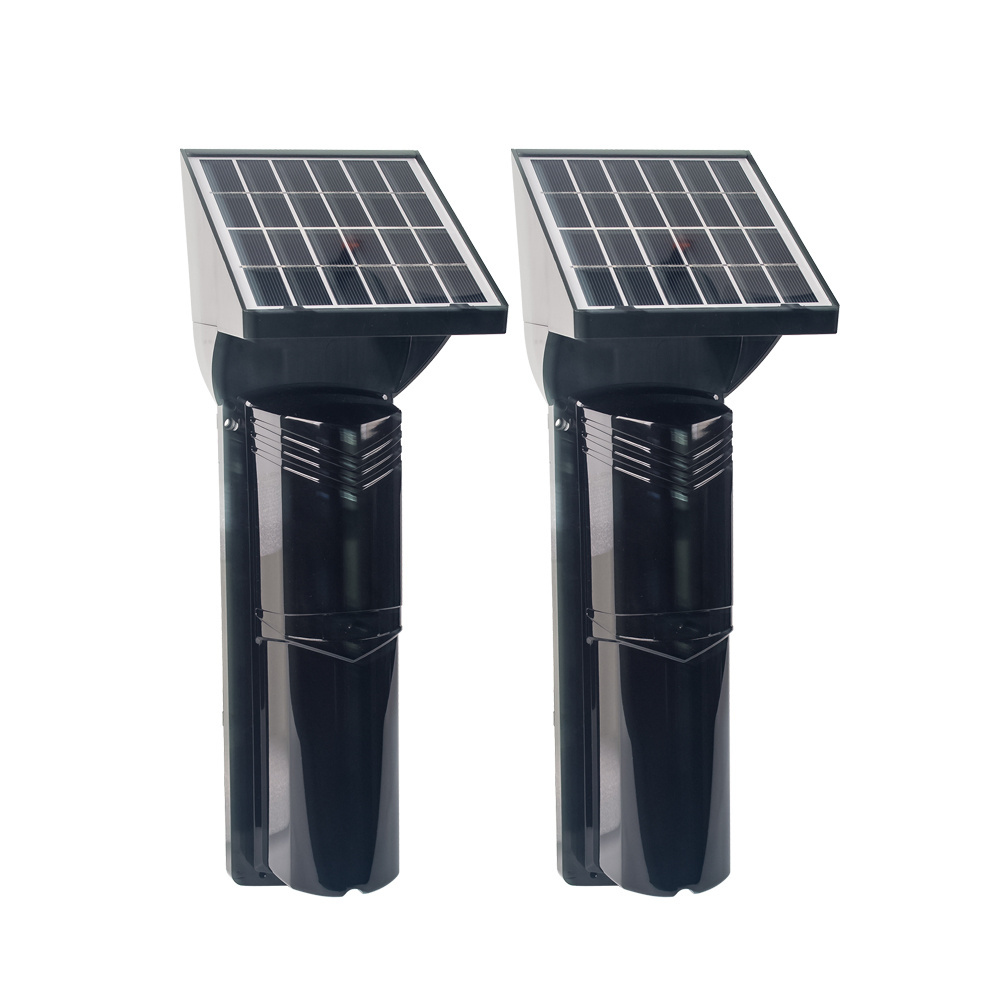

Solar beam sensor
-
Material:
-
ABS+PC, UV protection
-
Feature:
-
Solar-powered charging
-
Beam Frequency:
-
4 frequency channel selectable
-
Working Voltage:
-
3.3V
-
RF Frequency:
-
315MHz or 433MHz ASK/OOK
-
Working Current:
-
85mA Max
-
IP Grade:
-
IP65
-
Working Temperature:
-
-25℃-65℃
-
Warranty:
-
2 years
-
Certification:
-
CE, ROHS
Quick Details
-
Place of Origin:
-
Shenzhen, China
-
Brand Name:
-
Prosec/Neutral/OEM
-
Model Number:
-
ABE-100-S
-
Network:
-
Wireless
-
Product name:
-
Solar beam sensor
-
Material:
-
ABS+PC, UV protection
-
Feature:
-
Solar-powered charging
-
Beam Frequency:
-
4 frequency channel selectable
-
Working Voltage:
-
3.3V
-
RF Frequency:
-
315MHz or 433MHz ASK/OOK
-
Working Current:
-
85mA Max
-
IP Grade:
-
IP65
-
Working Temperature:
-
-25℃-65℃
-
Warranty:
-
2 years
-
Certification:
-
CE, ROHS
Product Description
Type:
Solar infrared beam
Solar wireless beam sensor
Solar infrared fence detector
Features:
1. Large-scale solar power supply, fast charging
2. Low power consumption, lasts about 30 days
3. 4 channel frequency,anti-interference,solves the problem of mutual interference
4. Intelligent Digital signal display for easily alignment, save the time
5. Beam sensor sensitivity could be adjusted
6. Demist function is available to added with the heater
7. MCU circuit design made it signal stability and accuracy enhanced
8. Alignment angle:±90°horizontally,±10°vertically
9. Waterproof grade IP65
10. Pet immunity, insect prevention,current limiting protection
11. Anti-tamper function
12.
Multiple range optional 30m, 60m, 100m
Solar-powered wireless beam sensor is a new environment-friendly product. It uses solar panel to charge & work, and use wireless signal transmission to receive the alarm signal.Which is easy for installation without cable connection.
Once all beams are interrupted in the same time, the alarm will be triggered, reducing false alarm caused by small animals and fallen leaves.
Specification
|
Model
|
|
ABE-100m
|
ABE-150m
|
ABE-200m
|
|||
|
Detecting Range
|
|
100m
|
150m
|
200m
|
|||
|
Beams Detecting Method
|
|
All beams are interrupted in the same time
|
|
|
|||
|
Sensing Speed
|
|
100ms
|
|
|
|||
|
Beams Frequency
|
|
4 channel options
|
|
|
|||
|
Voltage
|
|
3.3V
|
|
|
|||
|
Power Supply
|
|
Solar powered or DC 12V
|
|
|
|||
|
Current
|
|
85mA max
|
|
|
|||
|
Wireless Frequency
|
|
315MHz or 433MHz ASK/OOK
|
|
|
|||
|
Maximum alarm times
in 24 hours |
|
≤50 times/ Day
|
|
|
|||
|
Anti Tamper
|
|
Normally Closed ,open when the housing is taken off
|
|
|
|||
|
Water-proof Level
|
|
IP 65
|
|
|
|||
|
Operating Temperature
|
|
-25℃- 65℃
|
|
|
|||
|
Working Humidity
|
|
95% max
|
|
|
|||
|
Adjustment Angle
|
|
Horizontal 180°（±90°），Vertical90°（±10°）
|
|
|
|||
|
Installation Method
|
|
indoor/outdoor,wall mounted/pole mounted
|
|
|
|||
|
Dimension
|
|
40.5*14*13cm
|
|
|
|||
