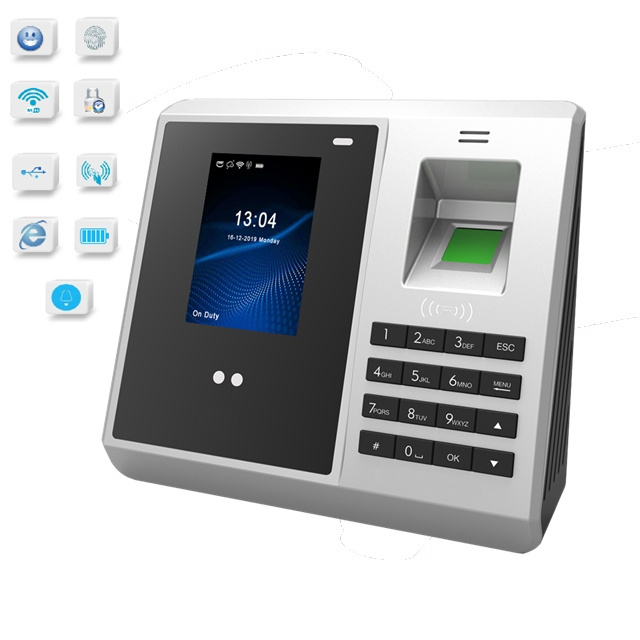

New model PC3 is popular in the market with smart desgin, improved function that support GPRS, WIFI, access control, bell, battery, RFID. professional communication port with wiegand in & out, 2 × relay, NC, NO, alarm, etc.
Data be managed via TCP/IP, WiFi, and USB host port for data up / download to avoid the risk of accidental deletion, what's more, friendly software eTime with perfect setting of shifts, rules, employees, departments, etc.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
PC3
-
User/Face/Card capacity:
-
2000
-
Fingerprint capacity:
-
10000
-
Log capacity:
-
200000
-
CPU:
-
400MHz
-
LCD display:
-
2.8" TFT color screen 320x240 pixel
-
Interface:
-
TCP/IP, USB (host and slave), 2 X Relay, wiegand in & out
-
Language:
-
English, Arabic, French, Korean, Spanish, Portuguese, etc
-
Attendance mode:
-
Face & Fingerprint & password & card any combination
-
Voice instruction:
-
16-bit Hi-Fi voice & sound indication
Quick Details
-
Type:
-
Biometric Time Recording
-
Place of Origin:
-
GUA
-
Brand Name:
-
Hysoon
-
Model Number:
-
PC3
-
User/Face/Card capacity:
-
2000
-
Fingerprint capacity:
-
10000
-
Log capacity:
-
200000
-
CPU:
-
400MHz
-
LCD display:
-
2.8" TFT color screen 320x240 pixel
-
Interface:
-
TCP/IP, USB (host and slave), 2 X Relay, wiegand in & out
-
Language:
-
English, Arabic, French, Korean, Spanish, Portuguese, etc
-
Attendance mode:
-
Face & Fingerprint & password & card any combination
-
Voice instruction:
-
16-bit Hi-Fi voice & sound indication
Advantages
Products advantage
World-class algorithm, high-speed and accurately identify fingerprint.
Face/Fingerprint/Pin/Card authentication.
Suitable for the entrances and exits of office, factory, hotel, school, etc.
Large capacity, user capacity up to 3,000, logs capacity up to 200,000.
2.8 inch TFT color screen 320x240 pixel.
TCP/IP + USB Flash Drive Download + USB Communication.
More helpful function like T9 input method, self-service inquiry, etc.
Support door control / alarm function.
USB flash drive for offline data management.
Multi-language: English, Arabic, French, Spanish, Portuguese, etc.
Multiple shifts setting.
Professional AT software eTime.
Easy wall-mounting.
Exact calculation of worked hours / overtime.
Product Description
-
Product performance description
|
TECHNICAL SPECIFICATIONS
|
|
|
|
|
||||
|
Biometric Measurement
|
Face & Fingerprint
|
|
|
|
||||
|
User/Face/Card capacity
|
2000
|
|
|
|
||||
|
Fingerprint capacity
|
10000
|
|
|
|
||||
|
Log capacity
|
200000
|
|
|
|
||||
|
CPU
|
400MHz
|
|
|
|
||||
|
LCD display
|
2.8" TFT color screen 320x240 pixel
|
|
|
|
||||
|
Interface
|
TCP/IP, USB (host and slave), 2 × Relay， wiegand in & out
|
|
|
|
||||
|
Language
|
English, Arabic, French, Korean, Spanish, Portuguese, etc
|
|
|
|
||||
|
Attendance mode
|
Face or Fingerprint or Password or Card or Face+Password
|
|
|
|
||||
|
Voice instruction
|
16-bit Hi-Fi voice & sound indication
|
|
|
|
||||
|
Verification time
|
< 0.5 second [1:N]
|
|
|
|
||||
|
FRR (False Rejection Rate)
|
< 1%
|
|
|
|
||||
|
FAR (False Acceptance Rate)
|
< 0.0001%
|
|
|
|
||||
|
Power source
|
5VDC/1A
|
|
|
|
||||
|
Operating temperature
|
0℃-45℃
|
|
|
|
||||
|
Operating humidity
|
< 90%RH
|
|
|
|
||||
|
Dimensions (mm)
|
160 x 61.7 x 140.6
|
|
|
|
||||
|
Weight (kg)
|
0.8
|
|
|
|
||||
|
Quantity/Carton
|
10 units
|
|
|
|
||||
|
Gross weight/carton (kg)
|
16
|
|
|
|
||||
|
Carton size
|
650 x 465 x 290
|
|
|
|
||||
|
Quantity / container
|
3200 units per 20' container
|
|
|
|
||||
Application and Accessories
Packing&Shipping
|
Dimensions (mm)
|
160 x 61.7 x 140.6
|
Weight (kg)
|
0.8
|
|
Quantity/Carton
|
10 units
|
Gross weight/carton (kg)
|
16
|
|
Carton size
|
530*230*530
|
Quantity / container
|
3200 units per 20' container
|
