Quick Details
-
Voltage:
-
220V/50HZ (customizable 110V/60HZ)
-
Power:
-
30W
-
Dimension(L*W*H):
-
700L*440W*1005H(mm)
-
Weight:
-
21 KG
-
heating power:
-
1KW
-
Vacuum degree::
-
0.098Mpa
-
Evaporation capacity:
-
20ml/min
-
Rotary bottle capacity:
-
1L
-
Collection bottle capacity:
-
500ml
-
Rotational speed:
-
0-120rpm/min
-
temperature range:
-
0-99C (optional 0-400C)
-
Glass temperature range:
-
-80-250℃
-
Main lift stroke:
-
0-150(mm)
-
Condenser size:
-
Diameter 85*460H(mm)
-
Marketing Type:
-
Hot Product 2021
Quick Details
-
Applicable Industries:
-
Chemical laboratory
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
MINGYI
-
Voltage:
-
220V/50HZ (customizable 110V/60HZ)
-
Power:
-
30W
-
Dimension(L*W*H):
-
700L*440W*1005H(mm)
-
Weight:
-
21 KG
-
heating power:
-
1KW
-
Vacuum degree::
-
0.098Mpa
-
Evaporation capacity:
-
20ml/min
-
Rotary bottle capacity:
-
1L
-
Collection bottle capacity:
-
500ml
-
Rotational speed:
-
0-120rpm/min
-
temperature range:
-
0-99C (optional 0-400C)
-
Glass temperature range:
-
-80-250℃
-
Main lift stroke:
-
0-150(mm)
-
Condenser size:
-
Diameter 85*460H(mm)
-
Marketing Type:
-
Hot Product 2021
Product Description

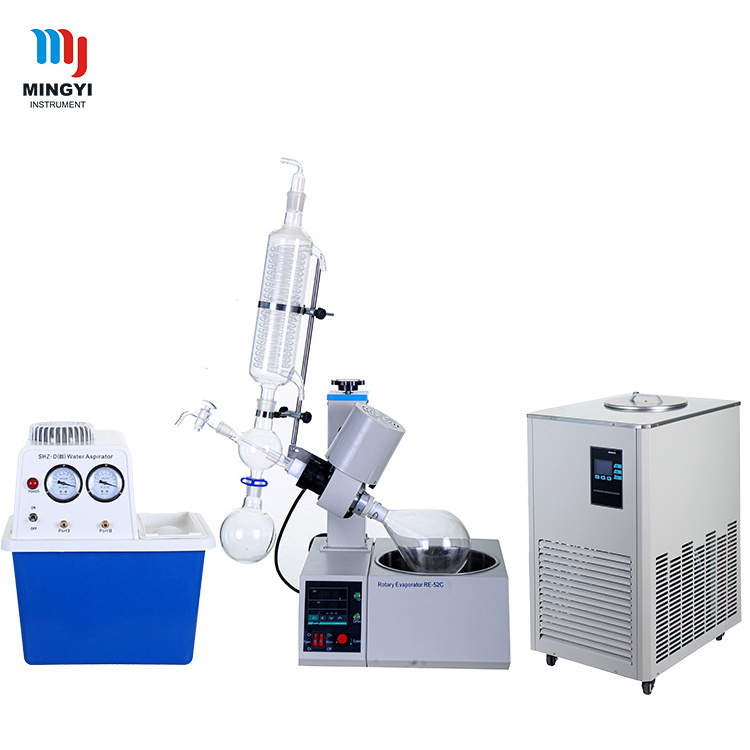

vacuum Roto vapis a common laboratory equipment. It's consisted with motors, distillation flask, heating pots, receiving flask, condensers and so on. This device is mainly used for continuous distillation experiments under vacuum conditions. Our company designed 10L, 20L, 30L ,50L medium vacuum Roto vapfor users to choose. The structure is as follows.
|
Model
|
RE-1002 Roto vap
|
RE-2002 Roto vap
|
|
|
Glass material
|
GG-17GG-17
|
|
|
|
Holder material
|
Stainless steelStainless steel
|
|
|
|
Pot material
|
Spray corrosion 490*430*540mm
|
Spray corrosion 630*534*638mm
|
|
|
Pot guts Material
|
Stainless steel 350*220mm
|
Stainless steel 450*250mm
|
|
|
Plate size
|
474*474mm
|
534*504mm
|
|
|
Rotary bottle volume
|
10L dia95 flanged
|
20L dia95 Flanged
|
|
|
Collective bottle volume
|
5L dia50 flanged
|
10L dia60 Flanged
|
|
|
Vacuum
|
0.098Mpa
|
|
|
|
Rotary power
|
120W
|
|
|
|
Rotary speed
|
0-110rpm
|
|
|
|
Heating power
|
3KW
|
5KW
|
|
|
Bath temp. range
|
0-400℃
|
|
|
|
Temp. control accuracy
|
±1℃
|
|
|
|
Voltage(V/Hz)
|
220V/50Hz
|
|
|
|
Lifting stroke
|
180mm
|
|
|
|
Size
|
970*480*1950mm
|
1170*540*2200mm
|
|
|
Packing size
|
1350*350*400mm 1280*570*660mm 0.6 7cubic
|
1370*700*680mm 700*680*740mm
1 cubic
|
|
|
Gross weight
|
100Kg
|
123Kg
|
|
|
Model
|
RE-3002 Roto vap
|
RE-5003 Roto vap
|
|
|
Glass material
|
GG-17GG-17
|
|
|
|
Holder material
|
Stainless steelStainless steel
|
|
|
|
Pot material
|
Spray corrosion 710*620*700mm
|
Spray corrosion 710*620*700mm
|
|
|
Pot guts Material
|
Stainless steel 500*280mm
|
Stainless steel 550*320mm
|
|
|
Plate size
|
804*574mm
|
|
|
|
Rotary bottle volume
|
30L dia125 Flanged
|
50L dia125 Flanged
|
|
|
Collective bottle volume
|
20L dia60 Flanged
|
20L dia60F langed
|
|
|
Vacuum
|
0.098Mpa
|
|
|
|
Rotary power
|
180W
|
|
|
|
Rotary speed
|
0-110rpm
|
|
|
|
Heating power
|
8KW
|
|
|
|
Bath temp. range
|
0-400℃
|
|
|
|
Temp. control accuracy
|
±1℃
|
|
|
|
Voltage(V/Hz)
|
220V/50Hz
|
|
|
|
Lifting stroke
|
180mm
|
|
|
|
Size
|
1520*620*2470mmmm
|
1520*620*2470
|
|
|
Packing size
|
1450*390*440mm 790*730*790mm
1.34 cubic |
1495*840*725mm 780*850*910mm
1.5cubic
|
|
|
Gross weight
|
170Kg
|
191Kg
|
|
Main Features
1. The main frame of stainless steel and aluminum alloy
2.Polytetrafluoroethylene and imported fluororubber combined seal
3. The real-time display of the vacuum is up to 0.098Mpa
4. GG-17 glass,High temperature resistance, anticorrosion
5. Continuous feed
6. Main cooling and cooling double condenser
7. Microcomputer based ON-OFF power switch control
8. Digital display of bath pot and intelligent constant temperature control
9 .Frequency conversion speed control (0-120rpm), digital display
10. Bath pot manual lifting
Product Details
Control Pannel
Temperature digital display.
Intelligent thermostatic controlled
Cu50 sensore quickly and accurately transfer temperature.
Vacuum gauge
The sealing system is composed of ptfe and imported fluorine rubber.
It can maintain high vacuum, the highest is up to 00098Mpa.
Product Advantages
Application Area
About Us
Mingyi Technology Co , Ltd
Mingyi Technology Co , Ltd was founded in 2015 , focusing on thedevelopment and sales of vacuum freeze-drying technology products，glassproducts , and some experimental instruments With " vacuum freeze dryermolecular distillation , glass reactor , rotary evaporator and " geneamplification instrument " as core products , it has formed different scales forscientific research experiments , medical , food industry , chemical industrylife science industry . The five series of products and targeted solutions fordifferent applications are new suppliers of lyophilization and experimentalsolutions that are popular at home and
abroadMingyi Technology has excellent technical strength , excellent sales , after-salesservice , products Exported to the United States , Russia , Canada , EuropeSoutheast Asia and South American countries , and has been recognized bythe majority of overseas customers .The company has developed a series of vacuum freeze dryers and perfectglass heating , stirring , separation , and extraction products to providecustomers with comprehensive freeze-drying and extraction solutions , fromsmall experiments to
large-scale production , to meet the different needs ofusers From ordinary small experimental freeze dryers to in-situ freeze dryersto square cabin in-situ freeze dryers , and later medicine and food productiondryers , we have continuously explored and made breakthroughs in the fieldof refrigeration technology and achieved major achievements .
abroadMingyi Technology has excellent technical strength , excellent sales , after-salesservice , products Exported to the United States , Russia , Canada , EuropeSoutheast Asia and South American countries , and has been recognized bythe majority of overseas customers .The company has developed a series of vacuum freeze dryers and perfectglass heating , stirring , separation , and extraction products to providecustomers with comprehensive freeze-drying and extraction solutions , fromsmall experiments to
large-scale production , to meet the different needs ofusers From ordinary small experimental freeze dryers to in-situ freeze dryersto square cabin in-situ freeze dryers , and later medicine and food productiondryers , we have continuously explored and made breakthroughs in the fieldof refrigeration technology and achieved major achievements .
Related Products
FAQ
1. What's the minimum order quantity?
One set at present.
2. When can the goods be delivered?
2-5 working days after payment for regular models and 5-10 working days for a customized model.
3. Can you accept OEM or ODM?
Yes, we can.
4. How to choose the suitable equipment?
Tell us your requirements, our professional sales will introduce you the most suitable model
One set at present.
2. When can the goods be delivered?
2-5 working days after payment for regular models and 5-10 working days for a customized model.
3. Can you accept OEM or ODM?
Yes, we can.
4. How to choose the suitable equipment?
Tell us your requirements, our professional sales will introduce you the most suitable model
