Quick Details
-
Model Number:
-
syf
-
Name:
-
Earth Auger
-
Suitable:
-
1-2.5 Ton Excavator
-
Torque:
-
1871 N.m
-
Warranty:
-
18 Months
Quick Details
-
Power Source:
-
auger drive
-
Application:
-
digging holes
-
Brand Name:
-
syf
-
Model Number:
-
syf
-
Name:
-
Earth Auger
-
Suitable:
-
1-2.5 Ton Excavator
-
Torque:
-
1871 N.m
-
Warranty:
-
18 Months
Digging Machinery Hydraulic Mini Earth Auger Drilling Machine Price

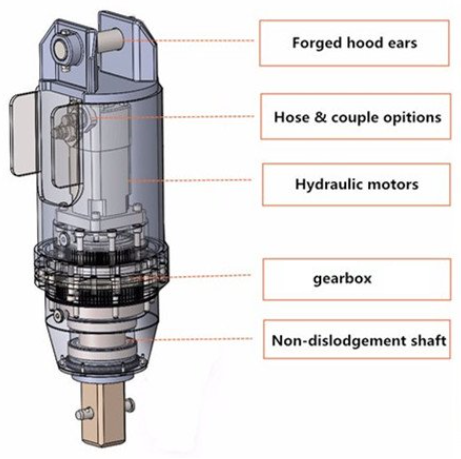

TOOLTUFF - EPG ATTACHMENTS Earth Auger is a kind of digging hole machine. It can be mounted to all common hydraulic excavators as well as mini excavator and other carrier like skid steer loader , backhoe loader , telescopic handler , wheel loader and other machinery.Our auger drive can installed with earth drill, stump planner, mixer bowl for different uses.
Application:
Specification:
| Model | Oil Folw | Max Torque | Pressure | Rotary Speed | Carrier | Oil Hose | Drill Dia. | |||
| gal./min | I/min | Lbf·Ft | N·M | Psi | Bar | Rpm | T | Inch | mm | |
| EPA2000 | 6-14 | 23-53 | 2537 | 1871 | 3000 | 205 | 40-92 | 1-2.5 | 1/2 | 100-400 |
| EPA2500 | 8-16 | 30-61 | 3297 | 2432 | 3000 | 205 | 40-82 | 1.5-3 | 1/2 | 100-500 |
| EPA3000 | 8-16 | 30-61 | 3900 | 2877 | 3500 | 240 | 40-81 | 2-3.5 | 1/2 | 100-600 |
| EPA3500 | 8-18 | 30-68 | 4900 | 3614 | 3500 | 240 | 32-72 | 2.5-4.5 | 1/2 | 100-750 |
| EPA4500 | 10-20 | 38-76 | 5719 | 4218 | 3500 | 240 | 32-64 | 3-5 | 1/2 | 100-900 |
| EPA5000 | 10-20 | 38-76 | 6855 | 5056 | 3500 | 240 | 29-58 | 4.5-7 | 1/2 | 150-600 |
| EPA5500 | 12-22 | 45-83 | 8012 | 5910 | 3500 | 240 | 28-50 | 5-7 | 1/2 | 150-750 |
| EPA6000 | 12-28 | 45-106 | 8338 | 6150 | 3500 | 240 | 34-80 | 6-8 | 3/4 | 150-900 |
| EPA7000 | 16-32 | 61-121 | 9397 | 6931 | 3500 | 240 | 37-72 | 7-10 | 3/4 | 150-900 |
| EPA8000 | 16-36 | 61-136 | 10911 | 8048 | 3500 | 240 | 29-64 | 8-12 | 3/4 | 150-900 |
| EPA10000 | 18-36 | 70-136 | 14612 | 10778 | 3500 | 240 | 26-45 | 10-13 | 3/4 | 150-900 |
| EPA12000 | 21-37 | 80-140 | 16236 | 11976 | 3500 | 240 | 22-43 | 13-17 | 1 | 150-900 |
| EPA15000 | 21-40 | 80-151 | 20399 | 15046 | 3500 | 240 | 20-39 | 13-17 | 1 | 150-1200 |
| EPA20000 | 21-45 | 80-170 | 25812 | 19039 | 3500 | 240 | 17-34 | 13-20 | 1 | 150-1200 |
| EPA25000 | 24-48 | 90-180 | 33825 | 24949 | 3500 | 240 | 16-30 | 15-23 | 1 | 150-1200 |
| EPA50000 | 26-74 | 100-280 | 68052 | 50195 | 400 | 280 | 11-30 | 21-50 | 1 | 300-2400 |
How to choose the right model?
1.The weight of your excavator/tractor/ Backhoe/Skid Steer loader?
|
Model of Excavator |
Weight of excavator |
Model of Earth Auger |
|
Cat226B |
2.6T |
REA2500,REA3000 |
|
Cat279C |
4.5T |
REA5500,REA5000 |
|
PC100 |
10T |
REA8000 |
|
PC320 |
23.7T |
REA20000,REA25000 |
2.Diameter and the Depth of hole to be drilled?
|
Diameter |
Depth |
|
From 100mm to 1200mm |
We can Provide the extension shaft |
3.Ground type to be drilled?
|
Sharp Teeth and Pilot |
Tungsten Teeth and Pilot |
Rock Teeth and Pilot |
|
Hard Rock, cement |
Sandy soil,Gravel Soil |
Rock and Pitch |
Aslo, these details just help you know our products quickly. Please feel free to contact with me ,that's my duty and honor to help you find the appropriate product
Packed in strong wooden boxes, Not easily damaged during transportation.
We can also provide OEM service(Color, Brand, Shape).
Sincerely invite global dealer!
epg a professional manufacturer which was found in 2002 has a lot of experience in construction machinery attachments producing and serving.Our factory is located in hangzhou City, ZJ Province, Near to Shanghai City. Which has large capacity to make various kinds products like hydraulic breaker, earth auger, quick hitch, Vibro ripper,pile breaker and other construction machinery attachments.We are always researching to improve our products’ performance and innovate designing to meet more and more clients’ demands.
Q: Are you a manufacturer?
A: Yes,our factory was established in 2002 and we have our own trading company.
Q: Are you sure your product will fit my excavator?
A: Yes, we are professional about this, you can also tell me your excavator model, and we will check it for you.
Q: Can you provide customers’ design?
A: Sure, we can provide OEM and ODM service.
Q: What’s the MOQ and payment terms?
A: MOQ is 1set. Payment via T/T,L/C, Western Union accepted, other terms can be negotiated.
Q: How about delivery time?
A: 5-25 work days after the payment, depend on your quantity.
Q: Which country have you exported?
A: Vietnam, Saudi Arabia, America, Thailand, New Zealand, Canada, Australia, Peru, Chile, Brazil, Mexico, South Africa, etc.
