Quick Details
-
Circulation Type:
-
Indirect / Closed Loop (Active)
-
Housing Material:
-
painted steel
-
Capacity:
-
500
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Jiadele
-
Model Number:
-
JDL-SP solar water heater
-
Name:
-
split solar water heater
-
Color:
-
as required
-
Tank material:
-
SUS-201,SUS-304,color steel,galvanized steel
-
frame material:
-
stainless steel,aluminium alloy
-
Tube material:
-
HBG 3.3
-
insulating material:
-
55mm polyurethane
-
Packing:
-
wood carton,paper carton
-
Delivery:
-
shipment
-
Port of load:
-
Shanghai
Quick Details
-
Warranty:
-
1 Year
-
Application:
-
Household
-
Type:
-
Evacuated Tube
-
Circulation Type:
-
Indirect / Closed Loop (Active)
-
Housing Material:
-
painted steel
-
Capacity:
-
500
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Jiadele
-
Model Number:
-
JDL-SP solar water heater
-
Name:
-
split solar water heater
-
Color:
-
as required
-
Tank material:
-
SUS-201,SUS-304,color steel,galvanized steel
-
frame material:
-
stainless steel,aluminium alloy
-
Tube material:
-
HBG 3.3
-
insulating material:
-
55mm polyurethane
-
Packing:
-
wood carton,paper carton
-
Delivery:
-
shipment
-
Port of load:
-
Shanghai
Products Description
The upright tank can keep the water temperature at different level.It can heat the top water instantly.The special structure can
prevent from mixing the cold and hot water together.

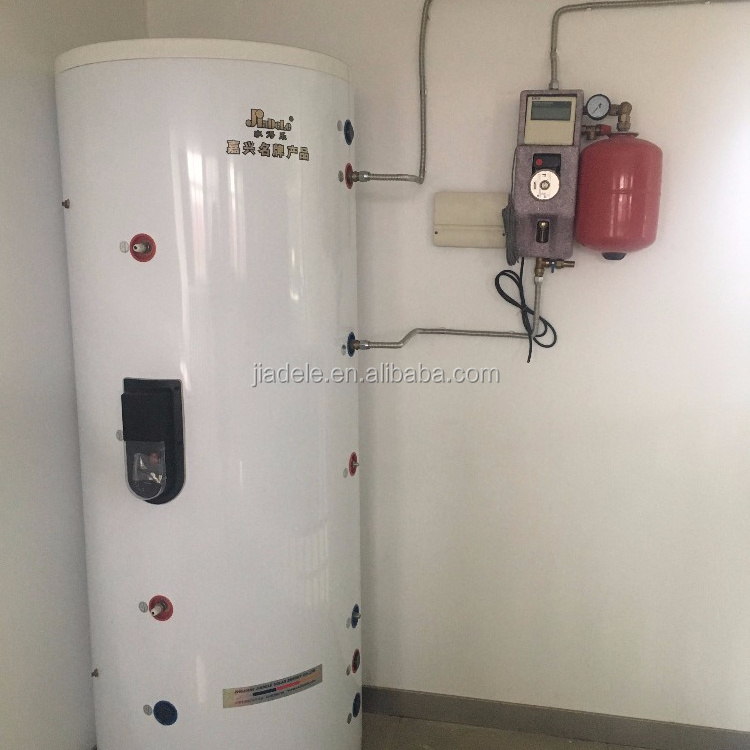

The tank is located in the building ,the connection pipe between the tank and water tap is very short,so that hot water can be
used instantly and seldom cold water flows out.
The tank is located in the building,the hot water loses less energy than the normal one.
The heater collector and the water tank is separated,that makes the system combine with the building perfectly,which will not
effectthe sightseeing of the building and the environment around.
Back up with electric heater so that in the day without sunshine hot water can also used.
Capacity:100L,150L,200L,260L,300L,400L,500L.
prevent from mixing the cold and hot water together.
The tank is located in the building ,the connection pipe between the tank and water tap is very short,so that hot water can be
used instantly and seldom cold water flows out.
The tank is located in the building,the hot water loses less energy than the normal one.
The heater collector and the water tank is separated,that makes the system combine with the building perfectly,which will not
effectthe sightseeing of the building and the environment around.
Back up with electric heater so that in the day without sunshine hot water can also used.
Capacity:100L,150L,200L,260L,300L,400L,500L.
|
Type
|
Tank
Specification |
Out tank Diameter
xHeight |
Lut tank
Diameter |
Lut tank
Material |
Heat Exchange Area
|
|
JDL-SP100-58/1.8-10(ONE COIL)
|
100L
|
480x1000
|
385
|
SUS304X
1.2TICK |
0.4m2
|
|
JDL-SP150-58/1.8-15(ONE COIL)
|
150L
|
480x1460
|
385
|
|
0.55m2
|
|
JDL-SP200-58/1.8-20(ONE COIL)
|
200L
|
570x1270
|
480
|
|
0.75m2
|
|
JDL-SP250-58/1.8-25(ONE COIL)
|
250L
|
570x1600
|
480
|
|
0.925m2
|
|
JDL-SP300-58/1.8-30(ONE COIL)
|
300L
|
570x1820
|
480
|
|
1.1m2
|
|
JDL-SP400-58/1.8-40(ONE COIL)
|
400L
|
750x1720
|
630
|
|
1.175m2
|
|
JDL-SP500-58/1.8-50(ONE COIL)
|
500L
|
750x1720
|
630
|
|
1.475m2
|
|
JDL-SP150-58/1.8-15(TWO COIL)
|
150L
|
480x1460
|
385
|
|
0.35m2/0.5m2
|
|
JDL-SP200-58/1.8-20(TWO COIL)
|
200L
|
570x1270
|
480
|
|
0.4m2/0.7m2
|
|
JDL-SP250-58/1.8-25(TWO COIL)
|
250L
|
570x1600
|
480
|
|
0.55m2/0.875m2
|
|
JDL-SP300-58/1.8-30(TWO COIL)
|
300L
|
570x1820
|
480
|
|
0.6m2/0.95m2
|
|
JDL-SP400-58/1.8-40(TWO COIL)
|
400L
|
750x1720
|
630
|
|
0.575m2/1.15m2
|
|
JDL-SP500-58/1.8-50(TWO COIL)
|
500L
|
750x1720
|
630
|
|
0.8m2/1.425m2
|
REMARK
Inner Tank :stainless steel SUS 304-1.2mm/porcelain inner tank
Out Tank:painted steel-0.6mm/stainless steel-0.6mm
Insulation:50mm Polyurethane
The inner tank material:SUS304-213;SUS316L stainless steel 1.2mm
The out tank :color steel or SUS304 stainless 0.5mm
The heat insulation material:Polyurethane
The thickness of the insulation:47.5-60mm
The use pressure:<6 bar
The test pressure:10 bar
The accessories:
The temperature and pressure relief valve
The sensor
The copper coil heat exchanger:one or two
The drain pipe
The installation method:vertical
Inner Tank :stainless steel SUS 304-1.2mm/porcelain inner tank
Out Tank:painted steel-0.6mm/stainless steel-0.6mm
Insulation:50mm Polyurethane
The inner tank material:SUS304-213;SUS316L stainless steel 1.2mm
The out tank :color steel or SUS304 stainless 0.5mm
The heat insulation material:Polyurethane
The thickness of the insulation:47.5-60mm
The use pressure:<6 bar
The test pressure:10 bar
The accessories:
The temperature and pressure relief valve
The sensor
The copper coil heat exchanger:one or two
The drain pipe
The installation method:vertical
