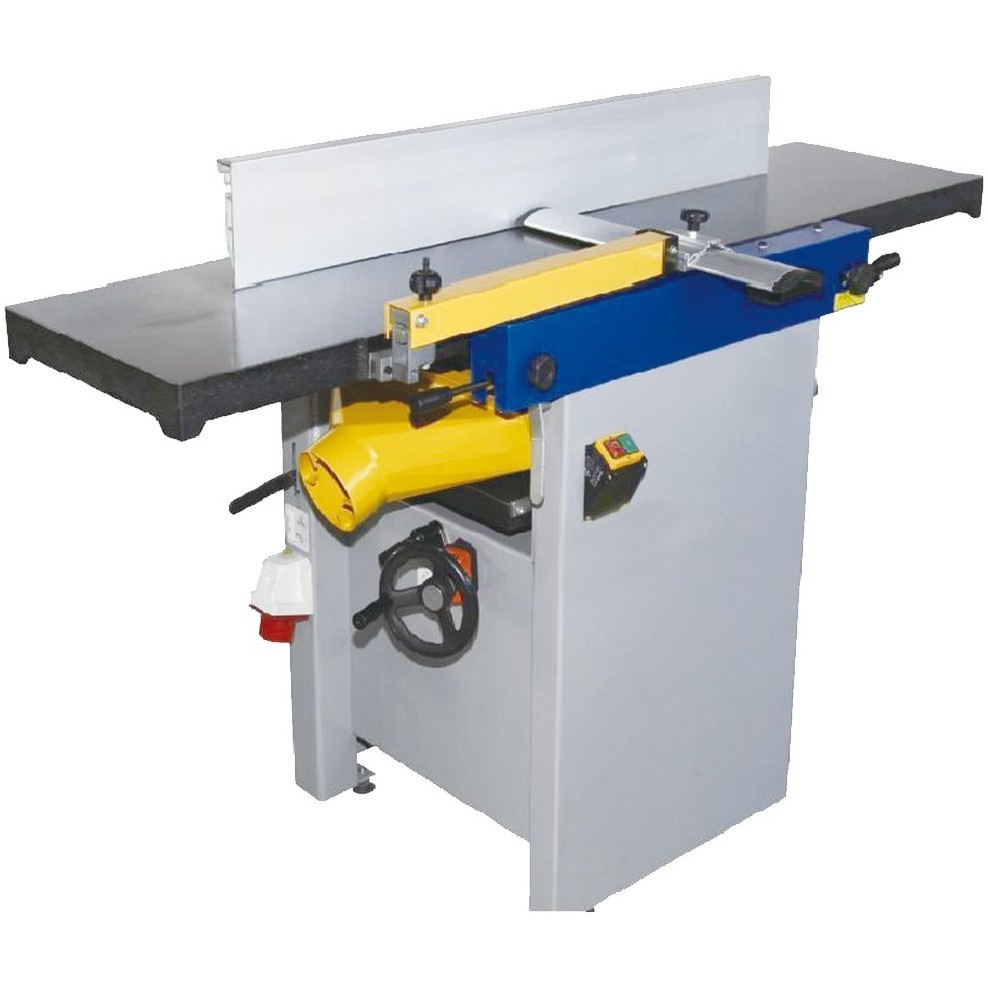

· Solid planer fence with prism guide, tiltable from 90º to 45º
· Maintenance-free 4-knife cutterblock features HSS-quality cutter knives
· Tiltable planer tables for quick conversion to thicknessing
· Both planer tables feature fine adjustment and table slots to reduce noise levels
· Integrated tiltable dust hood – extraction outlet 100 mm
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
China
-
Weight (KG):
-
260 KG
-
Power (kW):
-
3000
Quick Details
-
Max.Planing Depth(mm):
-
2 mm
-
Max.Planing Width(mm):
-
307
-
Marketing Type:
-
New Product 2021
-
Place of Origin:
-
China
-
Weight (KG):
-
260 KG
-
Power (kW):
-
3000
Exhibition
FEATURES
· Feed can be switched off when planing
· Switch-plug-combination with motor brake
· Torsion-free, grey cast-iron planer tables ensure best results
· Cutterblock guard in accordance with CE-standards guarantees high level of safety
· Thicknessing table runs on central column and is well supported for high accuracy
· Switch-plug-combination with motor brake
· Torsion-free, grey cast-iron planer tables ensure best results
· Cutterblock guard in accordance with CE-standards guarantees high level of safety
· Thicknessing table runs on central column and is well supported for high accuracy
Product Paramenters
|
Motor(w)
|
4Kw/3ph
|
|
Max blade size(mm)
|
254
|
|
Max planing width(mm)
|
408
|
|
Thickness height(mm)
|
3-225
|
|
Max chip removal(thicknesser mm)
|
4.5
|
|
Max chip removal(planer mm)
|
3
|
|
Feed speed(m/min)
|
7
|
|
Rubber outfeed roller-diameter(mm)
|
32
|
|
Thicknessing table size(mm)
|
600*408
|
|
Planer table size(mm)
|
1660*410
|
|
Dust outlet(mm)
|
120
|
|
Cutterblock diameter(mm)
|
70
|
|
Cutterblock speed(rpm)
|
5500
|
|
Knives(mm, pcs)
|
HSS,410*25*3mm,3pcs
|
|
Fence tilt
|
45°/90°
|
|
Machine dimensions(mm)
|
1660*870*100
|
|
Machine weight(kgs)
|
260*300
|
|
Packing size(mm)
|
1670*690*980
|
|
Units20°40°(pcs)
|
18/42
|
