The best solar collector water heater with heat pipe brass tube Solar Heat spare part

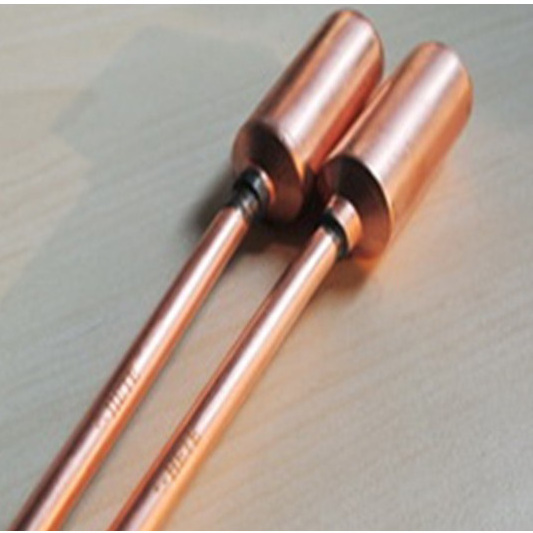

pressure solar heat pipe solar collector part of copper heat pipe

heat pipe solar water heater vacuum tube

we are a manufacture of solar water heater in China. We sell solar water heater,Solar vacuum tube, Frame.

we are the constituent company of Ocean International Group in Honkong, which is located in Haining , Zhejiang province. we are mainly focus on solar water heaters. our solar water heater factory is in Yuanhua Town.

our company is one of the 6 excellent private enterprises showed in 2010 shanghai expo. we are one of the 19companies who have got BVdepth certification among the total 5000solar water heater companies.

what's more, we are golden supplier on alibaba, and one of the founders of alibaba WHOSLE platform. we are also CCC, CE and ISO9001 certificated

Brief Introduction of Sunny Water

1) The products use super heat condition pipe and has a good effect of heat exchange.

2) The insulation layers use the up-to-date technology and has a good effect of temperature preservation which allows the water to stay warm for about 70 hours

3) Superior heat-preservation ensured by one-off molding polyurethane foam with thickness 50-60mm

4) Stable and reliable performance,well wind resistance

5) Meet the mankind healthy bath standard,the material of inner tank is SUS304-2Bstainless steel plate,the silica gel ring sealing has a long life against the erosion and it do no harm to health.

Advantages of Sunny water

1)Highly efficient zbsorber of high performance with daily average effciency over 40%-50%

2)Start up quickly heat pipe transfer the heat energy into the storage tank in one condition

3)With stand pressure of 0.2Mpa,can be connected directly with city water pipe

4)Highly efficient insulation with polyurethane foam

5)Can be used all year round even in the cold weather

6)Automatically controlled

7)Highly heat absorber and less in heat losing

8)For both flat roof and slope roof

Features:

a. Best heating efficiency: Heat pipe as heat exchanger, good absorbent coating and best combination between them

b. Wide applicable range: As the heat pipe has less heat capacity, it works very quick even under cloudy days and collect heat effectively. It can work normally even -30 degrees. As no water in the vacuum tube, it can effectively prevent low heat efficiency due to frost cracking or scaling!
c. Each individual tube can work independently, and the whole system can still work if any one of them get damaged. The lifespan of our heat pipe is more than 15years.
d. The connection between the heat pipe and vacuum tube is good and vacuum tube can be replaced if broken!

Working principle:

a. On heat-pipe collector, the condenser of heat pipe is inserted to the copper manifold.
b. After the solar energy is absorbed by the vacuum tubes, it is transferred to the heat pipe through the aluminum fin.
c. The medium in the heat pipe will work and transfer the heat to the condenser.
d. When water or other medium in the water pipe flows across the copper manifold, they will be heated.
e. The heated water or other medium makes water in the tank hotter and hotter by running through the coils in the tank.

Data sheet:
