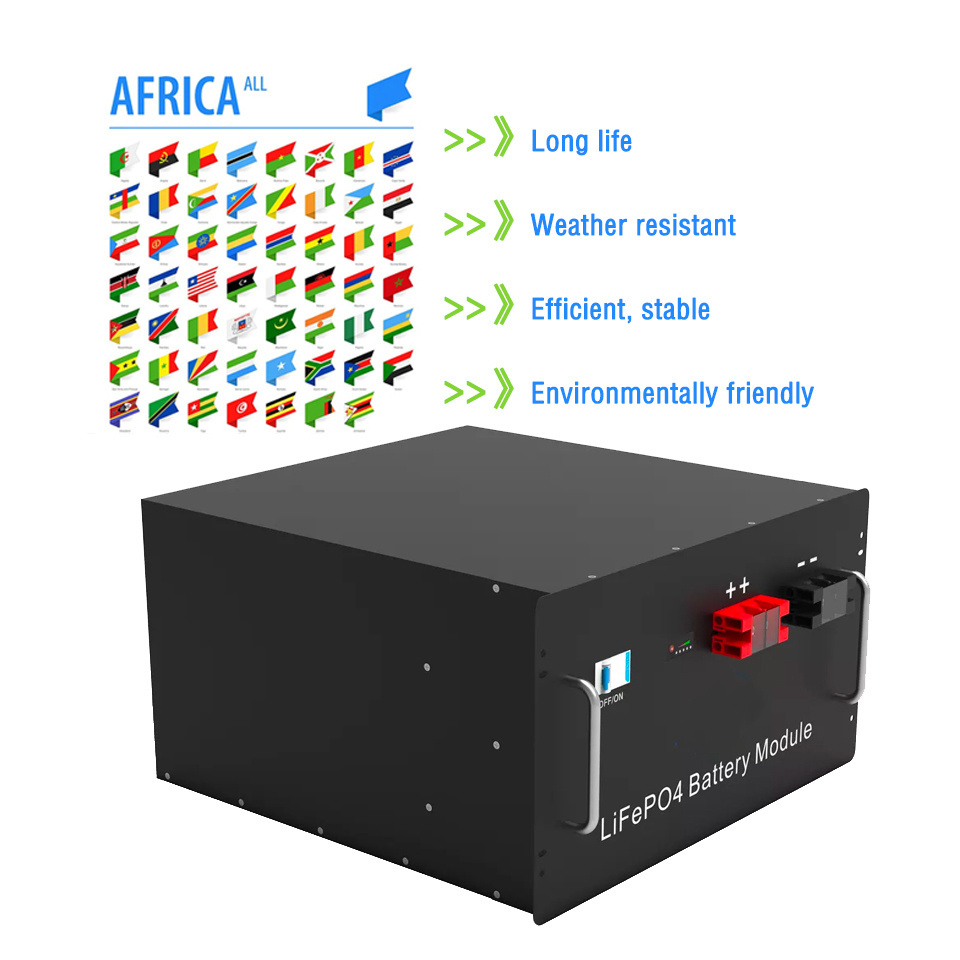

2024 Lowest price 6000 cycle grade A lifepo4 battery 24v 100ah 200ah lithium ion lithium battery lifepo4 battery 24V

2024 Lowest price 6000 cycle grade A lifepo4 battery 24v 100ah 200ah lithium ion lithium battery lifepo4 battery 24V

FOB Reference Price: Get Latest Price

≥2 Pieces

US $248

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Dimension (L*W*H):: 475*450*133mm

Weight:: 35kg

Product name:: Lifepo4 Lithium ion Battery

Battery cell:: Grade A 3.2V 100Ah LiFePO4 Cell

Cycle life:: 6000 Cycles

Nominal Voltage:: 25.6Volts

Nominal Capacity:: 100AH/200AH

Certificate:: CE/RoHS/UN38.3/MSDS

Warranty:: 5 Years

Inverter Type:: Pure Sine Wave

Controller Type:: MPPT

BMS:: Smart BMS System

Quick Details

Model Number:: 24V100Ah

Brand Name:: SMS

Place of Origin:: Guangdong, China

Dimension (L*W*H):: 475*450*133mm

Weight:: 35kg

Product name:: Lifepo4 Lithium ion Battery

Battery cell:: Grade A 3.2V 100Ah LiFePO4 Cell

Cycle life:: 6000 Cycles

Nominal Voltage:: 25.6Volts

Nominal Capacity:: 100AH/200AH

Certificate:: CE/RoHS/UN38.3/MSDS

Warranty:: 5 Years

Inverter Type:: Pure Sine Wave

Controller Type:: MPPT

BMS:: Smart BMS System

Product Description

Model No	48100	48150	48200	51100	51200
Batteries materials	Lithium iron phosphate
Series parallel mode	15S1P	15S2P	15S1P	16S2P	16S2P
Nominal voltage	48v	48v	48v	51.2V	51.2V
Nominal capacity	100Ah	150Ah	200Ah	100Ah	200Ah
Size（mm）	465440195	482590178	500440260	490440170	670480350
Weight	45kg	76.5kg	80kg	50kg	85kg
Color	Optional
Parallel support	Parallel terminals are supported
Output port mode	terminal
Charging way	CC/CP/VP
Charging current	0.2C(standard）
Maximum charging current	Max0.5C @25℃
Discharge way	CC/CP/VP
Discharge current	0.5C
Charge cut-off voltage	54.75V/CELL	54.75V/CELL	58.4V/CELL	58.4V/CELL	58.4V/CELL
Maximum discharge current	Max1C @25℃	Max0.8C @25℃	Max0.6C @25℃	Max0.6C @25℃	Max0.6C @25℃
Discharge cut-off voltage	42v	42v	44.8V	44.8V	44.8V
According to	LCD
Communication interface	RS485/RS232/CAN
Charging operating temperature	charging:0~+50℃
Discharge operating temperature	discharge:-20~+55℃
Warranty	5 years
Applicable scope	hospital, bank data center, base frame type home,enterprise energy storagebackup power supply, wind complementary system,office, military, base station and other uninterrupted energy storage power supply.

Contact us for more details

Features - Long warranty period: 3-5 years -Lithium iron phosphate battery - Support parallel expansion - Higher energy density and smaller size, suitable for home use. - Photovoltaic system: The battery pack is designed for household photovoltaic system. - Battery Management System (BMS): The built-in BMS monitors battery operation and prevents the battery from operating outside of design limits. - Expandability: The battery pack can be easily expanded by adding extension cells in parallel. SMS Energy is the right supplier for you: We are a professional energy storage battery factory, factory headquartered in Dongguan, China, listed company, excellent enterprise in China. Our products include 24V, 48V lithium batteries, solar inverters, solar panels, and we are contracted to design and install large-scale energy storage projects, and we have already laid a number of large-scale projects in the Middle East and Africa, including the Saudi Arabia Smart City project, and the Africa ups reserve power project. Accept *OEM/ODM service. We can customize the products according to your requirements to ensure 100% quality to your expectation. *Quality local after-sales service. If there is any problem with the product, we have professional after-sales technical engineers to help you solve it. *Alibaba Gold Certified Supplier. Five-star merchant If you are interested in our products or services, please contact us immediately! *Alibaba Gold Certified Supplier.

Product Usage

Household solar power supply system

By storing energy during the day and meeting the needs of household appliances at night, we can save your electricity costs and save energy and environmental protection;

As an emergency backup power source for households, providing power support in case of power outages or other emergency situations.

Supporting parallel connection of multiple batteries

The LiFePO4 battery is a smart battery to match all off-grid and hybrid solar inverter (48Vdc/51.2Vdc) types.

When the battery needs to be used in parallel, the maximum connection is 15 units. And we recommend 2-8 units according to application.

Why Choose Us

Cooperative Partner

Company Introduction

About Us

Shenzhen SMS Energy Storage Technology Co., Ltd. is the holding subsidiary of Zhengzhou Sanhui Electric Co., LTD. (stock code:002857). Zhengzhou Sanhui Electric Co., LTD. founded in 1996, is mainly engaged in the research and development, design,production and sales of electric energy metering instruments, and can provide standard and calibration comprehensive solutions for smart grid metering instrument users, manufacturers and verification institutions.

Now it has formed four industrial sectors:electric energy metering device, power transformer, power load management collection terminal and energy storage system. Shenzhen SMS Energy Storage Technology Co., Ltd. with 101 patents and software, is a state-level high-tech enterprise. Based on the development of smart grid construction,Shenzhen SMS Energy Storage Technology Co., Ltd.to providing intelligent automation products for customers in the power industry, with new energy power generation enterprises, power grid companies and industrial and commercial users as the main target customers.

Focusing on the research and development, production, sales and service of energy storage products on the power supply side, the power grid side and the user side, deeply involved in the development of green energy and the construction of new power systems, committed to providing customers with high-quality MW energy storage

systems, household energy storage systems and overall solutions, is a scientific and technological innovation enterprise integrating research and development, manufacturing, sales and service. Our company always adheres to the principle of "building first-class brand with strong technical strength, ensuring first-class product quality with advanced management", takes the mission of "continuously creating value for customers and providing development platform for employees", and adheres to the principle of "teamwork, honesty, innovation and service to the society". Aim, dedicated to provide our customers with the best quality service.

FAQ

Q1. Are you a manufacturer?
A. Yes, sir, we have our own factory, the price is factory direct.

Q2. Can I have a sample order?
A. Yes,welcome sample order to test and check quality.

Q3. What about the lead time?
A. Sample 5-10 days, mass production time 3-5 weeks depending on order quantity.

Q4. Do you have any MOQ limit?
A. Yes, but low MOQ, 1~10pcs sample order is available.

Q5. How do you ship the goods and how long does it take to arrive?
A. We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Bigger order shipped by air or by sea.

Q6. How to proceed with an order?
A. 1st, please let us know your requirements or application. 2nd, We offer our quotation. 3rd, customer confirms the samples and make a deposit for formal order. 4th, We produce your order.

Q7. Can you print my logo on the product?
A. Yes. Please supply us the artwork before mass production.

Q8. How about after-sales service?
A. We will provide you with a 3 years warranty. If there are any problems, please let us know and we will provide you with a
positive solution.

Please feel free to contact us for Price, Packing, Shipping and Discount.
