Automatic 150Kg/H Pet Food Shrimp floating fish pet feed extruder food making machine animal feed dog food extruder

Automatic 150Kg/H Pet Food Shrimp floating fish pet feed extruder food making machine animal feed dog food extruder

FOB Reference Price: Get Latest Price

≥1 Sets

US $11500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Dimension(L*W*H):: Customize

Weight:: 1000 kg

Item name:: Fish feed pellet making machine

Usage:: Producing Animal Feeds Pellets

Keywords:: Aniaml Feed Machine

Function:: Feed Pellet Production Machine

final pellet:: 2.5-10mm Pellet

Raw material:: Bran, maize, soybean, cereal

Spare parts:: Flat Die+ Rollers

Application:: Application

Quick Details

Max. Capacity:: 15 ton/h

Place of Origin:: China

Voltage:: 220V/380V

Dimension(L*W*H):: Customize

Weight:: 1000 kg

Item name:: Fish feed pellet making machine

Usage:: Producing Animal Feeds Pellets

Keywords:: Aniaml Feed Machine

Function:: Feed Pellet Production Machine

final pellet:: 2.5-10mm Pellet

Raw material:: Bran, maize, soybean, cereal

Spare parts:: Flat Die+ Rollers

Application:: Application

Products Description

1.Description of Granules pet food extruder machine:
1) . All pet food equipments are made of stainless steel.
2). The pet food whole line fully continuous and automatic.
3). MIKIM provide basic pet food formula according to your require.
4). The final pet food shapes and sizes can be various by changing the mould.
5). Supply different size mould free of charge.
6). Packing machine could be supplied to work with the pet feed production line (depending on your require).
1.Raw Materials: Meat Meal, Fish Meal, Corn Powder, Soya Meal and Other Grain Powder

2.Products: Pet Food, Like Dog, Cat, Fish, Bird Food etc. with Different Shapes and Tastes by
Changing the Dies and Formulations.
3.Granules pet food extruder machine Capacity: 120-150 KG/H,200-250 KG/H,400-500 KG/H,800-1000 KG/H.
4.Voltage: Three phases: 380V/50HZ, Single phase: 220V/50HZ, we can make it according to
customers' local voltage according to different countries.

Details Images

Advantages Of Wet Twin-Screw Production Line

1. The whole assembly line is equipped with total control electric box, 1-2 people can run and operate. 2. Reliable work, sturdy and durable, low failure rate, easy operation and maintenance.

3. The screw has a strong pumping effect, the material viscous diffusion effect is stronger, the propulsion speed is faster, the product quality is stable.

4. No adhesive is needed for processing floating feed, and the stability can be maintained in the water for more than 12 hours.

5. The palatability of feed is improved. After puffing the feed material, the flavor increases, palatability improves, and can stimulate the appetite of animals and birds.

Granules pet food extruder machine Product Details:

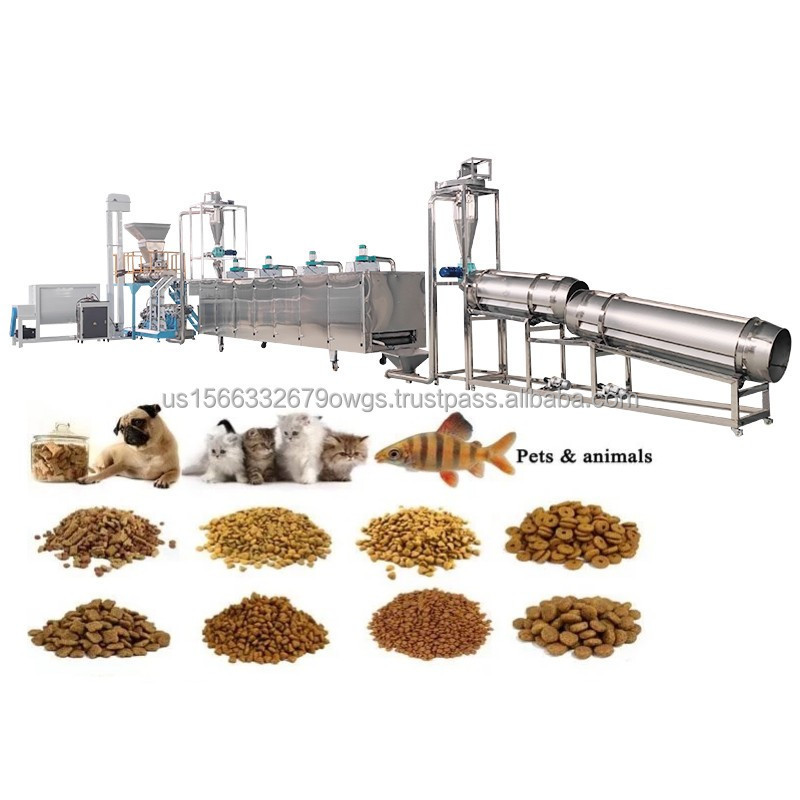

Mixer→screw conveyor→twin screw extruder→air conveyor→dryer→hoister→flavoring drum and oil sprayer→cooling machine→packing machine

Raw material mixer

Application:mix the raw materials, fast speed, no leakage.
Capacity:20kg/time, 50kg/time, 100kg/time, 200kg/time, 500kg/time etc.
Material:stainless steel
Power:3kw, 4kw, 7.5kw
Dimension:880*510*1170mm

Screw feeder

Application:convey the
Power :0.75kw
Capacity:equipment with the output
Dimension:3100*590*2200mm
Material:stainless steel

Twin screw extruder

Application:To make the raw materials into required shape and size
Type :65, 70, 85,95
Capacity:100-150kg/h
Power:22kw, 37kw, 75kw
Material:Screw materials 38CrMoAl stainless steel, carbon steel

Dryer

Application:the expanded food go through the "s" passage, to be dried to increase the self life.
Heating type:electrical, steam, gas fired, diesel fired heating type
Capacity:100kg/h to 10 ton/h
Material:stainless steel, carbon steel

Flavoring machine

Application:To mix the oil and flavors on dry final pet food
Power:0.75kw
Type:single drum or double drum
Capacity:100kg/h to 500 kg/h
Material:Stainless steel

Recommend Products

Wet Single Screw Extruder Machine

MODEL	CAPACITY	POWER	CONDITIONER	CUTTER
65	0.3T/H	22KW	3.0KW	0.75KW
70	0.5T/H	37KW	3.0KW	1.1KW
80	0.8T/H	55KW	5.5KW	1.5KW
85	1.0T/H	75KW	7.5KW	2.2KW
90	1.5T/H	90KW	11KW	3.0KW
120	2.0T/H	110KW	15KW	3.0KW

Wet Twin Screw Puffing Machine

MODEL	CAPACITY	POWER	SCREW DIAMETER	WEIGHT
75-B	0.3-0.4T/H	22KW	80MM	1000KG
85-B	0.5-0.6T/H	30KW	90MM	2000KG
90-B	0.6-0.7T/H	37KW	100MM	2100KG
100-B	0.7-0.8T/H	55KW	120MM	2200KG
135-B	1-1.5T/H	75KW	135MM	3200KG
145-B	2-3T/H	90KW	145MM	4000KG
160-B	3-4T/H	110KW	160MM	4500KG
175-B	4-5T/H	132KW	175MM	5000KG

DGP Series Extruder Machine

Model	40	60	70	80
Power	5.5KW	15KW	18.5KW	22KW
Yield	120-150	180-220	240-300	400-500
Weight	350KG	450KG	500KG	580KG
Size（mm）	150011001100	160013001250	160013001250	180014001350

Model	100	120	135	160
Power	37KW	55KW	75KW	90KW
Yield	700-1000	1200-1500	1500-1800	2000-2400
Weight	750KG	850KG	950KG	1200KG
Size（mm）	197029001150	220029001200	235029001200	235029001400

LX Series Extruder Machine

Model	45	65	75	85
Power	5.5KW	15KW	18KW	22KW
Yield	140-160	200-240	260-320	450-550
Weight	350KG	500KG	550KG	750KG
Size（mm）	18008101080	17009701240	17009701240	185010701400
