OEM 100% Virgin Materials Polishing Cemented Carbide Rod New Tungsten Carbide Round Bar For Tool Parts

OEM 100% Virgin Materials Polishing Cemented Carbide Rod New Tungsten Carbide Round Bar For Tool Parts

FOB Reference Price: Get Latest Price

≥10 Pieces

US $10

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: SR20240515C15, Tungsten bar

Particle:: >=1800

OEM:: accepted

Application:: make various drill bits

Surface:: Blanks Unground/ground/Polished

Packaging Details:: Plastic box, woodbox, carton or customized

Supply Ability:: 10000 Piece/Pieces per Month

Material:: WC+CO

Quick Details

Alloy Specification:: YG3

Place of Origin:: Hunan, China, Zhuzhou China

Brand Name:: Sunrise

Model Number:: SR20240515C15, Tungsten bar

Particle:: >=1800

OEM:: accepted

Application:: make various drill bits

Surface:: Blanks Unground/ground/Polished

Packaging Details:: Plastic box, woodbox, carton or customized

Supply Ability:: 10000 Piece/Pieces per Month

Material:: WC+CO

Product Paramenters

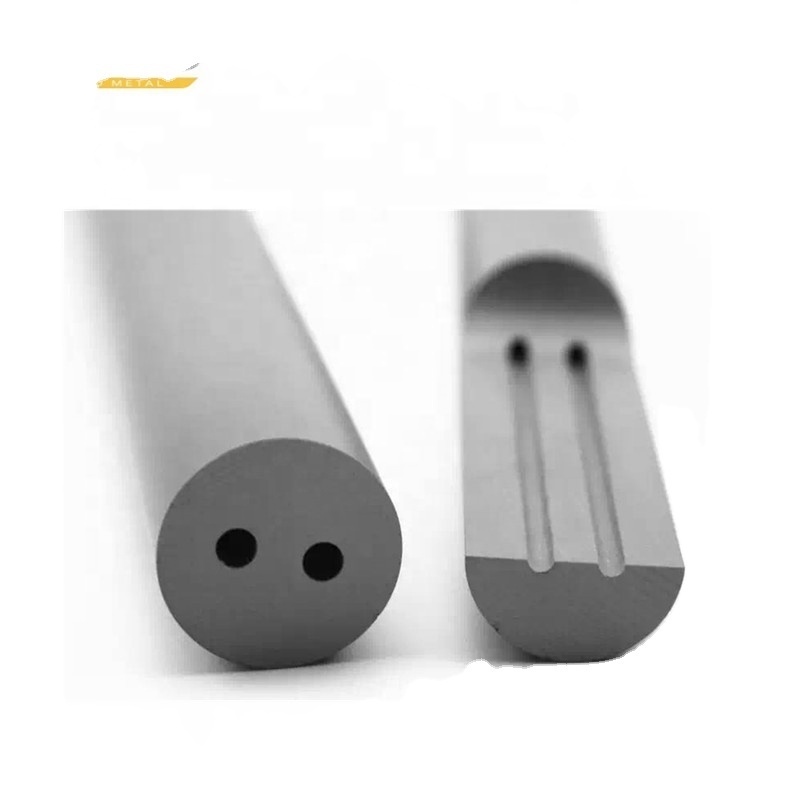

Tungsten carbide solid rod

Material:Tungsten carbide (cemented carbide)

Application: Tungsten carbide solid rods are mostly applied for drill bits,end mills, and reamers with sub-micron grain grade YG10X, for
non-ferrous precision cutting and wood cutting with grade YG6X, and for fiberglass reinforced plastics, titanium alloys, hardened
steel with ultra-fine grain grade YG8X.

Grade	Applications recommended
YG06	Suitable for machining composite materials, such as aluminum-magnesiumalloys,reinforced plastics, and carbon fiber, iron-based alloys,etc.It isrecommended for making drills for machining aluminum-magnesium alloys.
YG09	Suitable for making carbide tools,such as helical milling tools with high hothardness and impact toughness. It is recommended for the roughing ofcommon carbon steel.
YG10	Suitable for machining common steel, cast iron, stainless steel,heat-resistantsteel,nickel based alloys and titanium alloys, etc. It is recommended for making conventional tools, such as twist drills, end mills, screw taps, drills,etc.
YG12	Suitable for machining titanium alloys,heat-resistant alloys,stainless steel,hardened steel,grey cast iron, glass fiber reinforced plastics, etc. It isrecommended for making end mills and ball nose mills of various specificationswith a higher hardness and strength than YL10.2.
YG13	It possesses better wear resistance, high transverse rupture strength,goodtoughness and impact resistance. Suitable for machining stainless steel,especially for the roughing and semi-finishing operations of austenitic stainlesssteel. It is suitable for machining heat-resistant alloy steel at low speeds.
YG15	Suitable for making solid dies and moulds and tools for punching operations.

Details Images

Polished carbide rod

The diameter tolerance is h5 ,h6,H5,H6

The length tolerance is 0 to 0.5mm

Blanked carbide rod

The diameter OD1to OD10 tolerance is 0 to +0.5mm

The diameter OD11 to OD20 tolerance is 0 to +0.8mm

The diameter OD21 to OD 50 tolerance is 0 to +1.5mm

The length 330mm tolerance is 0 to 2mm

Detail drawing

Detail size

We can accept OEM

Our Advantages

1. Run-out and Roundness can be less than 5 micron(+0.005/-0.005mm);2. Large stock & Fast Delivery & Good Price3. A special Hot
Isostatic Press (HIP) process provides quality improvement to the finished products to ensure meterial reliability4.Submicro Grain
Size, with all HIP treatmemt5.Made from extra-fine grain size (0.5~0.7μm) of tungsten carbide powders, TDC has developed series of
sub-micro grades with HIP treatment for the different applications of solid carbide rod which all have good performance. Sintered
blanks and h5,h6 precision grinding are both available.
