1) Using forge steel machine head, more durabler than general steel.
2) CNC operation panel, simple controls and operation.
3) CNC system, high crimp accuracy which is within 0.01mm.
4) Equipped with a foot pedal, very convenient for free hand operate.
5) Magnetic dies (Patented), very convenient to remove and install dies.
|
Product Parameter
|
|
|
|
|||
|
Specifications
|
H.C. Material
|
Forge Steel
|
|
|||
|
|
Crimping Range
|
3mm-80mm
|
|
|||
|
|
Max. Hydraulic Hose
|
2" 4SP (ID 51mm)
|
|
|||
|
|
Max Opening
|
+25mm
|
|
|||
|
|
Opening without Dies
|
118mm
|
|
|||
|
|
Crimping Force
|
2000kN/200T
|
|
|||
|
|
Length of Master Dies
|
80mm
|
|
|||
|
|
Length of Dies
|
45/50/65/80mm
|
|
|||
|
|
System Pressure
|
31.5Mpa
|
|
|||
|
|
Operation Mode
|
CNC/Automatic
|
|
|||
|
|
Power Voltage
|
110-480V
|
|
|||
|
|
Matching Power
|
4kW
|
|
|||
|
|
Dimension (L*W*H)
|
650×500×730mm
|
|
|||
|
|
Net Weight
|
260kg
|
|
|||
|
|
Die Sets
|
14sets
|
|
|||

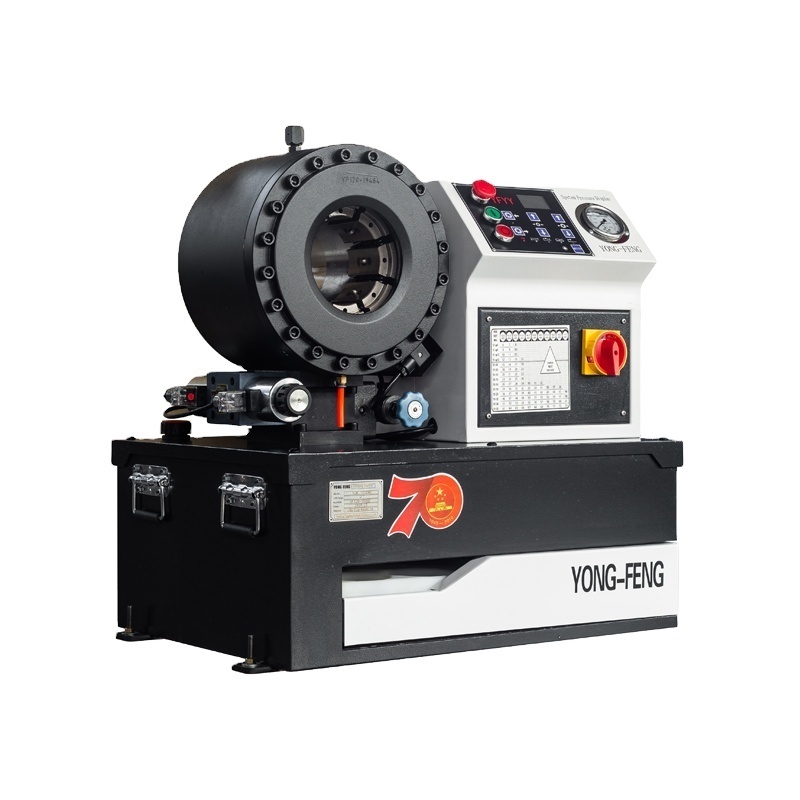

Model
YONG-FENG F32D
CNC crimping machine has equipped with computer numerical control system, fast crimp and good quality. This machine features small and portable appearance, high crimp accuracy and easy to operate. It makes the mould base division to be more even through the double inclined plane eight-flap mould seat equipped with a high accuracy guiding device.
YONG-FENG F32D
crimper is mainly used for crimping processing for high pressure hydraulic hose assembly in the mechanical engineering. It can also be used for crimping steel pipes, especially large pipes and irregular shape pipes.
Attribute:
Forge Steel
Original: Germany Technology
Front cover, cylinder and piston use Chrome40, forging integrity, increase its fatigue resistance. Surface hardness is HRC26-30°, hardness of inside layer is HRC59-63°, Eht 2mm.
Attribute: Strong Magnetic Connection
Original:
YONGFENG(Patented)
Use Cr12 standard die steel which is a classical alloy tool steel,
8mm hydraulic crimping machine
domestic implementation standard is GB/T 1299-2000. Dies and die base is connected by cutting-the-edge technology of strong magnetic connection, for which our company holds the patent.
Attribute:
39.852N Pushing Force
Original:
Germany SED
It is used to adjust the hydraulic oil flow direction, quantity, speed etc. With high precision and good flexibility. The reversing valve spool is original Germany SED. Working with stability, no shaking, no blocking.
Attribute: CNC Operation Panel
Original:
China(Mainland)
YONG-FENG F32D
8mm hydraulic crimping machine,
machine has equipped with computer numerical control operation panel which is more humanized than the ordinary ones. Computer numerical control operation system makes crimping more accurate, faster and simpler.
Yongfeng Crimpers, the professional manufacturer of hydraulic hose crimpers, cutter, skiving machine, test bench, hoses & fittings assembly and accessories for over 20 years. Yongfeng Crimpers supply the Portable, On-site mobile, Workshop and Industrial hose crimpers, which have widely used in industries of hydraulic repair service of construction machinery, agricultural machinery, vehicle repair, production of industrial hoses, hydraulic equipments, On-site service, oil fields, mining hydraulic prop, greenhouse, galvanized steel pipes etc.
Yongfeng Crimpers have covered more than 20 domestic provinces and cities in China's markets and exported to more than 80 countries as follows: European market, such as Poland, Bulgaria, Germany, Italy, Denmark, Russia, Malta; American market, such as Uruguay, Mexico, Bolivia, Columbia, Canada; Oceania market, such as Vanuatu, New Zealand, Australia; Asia market, such as Sri Lanka, India, Pakistan, Philippines; Middle East market, such as Kuwait, UAE; African market, such as Algeria, South Africa, and so on.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory & Office.
* Warranty for 3 years.
* Training how to instal and use the machine.
* Provide free quick-wear part.
* PAY to our company's CITIBANK account designated by Alibaba.com with credit card or bank transfer.
* 100% product quality protection; 100% on-time shipment protection; 100% payment protection.
* 100% T/T in advance(normal models in stock).
* 50% T/T in advance, balance paid before delivery(for the customized models).
|
Packing
|
|
|
|
Size
|
750(L) * 600 (W) * 830 (H)mm
|
|
|
Gross Weight
|
270kg
|
|
|
Packaging Details
|
The normal package for our 8mm hydraulic crimping machine is Wooden Plywood Crate. The outside package is standard export wooden case, and the inner package is stretch film or packaged according to customers special request.
|
|
* The normal models of crimping machines are in stock, they can be delivered once the payment is finished. As for the customized ones, we promise that they can be deliverd within a week after we received the payment.
* Transportation, the first choice is shipping, air or land is also avaliable if customers have special request.
1.Q: What's the difference of your machine with others?
A: FORGE Steel machine head, 3 times stronger than general machine.
CNC operation system, high crimp accuracy which is within 0.01mm.
2.Q: Are you the manufacturer or trading company?
A: We are the manufacturer for crimping machine over 20 years, since 1992.
3.Q: What about the price?
A: Competitive price, the advanced technology and high quality you ever have.
4.Q: Why we choose YONG-FENG?
A: CE & ISO certifications, Alibaba Assessed Supplier and every machine warranted for 3 years.
5.Q: What is the MOQ of 8mm hydraulic crimping machine ?
A: We would like to provide 1 set for you test.
6.Q: If I can not find the machine which I need,what should I do?
A: Pls contact me on line or inquiry, write down your request and email, I will reply you as soon as possible.
