Quick Details
-
WIFI:
-
NO
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Koumay
-
Model Number:
-
PJ-3527TO
-
Rated Load:
-
DC 30V 1A
-
Housing Material:
-
PA66/PA6T/PA9T/ PBT
-
Withstand Voltage:
-
AC500V(50Hz)/min
-
Insulation Resistance:
-
≥100MΩ
-
Temperature Range:
-
-30~70℃
-
Contact Resistance:
-
≤0.03Ω
-
Actuating Force:
-
3-30N
-
Lifespan:
-
5000times
-
Certificate:
-
ROHS
-
Certification:
-
ROHS
Quick Details
-
Rated Voltage:
-
30V
-
Rated Current:
-
1A
-
Application:
-
Electronics
-
WIFI:
-
NO
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Koumay
-
Model Number:
-
PJ-3527TO
-
Rated Load:
-
DC 30V 1A
-
Housing Material:
-
PA66/PA6T/PA9T/ PBT
-
Withstand Voltage:
-
AC500V(50Hz)/min
-
Insulation Resistance:
-
≥100MΩ
-
Temperature Range:
-
-30~70℃
-
Contact Resistance:
-
≤0.03Ω
-
Actuating Force:
-
3-30N
-
Lifespan:
-
5000times
-
Certificate:
-
ROHS
-
Certification:
-
ROHS

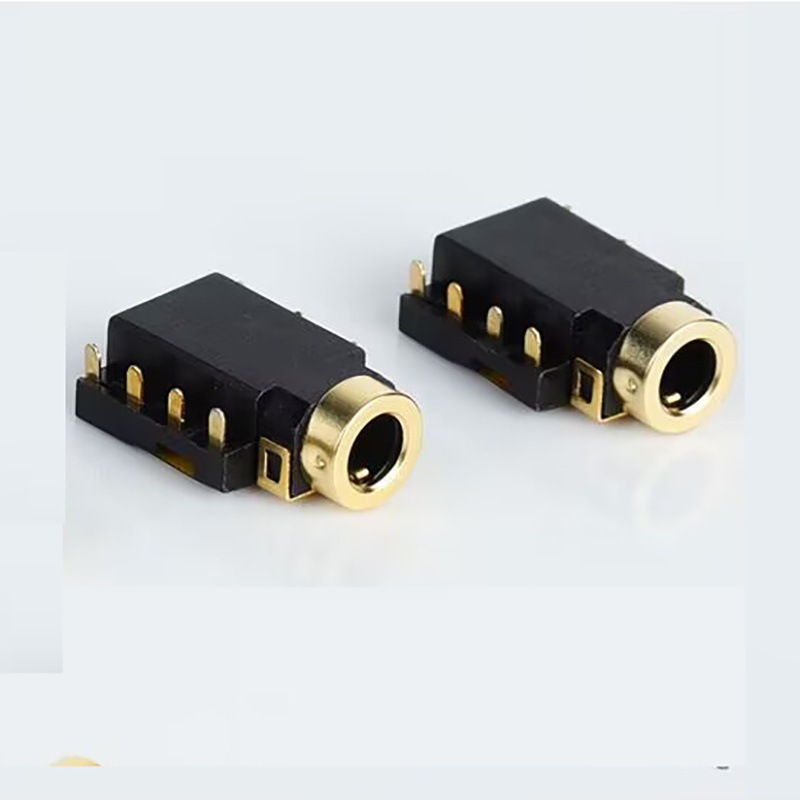

3.5mm headphone audio socket AUDIO JACK with copper head gold-plated
|
Phone jack |
Specification |
|
Rating |
1A 30V DC |
|
Contact resistance |
100mΩ max |
|
Insulation resistance |
100MΩ min at500V DC |
|
Dielectric strength |
AC 500V for 1 min |
|
Lifespan |
10,000 Cycles |
|
Practical temperature range |
-25 to 85 degrees Celsius |
|
RoHS |
Yes |
|
[Warm Tips] All informations above are for reference only; Particulars of all items are base on individual specification. |
|
