Quick Details
-
Jacket:
-
PVC or PE
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Huadong cable
-
Model Number:
-
(N)HXH FE180/E30 0.6/1kv 1/2/3/4/5 cores DIN VDE
-
core:
-
1 core, 2 core,3 core,4 core,5 core
-
Voltage:
-
0.6/1
-
conductor material:
-
copper or Aluminum
-
high temperature:
-
90 °C
-
Delivery:
-
in short time
-
Provider:
-
factory
-
insulation:
-
XLPE
-
Brand name:
-
Huadong Cable for cable price
-
item name:
-
(N)HXH FE180/E30 0.6/1kv 1/2/3/4/5 cores DIN VDE
-
Standard:
-
GB12706,GB12666,IEC60502,IEC60331
Quick Details
-
Insulation Material:
-
Xlpe
-
Application:
-
Construction
-
Conductor Material:
-
Aluminium or Copper
-
Jacket:
-
PVC or PE
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Huadong cable
-
Model Number:
-
(N)HXH FE180/E30 0.6/1kv 1/2/3/4/5 cores DIN VDE
-
core:
-
1 core, 2 core,3 core,4 core,5 core
-
Voltage:
-
0.6/1
-
conductor material:
-
copper or Aluminum
-
high temperature:
-
90 °C
-
Delivery:
-
in short time
-
Provider:
-
factory
-
insulation:
-
XLPE
-
Brand name:
-
Huadong Cable for cable price
-
item name:
-
(N)HXH FE180/E30 0.6/1kv 1/2/3/4/5 cores DIN VDE
-
Standard:
-
GB12706,GB12666,IEC60502,IEC60331

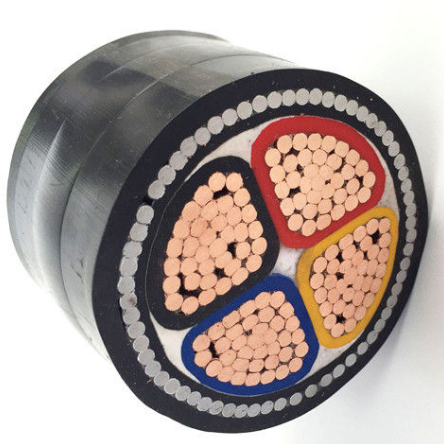

(N)HXH FE180/E30 0.6/1kv 1/2/3/4/5 cores DIN VDE copper conductor XLPE Insulated armored PVC sheath power cable
(N)HXH FE180/E30 0.6/1kv 1/2/3/4/5 cores DIN VDE copper conductor XLPE Insulated armored PVC sheath power cable
Single of multi-wire conductors of plain copper wires, PVC core insulation, cores twice concentrically according to VDE 0293, common core sheathing, outer sheath of PVC standard colour black, flame retardant.
Technical Data
- Minimum bending radius for single core : 15 x outer diameter
- Minimum bending radius for multi core : 12 x outer diameter
0.6/1kv power cable yjv :
According to VDE 0295 / IEC 60228
- re = round conductor, single wire
- rm = round conductor, multi wire
- sm = sectorial conductor
(N)HXH FE180/E30 0.6/1kv 1/2/3/4/5 cores DIN VDE copper conductor XLPE Insulated armored PVC sheath power cable
1. wooden drum, Iron wooden drum or as your request
2. the long & wide & high of 20 size container:5.95*2.32*2.3 meter.
3. the long & wide & high of 40 size container:11.9*2.32*2.72.
(N)HXH FE180/E30 0.6/1kv 1/2/3/4/5 cores DIN VDE copper conductor XLPE Insulated armored PVC sheath power cable
Large production capacity, short delivery.
Strict QC checking before delivery.
OEM/ODM service available, help you on designing.
Prompt quotation for your inquiry.
More than 10 years experiences in cable and wire field.
Professional connector and cable manufacturer, with good quality and competitive price.
free samples are available for further evaluation and you are highly welcome to visit our factory anytime!!
