Quick Details
-
Production Capacity:
-
1000m2
-
Place of Origin:
-
China, Shandong, China
-
Voltage:
-
380V 50HZ 3Phase,changable
-
Weight:
-
1800 kg
-
Marketing Type:
-
Best selling
-
Working Table Size(mm):
-
1800x1500mm
-
Machine Type:
-
CNC Router
-
Number of Axes:
-
3
-
Weight (KG):
-
1800
-
Brand Name:
-
blue elephant
-
Product name:
-
Heavy Duty stone engraving machine
-
Application:
-
stone
Quick Details
-
Type:
-
Stone Engraving Machine
-
Power:
-
9kw
-
Cutting thickness (max):
-
400mm
-
Production Capacity:
-
1000m2
-
Place of Origin:
-
China, Shandong, China
-
Voltage:
-
380V 50HZ 3Phase,changable
-
Weight:
-
1800 kg
-
Marketing Type:
-
Best selling
-
Working Table Size(mm):
-
1800x1500mm
-
Machine Type:
-
CNC Router
-
Number of Axes:
-
3
-
Weight (KG):
-
1800
-
Brand Name:
-
blue elephant
-
Product name:
-
Heavy Duty stone engraving machine
-
Application:
-
stone
Products Description

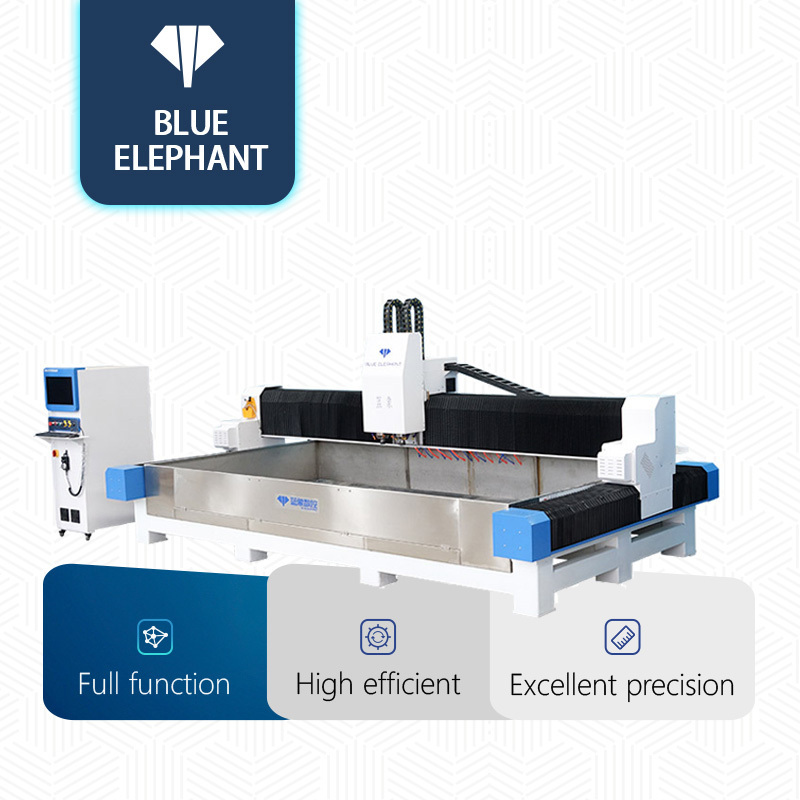

Dual process 1530 cnc stone engraving machine marble quartz stone edging and engraving for making kitchen worktops
This two-process stone processing center has many advantages. Such as small footprint, low investment cost, and high utilization of personnel and equipment. It can help users realize the processing functions of edging and engraving. It is suitable for users who have a small amount of engraving needs.
Features
2.One-key operation can switch the edging function and engraving function of countertops , which is easy to operate. 3.This machine can realize fast tool change in 3 seconds, with more powerful functions and higher processing efficiency.
4.According to processing requirements, the two spindles can automatically switch. This reduces tool change time and wastes, and improves processing efficiency.
4.According to processing requirements, the two spindles can automatically switch. This reduces tool change time and wastes, and improves processing efficiency.
Product Paramenters
|
ELECNC1530
|
|
|
|
Working travel
|
X,Y axis travel 1500*3000mm, option: 1300*2500mm; 2100*3000mm; 2100*4000mm, etc
Z axis travel 200mm, option: 300mm, 400mm，etc
|
|
|
Spindle type
|
5.5kw water cooling spindle*2,
|
|
|
Inverter type
|
5.5kw inverter
|
|
|
Control system
|
Weihong 95A-3L controller
|
|
|
Driving system
|
1.5kw servo motor and driver
|
|
|
Reducer
|
Japan Shimpo reducer
|
|
|
Machine structure
|
Heavy duty body with quenching treatment
|
|
|
Work table
|
Stone special working table
|
|
|
Linear guide
|
TaiwanLinear guide
|
|
|
Transmission
|
X,Y axis: Taiwan Helical Rack and Pinion
Z axis:Taiwan TBI high precision ball screw
|
|
|
Lubrication system
|
automatic lubrication system
|
|
|
Tool calibration
|
Autotool sensor calibration
|
|
|
Cables
|
Germany Igus cables with CE, cUL certificate
|
|
|
Working voltage
|
380V 3PH 50HZ/ 60HZ
|
|
