Quick Details
-
Input:
-
2 * tuner inputs (DVB-C/T/ISDB-T switchable or DVB-S/S2/S2X; ATSC
-
DVB-C Input Frequency:
-
60 ~890 MHz
-
DVB-S Input Frequency:
-
950~2150MHz
-
ATSC Input Frequency:
-
54~858MHz
-
Descrambling BISS Mode:
-
Mode 1, Mode E
-
Output (per demodulation module):
-
1xASI mirrored out of MPTS, BNC interface
-
Dimension:
-
482*300*44mm (WxLxH)
-
Environment:
-
0~45℃(work);-20~80℃(Storage)
-
Power requirements:
-
100~240VAC, 50/60Hz
-
Power consumption:
-
15W
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DAYTAI
-
Model Number:
-
DT-RMCC-9585-2)
-
Input:
-
2 * tuner inputs (DVB-C/T/ISDB-T switchable or DVB-S/S2/S2X; ATSC
-
DVB-C Input Frequency:
-
60 ~890 MHz
-
DVB-S Input Frequency:
-
950~2150MHz
-
ATSC Input Frequency:
-
54~858MHz
-
Descrambling BISS Mode:
-
Mode 1, Mode E
-
Output (per demodulation module):
-
1xASI mirrored out of MPTS, BNC interface
-
Dimension:
-
482*300*44mm (WxLxH)
-
Environment:
-
0~45℃(work);-20~80℃(Storage)
-
Power requirements:
-
100~240VAC, 50/60Hz
-
Power consumption:
-
15W
Product Description

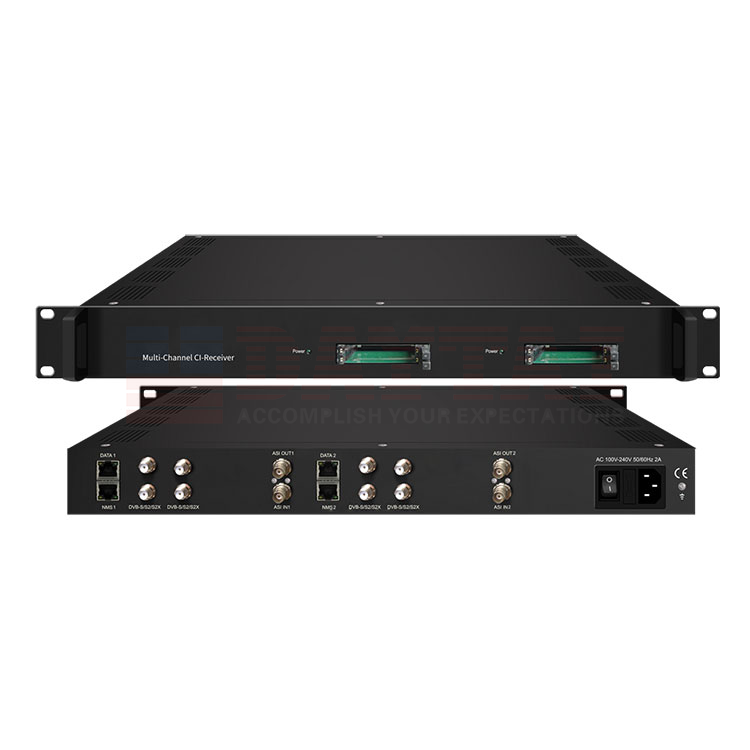

Digital TV Headend 2Way Multi-Channel CI-Receiver,(DT-RMCC-9585-2) is a DAYTAI’s new design which integrates demodulation and de-scrambler in one case to convert RF signals into TS output after re-mux.It is a 1-U case which supports Max 2 demodulation modules. The 2 CAMs/CIs accompanied in each demodulation module can decrypt programs inputting from encrypted RF, ASI and IP. The CAM requires NO unsightly external power cords, cables, or additional remote control device.BISS function is also embedded to descramble programs from any input.To meet customers’ various requirements, Each demodulation module of DT--RMCC-9585-2 is also equipped with 1 ASI in and 16 IP inputs for re-mux, and output 1 MPTS and 16 SPTS with 1 ASI out port and 1 data port.Power Plug:European standard Plug or American standard Plug is optional.
Feature
⊙ Updates via web
⊙ Support BISS descrambling
⊙ Support maximum 256 PID mapping
⊙ Best quality and breakthrough price
⊙1 ASI & 16 IP (UDP/RTP) inputs for re-mux
⊙ Remote control and Firmware, web NMS management
⊙ One CAM can decrypt multiple programs from Tuners/ASI/IP
⊙ IP (1 MPTS & 16 SPTS) over UDP and RTP output; ASI out for MPTS
⊙ 2 or 4 Tuner (DVB-C/T/ISDB-T switchable or DVB-S/S2/S2X or ATSC optional) inputs for each demodulation module
⊙ Support BISS descrambling
⊙ Support maximum 256 PID mapping
⊙ Best quality and breakthrough price
⊙1 ASI & 16 IP (UDP/RTP) inputs for re-mux
⊙ Remote control and Firmware, web NMS management
⊙ One CAM can decrypt multiple programs from Tuners/ASI/IP
⊙ IP (1 MPTS & 16 SPTS) over UDP and RTP output; ASI out for MPTS
⊙ 2 or 4 Tuner (DVB-C/T/ISDB-T switchable or DVB-S/S2/S2X or ATSC optional) inputs for each demodulation module
Specification
|
Item
|
Specification
|
|
|
|
|
||||
|
Input
|
2 or 4* tuner inputs (DVB-C/T/ISDB-T switchable or DVB-S/S2/S2X or ATSC optional), F type
1*ASI input for re-mux, BNC interface 16*IP input for re-mux (UDP/RTP) |
|
|
|
|
||||
|
Tuner Section
|
Multi-mode tuners switchable
|
DVB-C
|
Input Frequency
|
60 ~890 MHz
|
|
||||
|
|
|
|
Standard
|
J.83A, J.83C
|
J.83B
|
||||
|
|
|
|
Constellation
|
16/32/64/128/256 QAM
|
64/256 QAM
|
||||
|
|
|
DVB-T/(T)
|
Input Frequency
|
60 ~890 MHz
|
|
||||
|
|
|
|
Bandwidth
|
6/7/8 M
|
|
||||
|
|
|
ISDB-T
|
Input Frequency
|
60 ~890 MHz
|
|
||||
|
|
DVB-S/S2/S2X Tuner
|
DVB-S
|
Input Frequency
|
950~2150MHz
|
|
||||
|
|
|
|
Symbol rate
|
0.5~45Msps
|
|
||||
|
|
|
|
Signal Strength
|
- 65- -25dBm
|
|
||||
|
|
|
|
FEC
|
1/2, 2/3, 3/4, 5/6, 7/8
|
|
||||
|
|
|
|
Constellation
|
QPSK
|
|
||||
|
|
|
|
Max input bitrate
|
≤129 Mbps
|
|
||||
|
|
|
DVB-S2
|
Input Frequency
|
950~2150MHz
|
|
||||
|
|
|
|
Symbol rate
|
QPSK/8PSK /16APSK: 0.5~45 Msps
32APSK: 0.5~40Msps; |
|
||||
|
|
|
|
FEC
|
QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10 |
|
||||
|
|
|
|
Constellation
|
QPSK, 8PSK, 16APSK, 32APSK
|
|
||||
|
|
|
|
Max input bitrate
|
≤170 Mbps
|
|
||||
|
|
|
DVB-S2X
|
Input Frequency
|
950~2150MHz
|
|
||||
|
|
|
|
Symbol rate
|
QPSK/8PSK /16APSK: 0.5~45 Msps
8APSK: 0.5~40Msps 32APSK: 0.5~40Msps |
|
||||
|
|
|
|
FEC
|
QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/20
8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 8APSK: 5/9-L, 26/45-L 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36, 2/3-L, 25/36, 13/18, 7/9, 77/90 32APSK: 3/4, 4/5, 5/6, 8/9, 2/3-L, 32/45, 11/15, 7/9 |
|
||||
|
|
|
|
Constellation
|
QPSK, 8PSK, 8APSK, 16APSK, 32APSK
|
|
||||
|
|
|
|
Max input bitrate
|
≤170 Mbps
|
|
||||
|
|
ATSC
|
|
Input Frequency
|
54~858MHz
|
|
||||
|
|
|
|
Bandwidth
|
6M
|
|
||||
|
|
|
|
Constellation
|
8 VSB
|
|
||||
|
Descrambling
|
CAM/CI Quantity
|
|
2 (per demodulation module)
|
|
|
||||
|
|
BISS Mode
|
|
Mode 1, Mode E
|
|
|
||||
|
Output (per demodulation module)
|
1*MPTS & 16*SPTS over UDP, RTP.
1000 Base-T Ethernet interface (unicast / multicast) |
|
|
|
|
||||
|
|
1×ASI mirrored out of MPTS, BNC interface
|
|
|
|
|
||||
|
System
|
Remote management
|
|
Web-server Management
|
|
|
||||
|
|
Language
|
|
English
|
|
|
||||
|
|
Upgrade
|
|
web management
|
|
|
||||
|
Miscellaneous
|
Dimension
|
|
482*300*44mm (W×L×H)
|
|
|
||||
|
|
Environment
|
|
0~45℃(work)；-20~80℃（Storage）
|
|
|
||||
|
|
Power requirements
|
|
100~240VAC, 50/60Hz
|
|
|
||||
|
|
Power consumption
|
|
15W
|
|
|
||||
|
Demodulation Module
|
Option 1
|
1*Demodulation module, 2 CAM/CI Slots
|
|
|
Option 2
|
2*Demodulation modules, 4 CAM/CI Slots
|
|
|
|
|
|
Tuner Input (per demodulation module)
|
Option 1
|
2*DVB-S/S2/S2X tuner
|
|
|
Option 2
|
2*DVB-C/T/T2/ISDB-T tuner
|
|
|
Option 3
|
2*ATSC tuner
|
|
|
Option 4
|
4*DVB-S/S2/S2X tuner
|
|
|
Option 5
|
4*DVB-C/T/T2/ISDB-T tuner
|
|
|
Option 6
|
4*ATSC tuner
|
|
|
Option 7
|
2*DVB-S/S2/S2X tuner + 2*DVB-C/T/T2/ISDB-T tuner
|
|
|
Option 8
|
2*DVB-S/S2/S2X tuner + 2* ATSC tuner
|
|
|
Option 9
|
2*DVB-C/T/T2/ISDB-T tuner + 2*ATSC tuner
|
