Quick Details
-
Type:
-
Floor Spring
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JUSTOR
-
Model Number:
-
JU-68A
-
Certification:
-
CE Certification
-
Product Name:
-

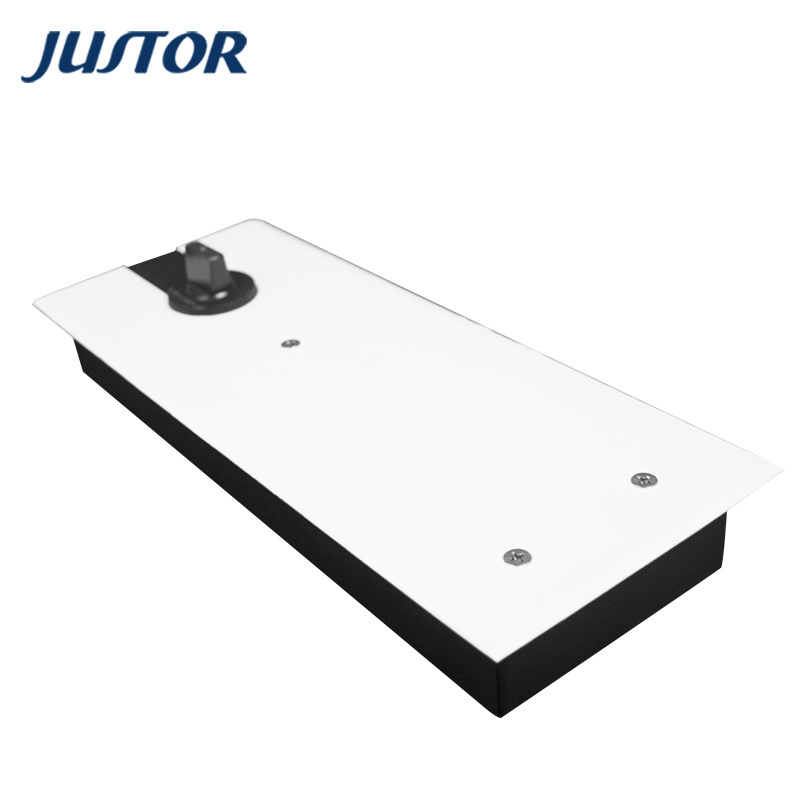

Floor Spring JU-68A
-
Life Cycles:
-
500,000 Times
-
Maximum Door Weight:
-
120kg
-
Maximum Door Width:
-
1150mm
-
Body material:
-
Iron Casting
-
Cover Material:
-
SUS304
-
Speed Control:
-
Latching and Closing
-
Hold-open angle:
-
90°
-
Maximum Open Angle:
-
115°
Quick Details
-
Warranty:
-
1 Year
-
Project Solution Capability:
-
graphic design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Office Building
-
Type:
-
Floor Spring
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JUSTOR
-
Model Number:
-
JU-68A
-
Certification:
-
CE Certification
-
Product Name:
-
Floor Spring JU-68A
-
Life Cycles:
-
500,000 Times
-
Maximum Door Weight:
-
120kg
-
Maximum Door Width:
-
1150mm
-
Body material:
-
Iron Casting
-
Cover Material:
-
SUS304
-
Speed Control:
-
Latching and Closing
-
Hold-open angle:
-
90°
-
Maximum Open Angle:
-
115°
Product introduction
|
Material
|
Iron And 304 Stainless Steel
|
|
Color
|
Senior Black
|
|
Max Door Width
|
≤1150mm
|
|
Max Door Weight
|
120kg
|
|
Max Opening Angle
|
≤115°
|
|
Net Weight
|
5.2kg
|
|
Closing Force
|
15N.m
|
|
Dimension(L×W×H)
|
308×108×41mm
|
MORE PRODUCTS
COMPANY INTRODUCTION
WORKFLOW
CERTIFICATE
EXHIBITION
LABORATORY
The laboratory is set up with EN standard, which can carry out high and low temperature test, endurance life test, tensile test,salt spray test, load test, and meet the test work except fire prevention
The laboratory is set up with EN standard, which can carry out high and low temperature test, endurance life test, tensile test,salt spray test, load test, and meet the test work except fire prevention
