Self-adhesive Electric PDLC Film Smart Switchable Pravicy Glass Door Window Tint Intelligent Film
Technical Principle:

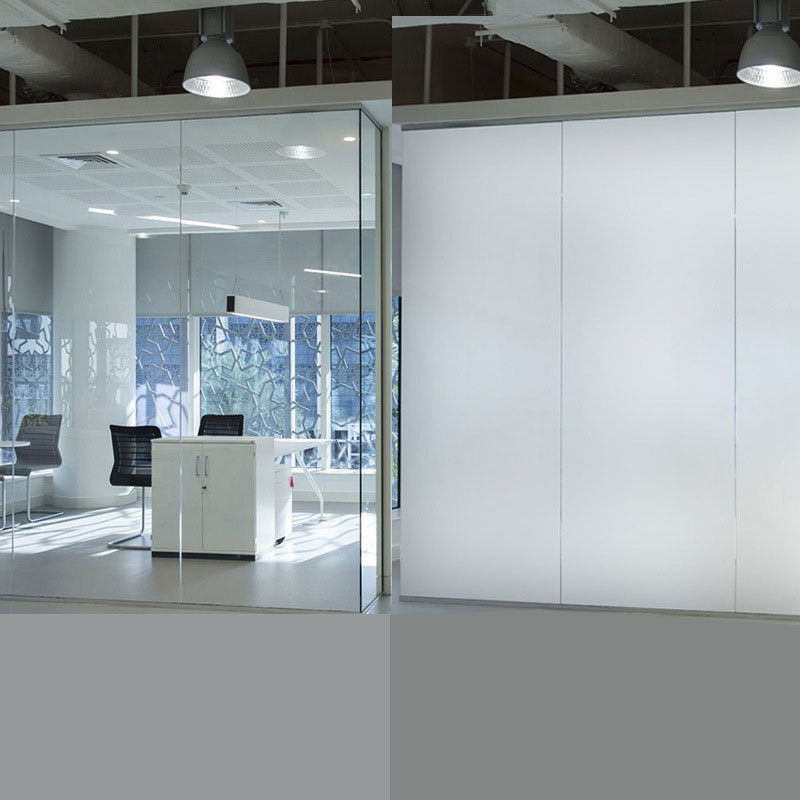

In the natural state, the liquid crystal molecules inside it are arranged randomly, the refractive index of liquid crystal is lower than that of the polymer outside, and the incident light scatters in the polymer and is milky white, that is, opaque.After electrification, the droplets in the dispersed liquid crystal polymer are rearranged, and the liquid crystal changes from disorder to directional order, so that the refractive index of the liquid crystal is the same as that of the polymer, and the incident light can completely pass through, forming a transparent state.
In the natural state, the liquid crystal molecules inside it are arranged randomly, the refractive index of liquid crystal is lower than that of the polymer outside, and the incident light scatters in the polymer and is milky white, that is, opaque.After electrification, the droplets in the dispersed liquid crystal polymer are rearranged, and the liquid crystal changes from disorder to directional order, so that the refractive index of the liquid crystal is the same as that of the polymer, and the incident light can completely pass through, forming a transparent state.
Intelligent dimming glass can be based on different occasions, such as mood, functional requirements can change the mood of the glass in a flash, the function such as demand can change glass appear a performance in - instantly, truly achieve the "the effect of light with me to move, it also is the magical thing about this state of the user can conveniently control switch, switch or remote control, slightly press can shape the privacy, effectively protect the individual privacy space.
Specification
|
Item
|
|
Mode
|
Specification
|
|
|
Optical Parameter |
Visible Light Transmittance
|
Power on
|
>83%
|
|
|
|
|
Power off
|
>53%
|
|
|
|
Parallel Light Tansmittance
|
Power on
|
75%
|
|
|
|
|
Power off
|
<2%
|
|
|
|
Haze |
Power on
|
<4%
|
|
|
|
|
Power off
|
>95%
|
|
|
|
Viewangle
|
Power on
|
>150°
|
|
|
Electrical Parameter |
Operating Voltage
|
Power on
|
AC48V-65V/ 50Hz
|
|
|
|
Response Time
|
Power off-on
|
<200ms
|
|
|
|
Power Dissipation
|
Power on-off
|
6-8 W/㎡
|
|
|
Size Parameter |
Thickness
|
0.38mm
|
|
|
|
|
Maximum Size
|
6000mm*2000mm
|
|
|
|
Operating Parameter |
Operating Temperature
|
-30°C-50°C
|
|
|
|
|
Storage Temperature
|
-40°C-70°C
|
|
|
|
Service Times
|
|
Power on
|
>12 years
|
|
|
Switching Times
|
|
|
>2 millions
|
|
